TMO-33920A
TMO-33921A
12 H.P. 38" LAWN TRACTORS

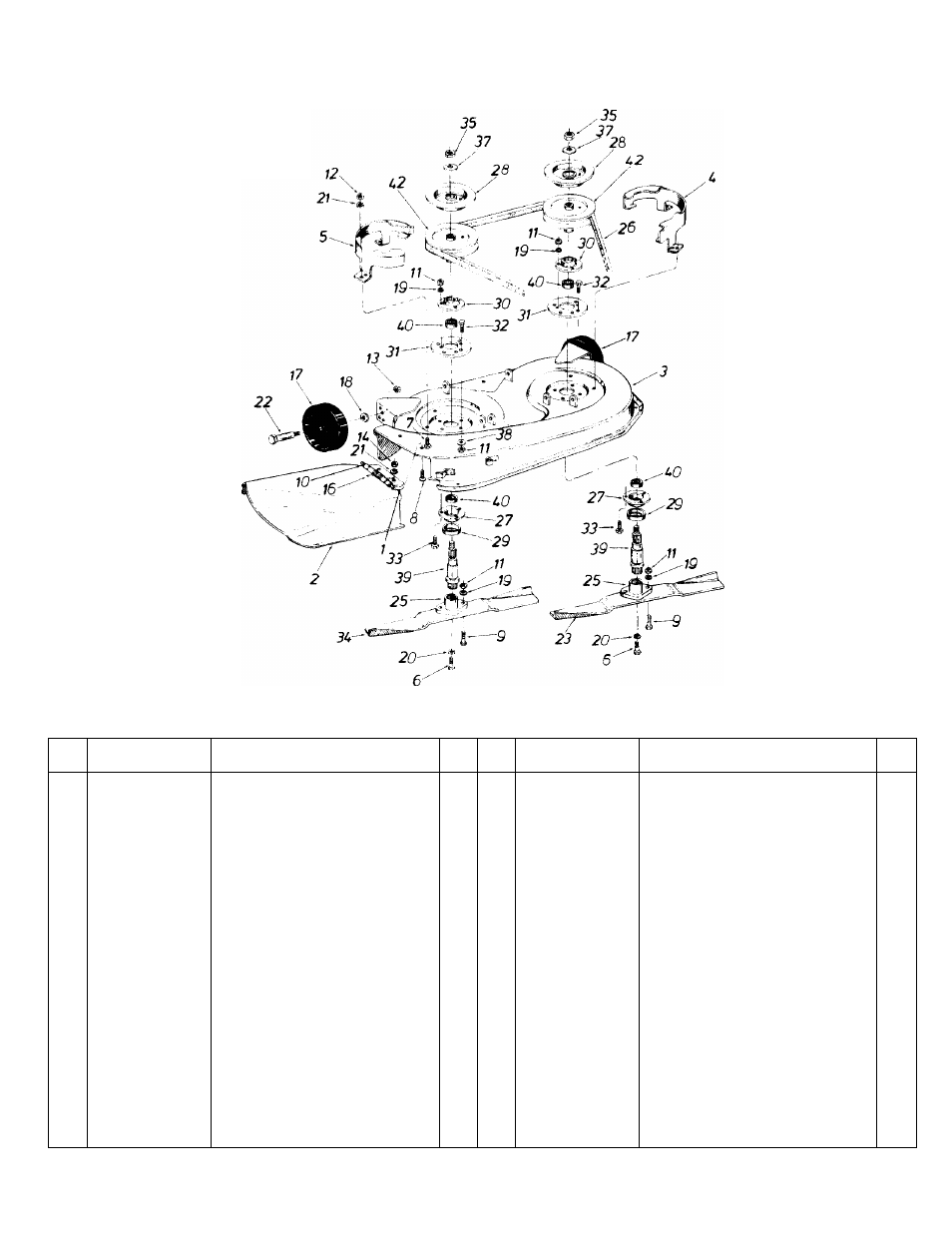

PARTS LIST FOR MODELS TMO-33920A AND TMO-33921A
REF.
NO.
PART
NO.
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
DESCRIPTION
NEW
PART
1
16521
Chute Bracket
21
736-0329
L-Wash. 1/4" I.D.
2
16566
Chute Deflector
22
738-0373
Shid. Bolt .498" Dia. x 1.53"
3
16575
38" Deep Deck Ass’y.
23
742-0472
High-Lift Blade (L.H.)
801-6576
38" Deep Deck Ass'y- Comp.
25
748-0300
Blade Adapter
(For Service Only)
26
754-0329
5L V-Belt
4
16607
Belt Guard Deck—L.H.
27
08253
Bearing Housing 1.85" I.D.
5
16608
Belt Guard Deck—R.H.
28
09322
Brake Disc
6
710-0152
Hex Bolt 3/8-24 x 1.00"
29
13703
Bearing Shield
7
710-0195
Hex Bolt 1/4-28 x .62"
30
15296
Open Brg. Housing 1.85" I.D.
8
710-0255
Truss Mach. Scr. 1/4-20 x
31
16603
Spindle Meeting Plate
.75"
32
710-0157
Hex Bolt 5/16-24 X .75"
9
710-0888
Hex Scr. Special 5/16-24 x
33
710-0888
Hex Bolt Special 5/16-24 x
1.0"
1.0"
10
711-0792
Hinge Pin
34
742-0473
High-Lift Blade (R.H.)
11
712-0123
Hex Nut 5/16-24 Thd.
35
712-0318
Hex Jam Nut 5/8-18 Thd.
12
712-0138
Hex Nut 1/4-28 Thd.
37
736-0158
L-Wash. 5/8" I.D.
13
712-0181
Hex Top L-Nut 3/8-16 Thd.
38
736-0242
Bell-Wash. .345" I.D. x .88"
14
712-0298
Hex Jam Nut V4-20 Thd.
O.D.
16
732-0542
Torsion Spring
39
738-0707
Blade Spindle
17
734-0973
Deck Wheel—5"
40
741-0919
Ball Brg. .787" I.D. x 1.85"
18
736-0105
Bell-Wash. .40" I.D. x .88"
41
750-0456
Spacer 1.0" O.D. x .790" I.D.
19
736-0119
L-Wash. 5/16" I.D.
X
.350"
20
736-0217
L-Wash. 3/8" I.D.—H.D.
42
756-0486
5" Dia. Pulley
