steering
Wheel
Steering
Bellow

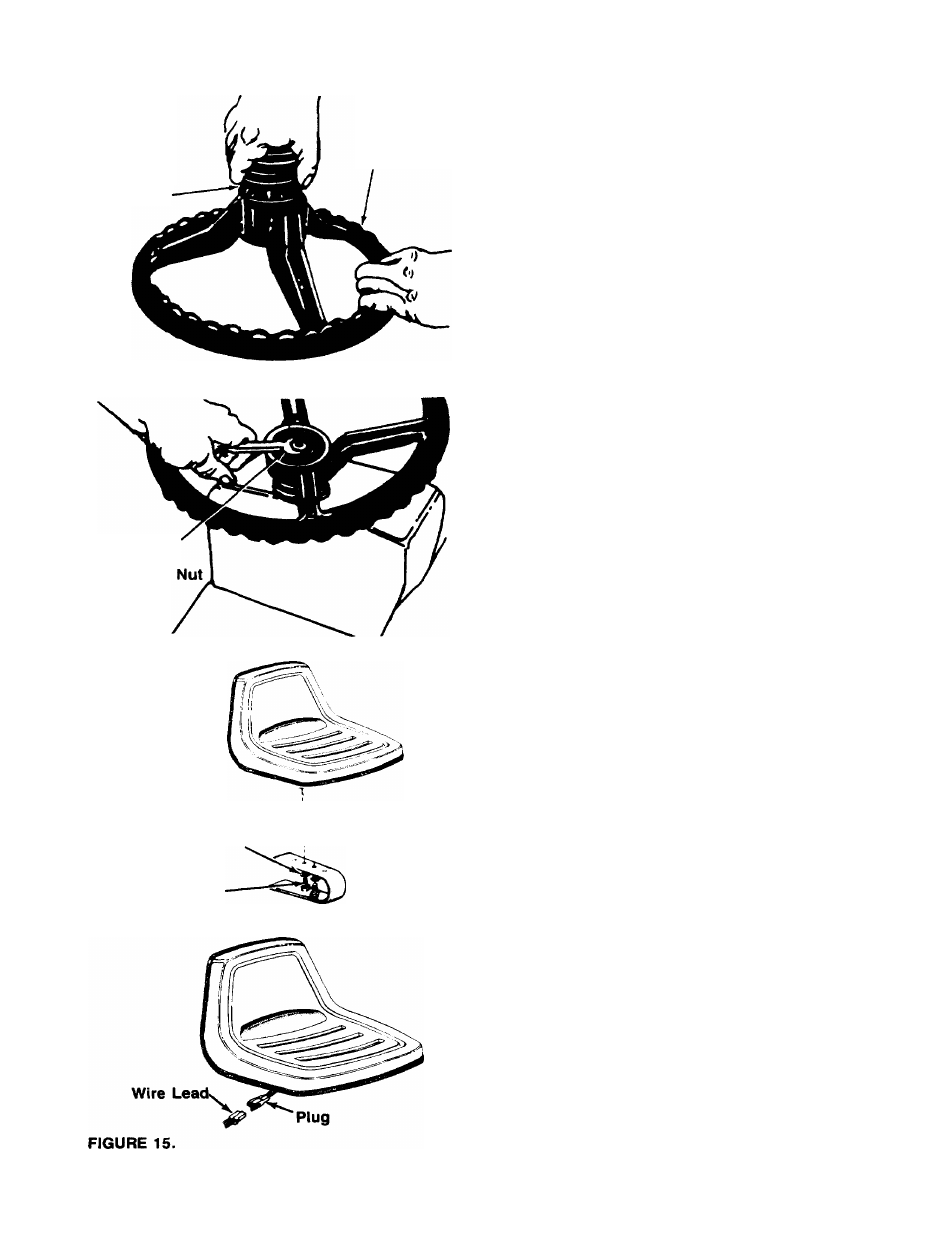

FIGURE 12.
Cupped
Washer
Hex Lock
FIGURE 13.
Two
Lock Washers
Two
Hex Bolts
FIGURE 14.
2. Attach one end of steering bellow to the steering
----- wheel as shown in figure 12.
3.
4.
Position the front wheels of the tractor so they are
pointing straight forward.
Place the steering wheel and steering bellow over
the steering shaft, positioning steering wheel as
desired.
5. Place the washer with the cupped side down over
the steering shaft. Secure with 5/16" hex lock nut.
—See figure 13.
6. Place the steering wheel cap over the center of the
steering wheel and seat it with your hand.
ATTACHING THE SEAT (Hardware C)
1.
The seat may be adjusted to three different posi
tions. Select desired position and secure to seat
spring with two hex bolts and lock washers. See
------- figure 14.
Plug the wire lead which is in the wire harness
beneath the seat into the plug on the wire lead ex
tending from the right hand side of the seat. See
-figure 15.
