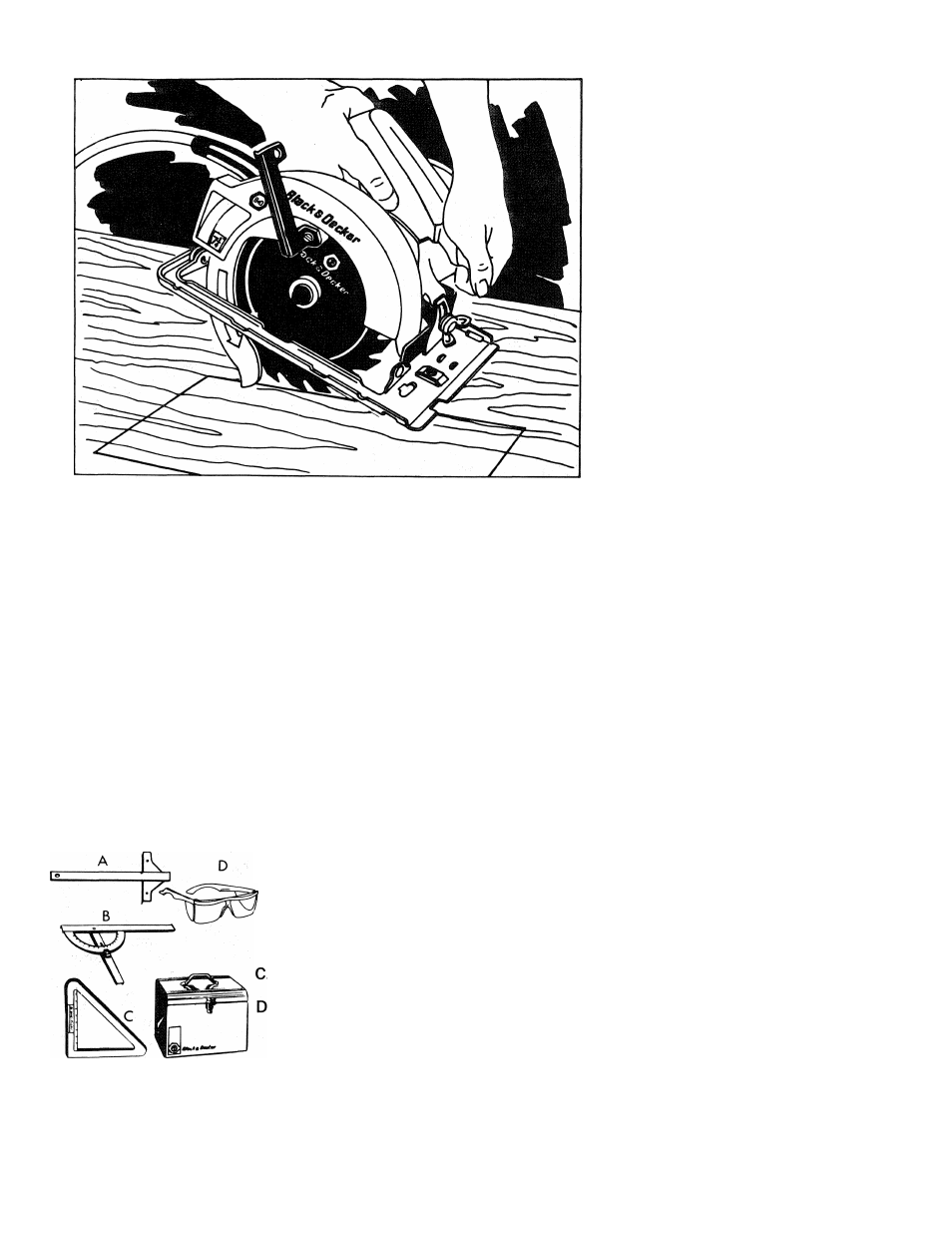

FIGURE 11
POCKET CUTTING
DISCONNECT SAW FROM POWER SUPPLY BEFORE MAKING CUTTING DEPTH
ADJUSTMENT! Set blade to desired cutting depth. Tilt saw forward and rest
front of shoe on material to be cut. Using the retracting lever, retract blade guard
to an upward position. Lower rear of shoe until blade teeth almost touch cutting
line. Now release the blade guard and its contact with the work will keep it in
position to open freely as you start the cut (Figure 11). Start the motor and
gradually lower the saw until its shoe rests flat on the material to be cut. Advance
saw along cutting line until cut is completed. Release trigger and allow blade to
stop completely before withdrawing the blade from the material. When starting
each new cut, repeat as above. Never tie the blade guard in a raised position.
ACCESSORIES
The accessories listed in this manual are available at extra cost from your local dealer
or Black & Decker Service Center. A complete listing of service centers is included
on the owner’s registration card packed with your tool.
If you need assistance in locating any accessory, please contact: Black & Decker (U.S.)
Inc., User Services Department, 10 North Park Drive, P.O. Box 857, Hunt Valley,
MD 21030-0857.
SAW CARRYING CASE
handy on the job.
RIP FENCE. . . Attaches to top of Saw shoe. Permits rip
cuts without penciled guide lines.
B. SAW PROTRACTOR. . . Guides Saw for accurate cut-off
work. Adjusts from 0° to 70°.
CUT-OFF GUIDE. . For 90° or 45° cuts.
SAFETY GLASSES. . . Lightweight, one-piece, impact resis­
tant, clear plastic safety glasses with side shields. Can be
worn directly over eyes or over prescription glasses.
Comfortable.
. Protect your saw, keep saw accessories and extra blades
CAUTION: Recommended accessories and saw blades for your Saw are listed
above and on the next page of this manual. The use of any other type of blade
or accessory might be hazardous.
10
