STEP 2 PREPARE CABINET FOR ELECTRICAL SUPPLY
• The electrical supply cable should
enter the cabinet at a height of
approx. 120mm from the base shelf
(see figure 3)and as close to the left
hand side wall of cabinet as
possible.
A metre "tail" from the back of the
cabinet
is
sufficient
to
allow
connection and any withdrawal.
Note - If too much cable is used, then
problems may occur when pushing
the appliance into the housing.

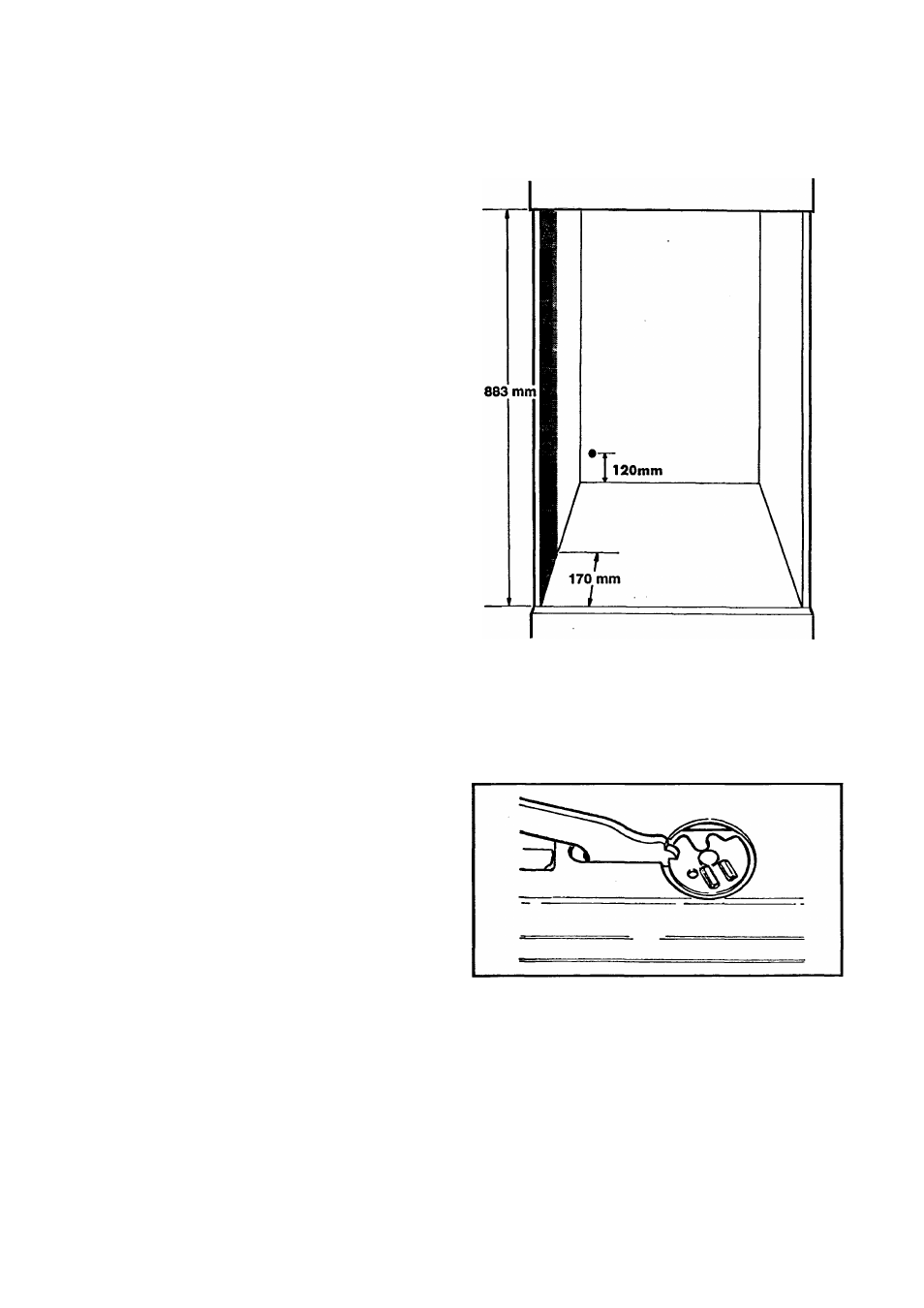

Figure 3 no projections 6 cable position
STEP 3 REMOVAL OF OVEN AND GRILL DOORS.
•
Open each door fully, turn both
hinge locking discs clockwise to the
locked position as shown in figure 4,
and slide out the inner glass.
•
Grasp the door adjacent to the
hinges and pull upwards and
forwards to remove.
Figure 4 locked position of hinges
