STEP 1
PREPARE CABINET
•
With the cabinet in its intended position, check the appliance base support shelf
is level, the cabinet sides are vertical and that the cabinet is firmly secured to
the rear wall.
•
Small inaccuracies in the cabinet can be dealt with by applying suitable shims,
providing that the dimensions shown in figure 1 are maintained. If the cabinet
is such that the appliance can not be installed level it must be rectified before
proceeding with the installation.
•
Remove all packaging from the appliance.
•

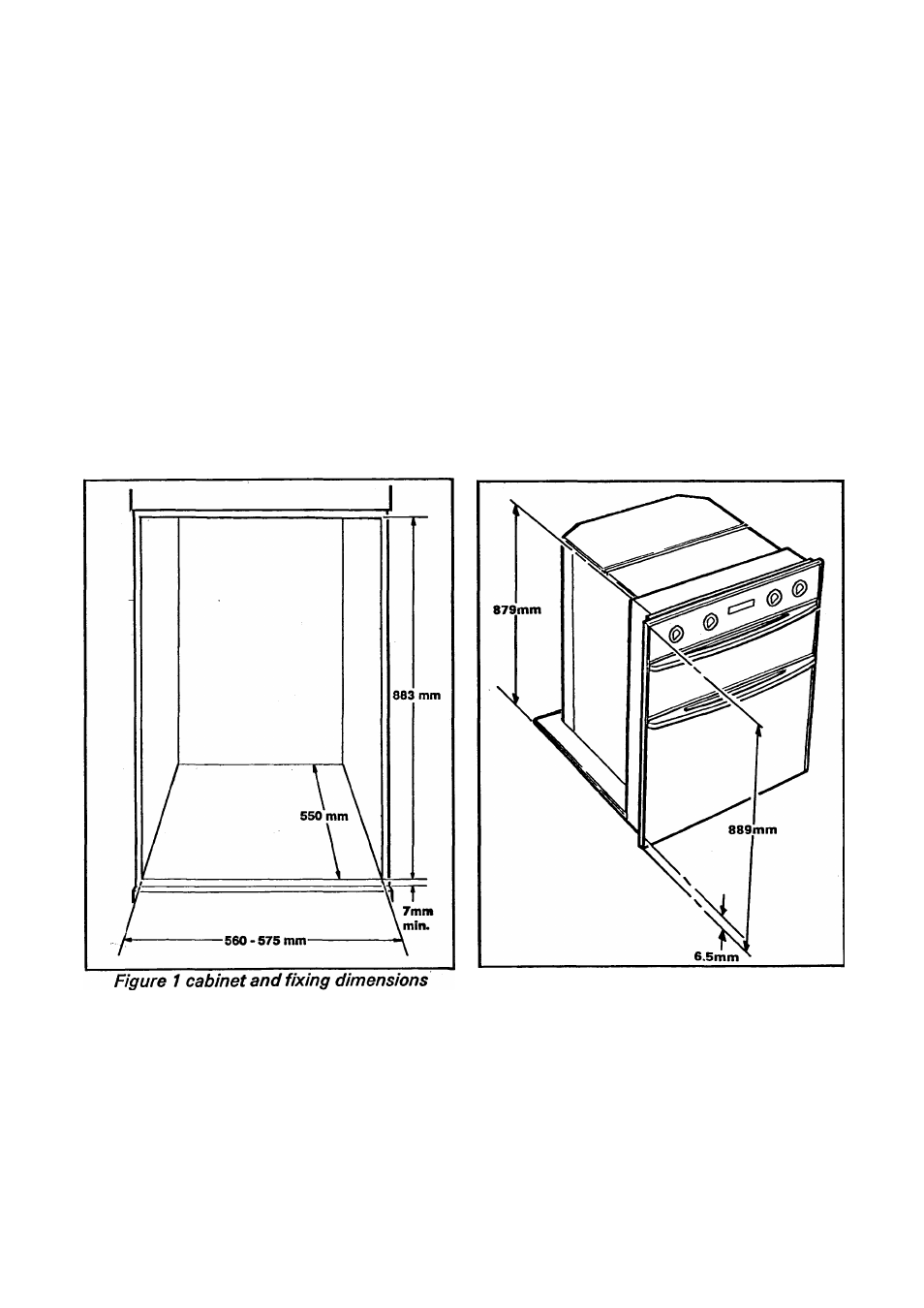

Figure 2 shows the critical appliance dimensions for fixing into the cabinet.
•
Note - Any projections within the cabinet must not encroach into an area between
0 and 883mm above the appliance base support shelf and 0 to 170mm from the
front edge of the cabinet on either side (see figure 3)
Figure 2 appliance dimensions
