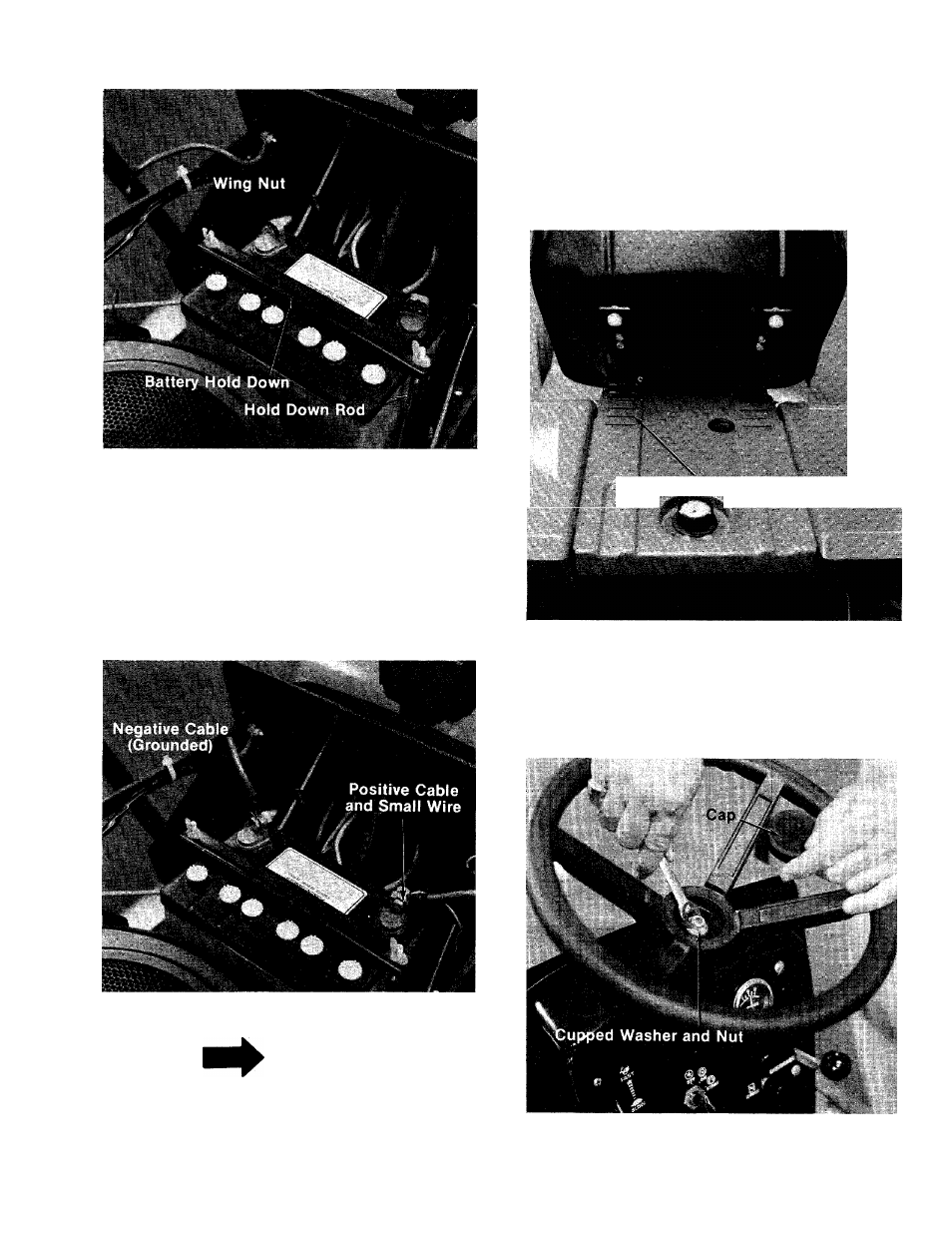

FIGURE 1.
3.
Attach the positive cable (from the starter
solenoid) and the small wire (from the circuit
breaker) to the positive battery terminal ( + )
with a V
4-20
X
3
/
4
" long bolt, lock washer and
hex nut.
4. Attach the negative cable (grounded) to the
negative battery terminal (-) with the other
1
/
4-20
X
3
/
4
" long bolt, lock washer and hex nut.
FIGURE 2.
NOTE
The vented battery allows any gases
or liquid from the battery to be car
ried to the rear of the tractor and on
to the ground.
SEAT ASSEMBLY
The seat can be adjusted to four positions. With
the seat tipped forward, hook the front of the seat
spring into the slots on the tractor frame. Allow
the seat to pivot backwards until it rests on the
rear of the springs. (See figure 3.)
Four Position Adjustment
FIGURE 3.
STEERING WHEEL
1. Place the steering wheel over the steering col
umn extending through the dash. Line up the
flats on the steering column with the flats in
the steering wheel. (See figure 4.)
FIGURE 4.
