6 • 4654870

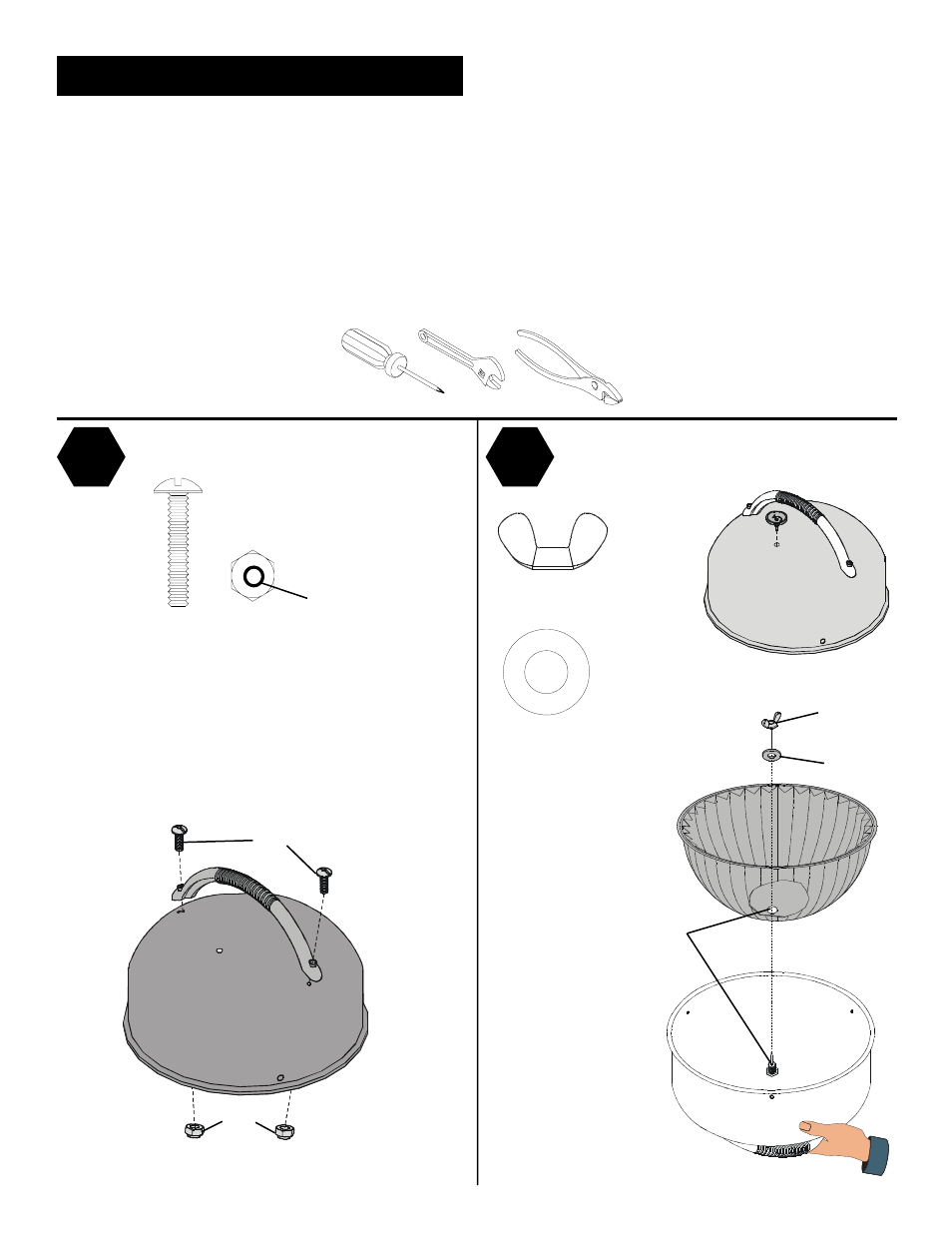

Before Beginning Assembly
s Remove all contents from box. Lay cardboard on the ground when unpacking, assemble grill parts on the cardboard to avoid
scratching surfaces.
s Carefully read and follow all assembly instructions, paying particular attention to parts orientation.
s Easily find fasteners by referring to each item (shown actual size) at the start of each step.
s Minimum tools...for assembly of your grill include screwdrivers (Phillips), adjustable wrench and pliers. A 3/8" nut driver would be
ideal.
#10 Bag
249
Nylon Insert
IMPORTANT:
Be sure all nuts are tightened securely at this time. You will be
unable to tighten these items once the insulation bowl is at-
tached.
302
249
Place temperature gauge. Hold it in place as you
turn the lid upside down.
Wing Nut
413
MISC Bag
IMPORTANT:
Be sure hole in top
insulation bowl is aligned
with temperature gauge.
Attach wing nut "DO NOT
TIGHTEN" until after Step 3.
Wing Nut
413
1 2
302
