Char-Broil 4654870 - Manual (Page 5)

4654870 • 5
KeyQty-- Description --------------------------------- Part#
A ----- 1 ----Briquets Bag ----------------------------------------- 4158125
B ----- 1 ----Base --------------------------------------------------- 4154381
C ----- 1 ----Lid Handle-------------------------------------------- 4154399
D ----- 1 ----Cooking Grate--------------------------------------- 4152860
E ----- 1 ----Element Assembly --------------------------------- 4159277
F ----- 1 ----Grill Bottom ------------------------------------------ 4509581
G ----- 1 ----Grill Lid ------------------------------------------------ 4509582
H ----- 1 ----Control Leg w/ Slot--------------------------------- 4302497
I ------ 1 ----Leg ----------------------------------------------------- 4302534
J ------ 1 ----Leg with Logo --------------------------------------- 4525611
K ----- 1 ----Temperature Gauge w/Wing Nut --------------- 4157142
L ----- 1 ----Controller --------------------------------------------- 4150235
M ----- 1 ----Leg Handle------------------------------------------- 4150357
N ----- 3 ----Lid Hangers ------------------------------------------ 4154245
O ----- 1 ----Grease Cup ------------------------------------------ 5156609
P ----- 1 ----Grease Clip ------------------------------------------ 5156610
Q ----- 1 ----Top Insulation Bowl -------------------------------- 4152826
R ----- 1 ----Bottom Insulation Bowl --------------------------- 4152827
S ----- 1 ----Briquet Grate ---------------------------------------- 4156128
#10 Fasteners Bag: 4254040
T ---- 12 ----#10-24 Hex Nut (keps) ---------------------------- 4080208
U ----- 2 ----#10 Lock Nut ---------------------------------------- 4080249
V ---- 14 ----#10-24 x 1" Machine Screw --------------------- 4080302
W ---- 6 ----#10-24 x 7/16 T- Nut ------------------------------- 4080094
Misc. Fasteners Bag: 4253860
X ----- 1 ----5/16 Flat Washer ----------------------------------- 4080413
Y ----- 2 ----Insulator Washer ----------------------------------- 4080418
Z ----- 5 ----#12-14 x 1/2" Self-tap Screw -------------------- 4080772

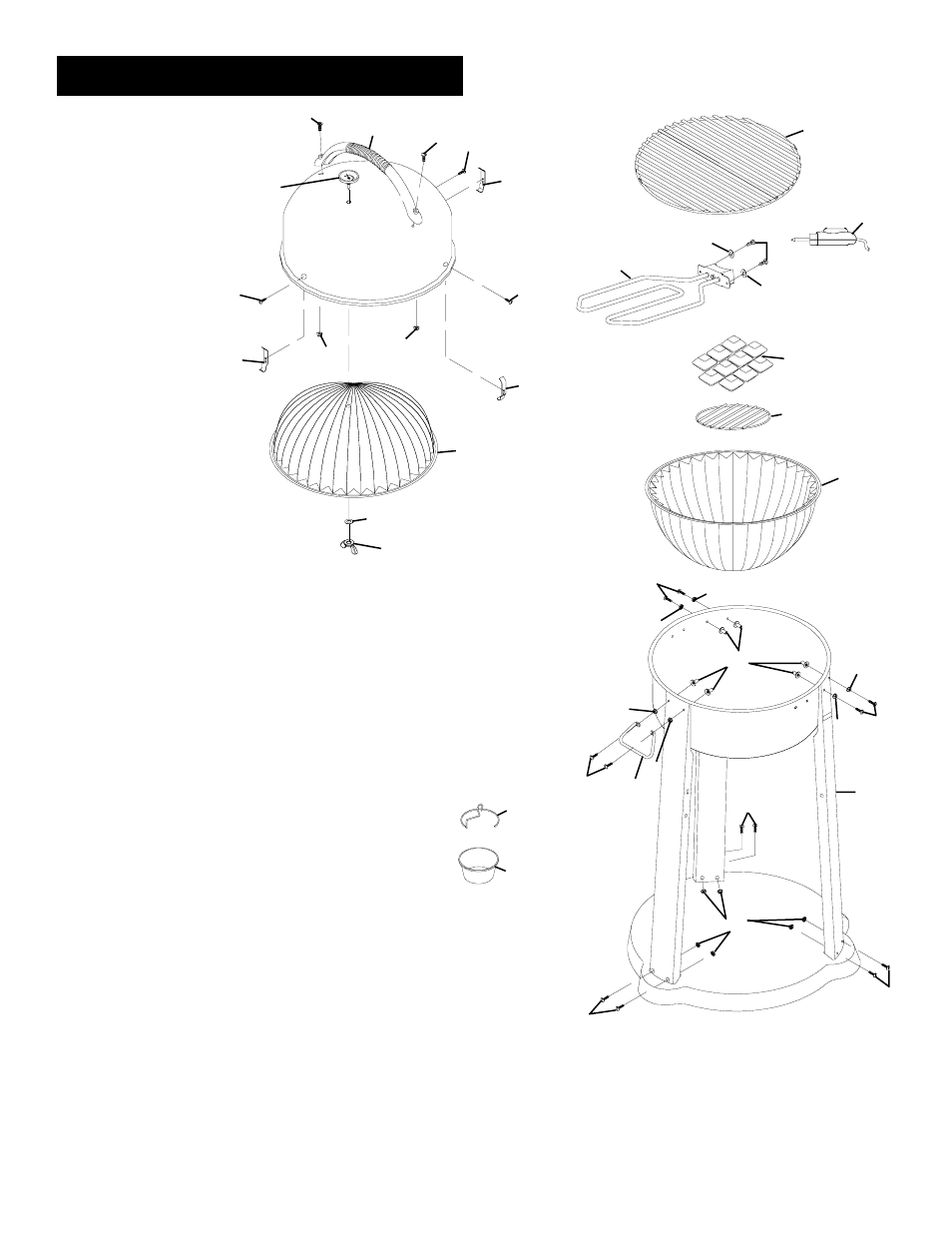

Parts List - Model 4654870
