Routing Example
Router B
(192.168.1.90) (192.168.2.70)
Router A
Segment 0
Segment 2
Segment 1
Wireless
Router
(192.168.0.xx)
(192.168.1.xx)
(192.168.0.100)
(192.168.0.1)
(192.168.2.xx)
(192.168.1.80)

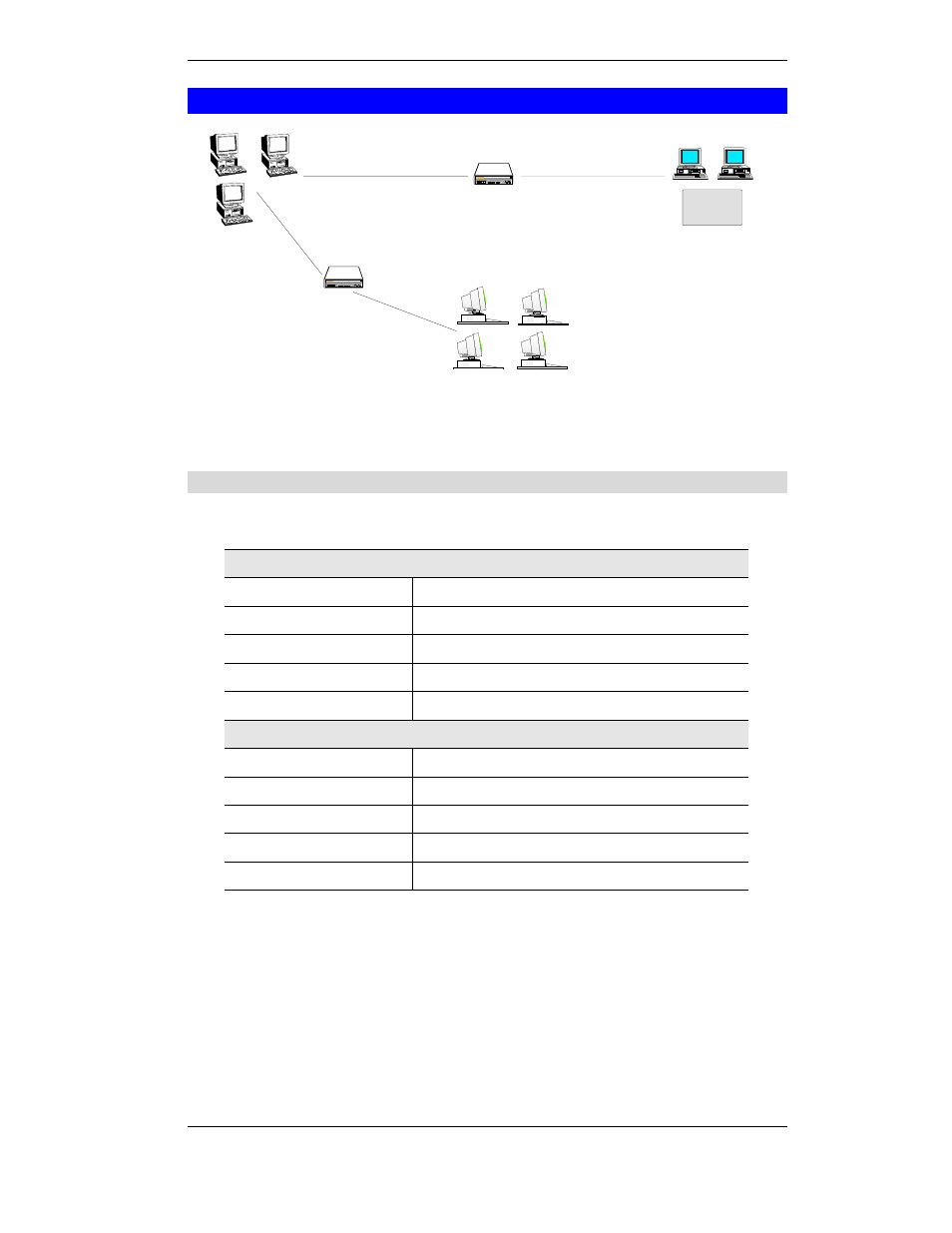

Figure 23: Routing Example
For the LAN shown above, with 2 routers and 3 LAN segments, the required entries would be
as follows.
For the CNWR-811P's Routing Table
The CNWR-811P requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP Address 192.168.1.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100 (CNWR-811P's local Router)
Interface LAN
Metric 1
Entry 2 (Segment 2)
Destination IP Address 192.168.2.0
Network Mask 255.255.255.0
Gateway IP Address 192.168.0.100
Interface LAN
Metric 2
