Bowflex Xtreme ® 2 SE Assembly Manual 17
Assembly Guide
step 18 Cable and Pulley Routing – Connect Pulleys and Cables to the Lat Pulley
Housing
Locate the following items for the Lat Pulley Housing assembly:
• (2) Pulleys from step 17
• 3/8” X 4 1/2” Hex Head Bolt – uninstalled in Step 17
• 3/8” Washer – uninstalled in Step 17
note: Connecting the Cables is much easier with a second persn assisting you .

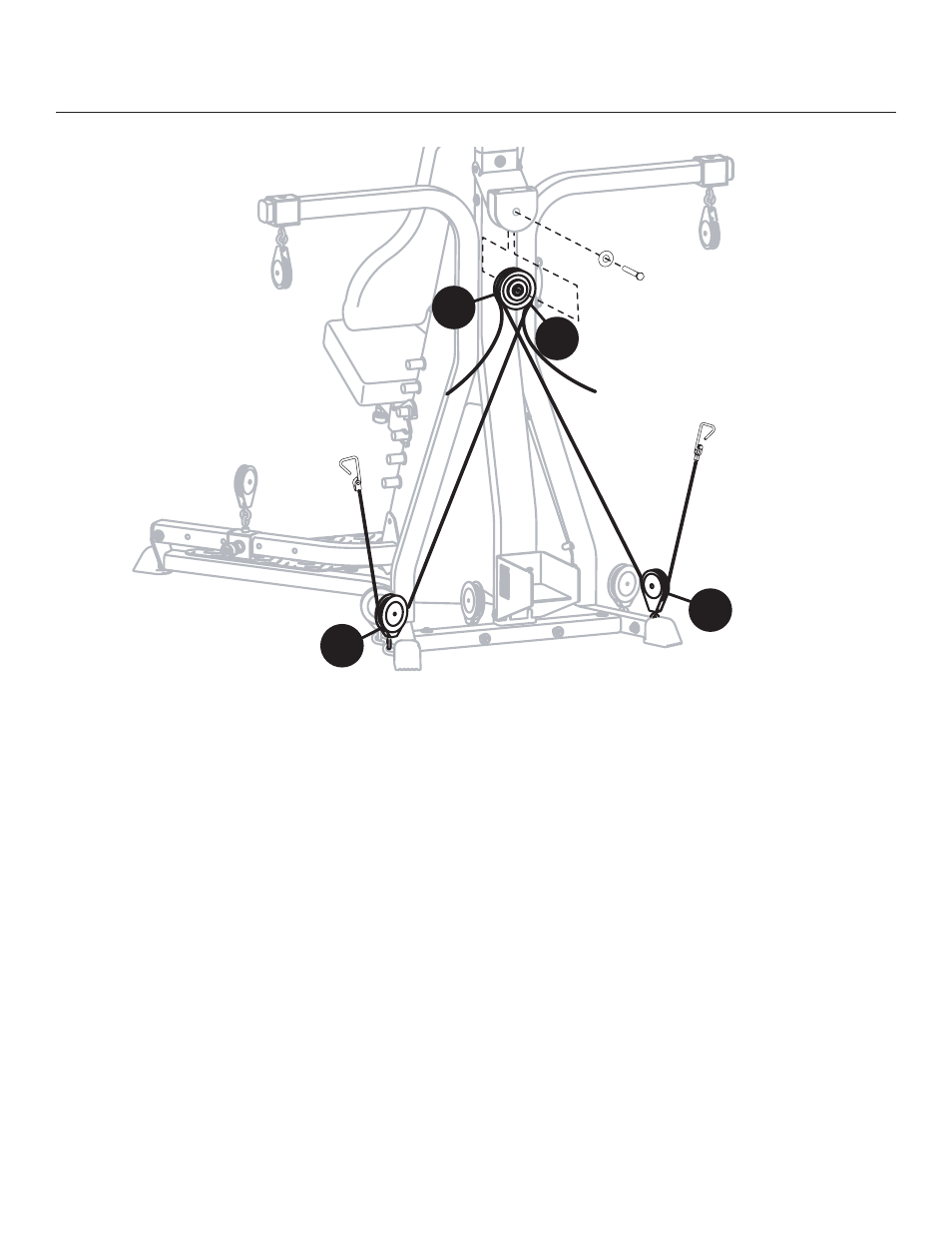

18-1 Holding both Cables from Step 17 in place, align the 2 Lat Pulleys as shown in Figure 18 . Slide the Pulleys
back into the Lat Pulley Housing, lining up the bolt holes in the Pulleys and Lat Pulley Housing.
18-2 Place the Washer over the 4 1/2” Bolt from Step 17. Slide the Bolt through the aligned holes in the Lat Pulley
Housing and Lat Pulleys as shown in Figure 18 .
tighten all hardware.
note: You will probably need to push the Power Rod ® unit out of the way for this step. The Power Rod ® unit is
not pictured for the sake of clarity.
2
2
1
1
