10 Bowflex Xtreme ® 2 SE Assembly Manual
step 9 Leg Extension Assembly
Parts:
• Leg Extension Backbone
• 2 Chrome Tubes
• 4 Foam Rollers
• 4 End Caps
tool: Rubber Mallet
9-1 Insert Chrome Tubes through the
upper hole and one of the lower
holes in the Leg Extension. (Select
hole for your comfort level .)
9-2 Slide Foam Rollers onto the
Chrome Tubes and secure with
end caps . A rubber mallet may be
needed to secure the end caps .
note: The Leg Extension may be adjusted
during workout to best suit your height
and personal preferences .

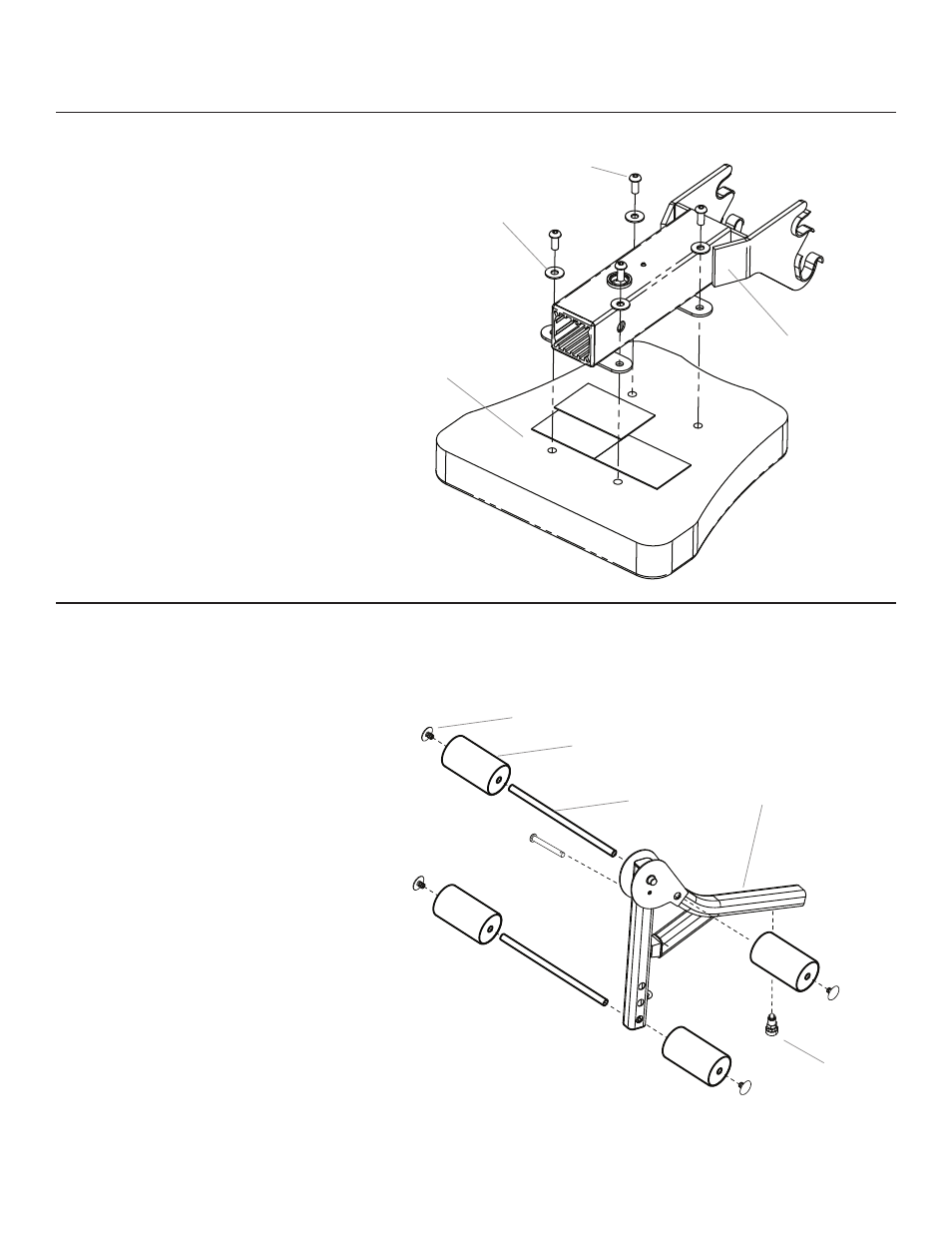

step 8 Seat Assembly
Parts:
• Seat Backbone
• Seat Bottom
Hardware:
• 4 Button Head Screws (5/16" X 3/4")
• 4 Washers (5/16")
tool: 3/16" Hex Wrench
8-1 Install the Seat Backbone to the
underside of the Seat Pad using screws
and washers as shown .
Button Head
Screws
Flat Washers
Seat Backbone
Seat Bottom
Leg Extension
Backbone
End Caps
Foam Rollers
Chrome Tubes
Assembly Guide
Lock Knob
