Bowflex Xtreme ® 2 SE Assembly Manual 7
Assembly Guide

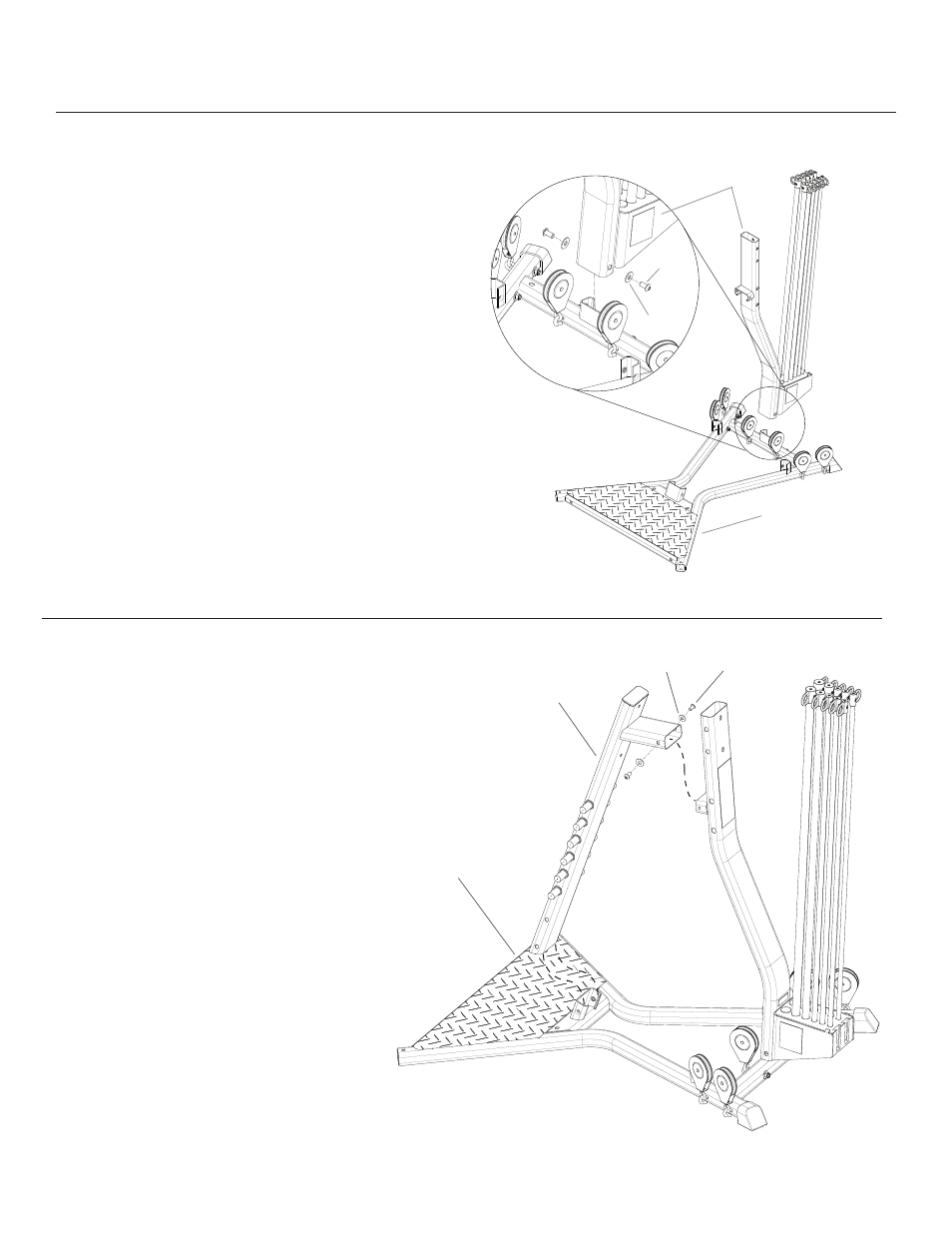

step 3 Install Lower Lat Tower Assembly
Parts:
• Lower Lat Tower Assembly
• Base Frame Assembly
Hardware:
• 2 Button Head Screws (3/8" X 3/4")
• 2 Flat Washers (3/8")
tool: 7/32” Hex Wrench
3-1 Align the Lower Lat Tower Assembly over
the Base Frame. Push the bottom of the Lower Lat
Tower onto the connector of the Rear Cross Member
as shown .
3-2 Secure Lower Lat Tower Assembly
using screws and washers as shown .
finger tighten screws at this time.
step 4 Install Seat Support Rail
Parts:
• Seat Support Rail
• Base Frame Assembly
Hardware:
• 2 Button Head Screws (3/8" X 3/4")
• 2 Flat Washers (3/8")
tool: 7/32" Hex Wrench
4-1 Slide the bottom of the Seat Support
Rail onto the Base Frame connector as
shown .
4-2 Slide the top of the Seat Support Rail
onto the Lower Lat Tower Assembly
connector as shown . Secure using
screws and washers
as shown .
finger tighten screws at this time.
Base Frame Assembly
Button
Head
Screw
Flat
Washer
Base Frame/
Lower Lat Tower
Assembly
Seat Support Rail
Flat
Washer
Button
Head
Screw
Lower Lat Tower
Assembly
