Bowflex Xtreme ® 2 SE Assembly Manual 15
Assembly Guide
step 16 Cable and Pulley Routing – Overview

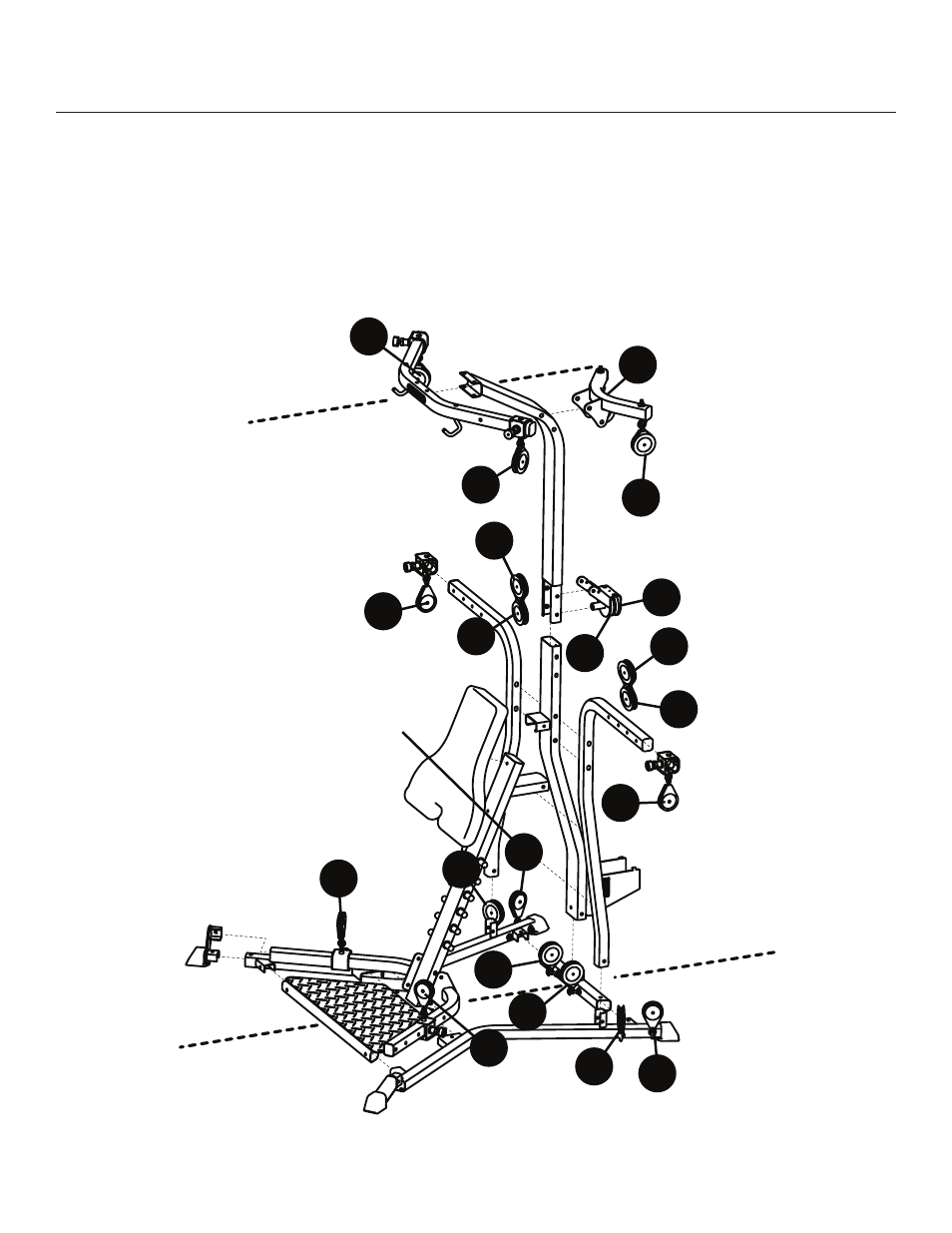

The figure below shows all Pulleys on the Bowflex Xtreme 2 SE home gym. Subsequent images show how to
connect and route each of the Cables through the Pulleys. (The Ab Crunch Station is not shown for clarity.)
Connecting the Cables is much easier with a second persn assisting you .
All references to the right or left of the machine are from the viewpoint of standing in front of the machine facing
the seat .
10
10
6
6
8
8
3
3
2
2
4
4
5
5
1
1
7
7
Center Line of
Machine
Center Line of
Machine
Center Line of
Machine
9
9
SQUAT/ARM
LEFT CABLE
(Cable wrapped
around 6 Pulley)
SQUAT/ARM
RIGHT CABLE
(Cable wrapped
around 6 Pulley)
Front
Rear
LEFT ROD
CABLE
(Cable wrapped
around 1 Pulley)
RIGHT ROD
CABLE
(Cable wrapped
around 1 Pulley)
