Power Linking
The product provides power linking via the Edison outlet located in the back of the unit.
Power Linking

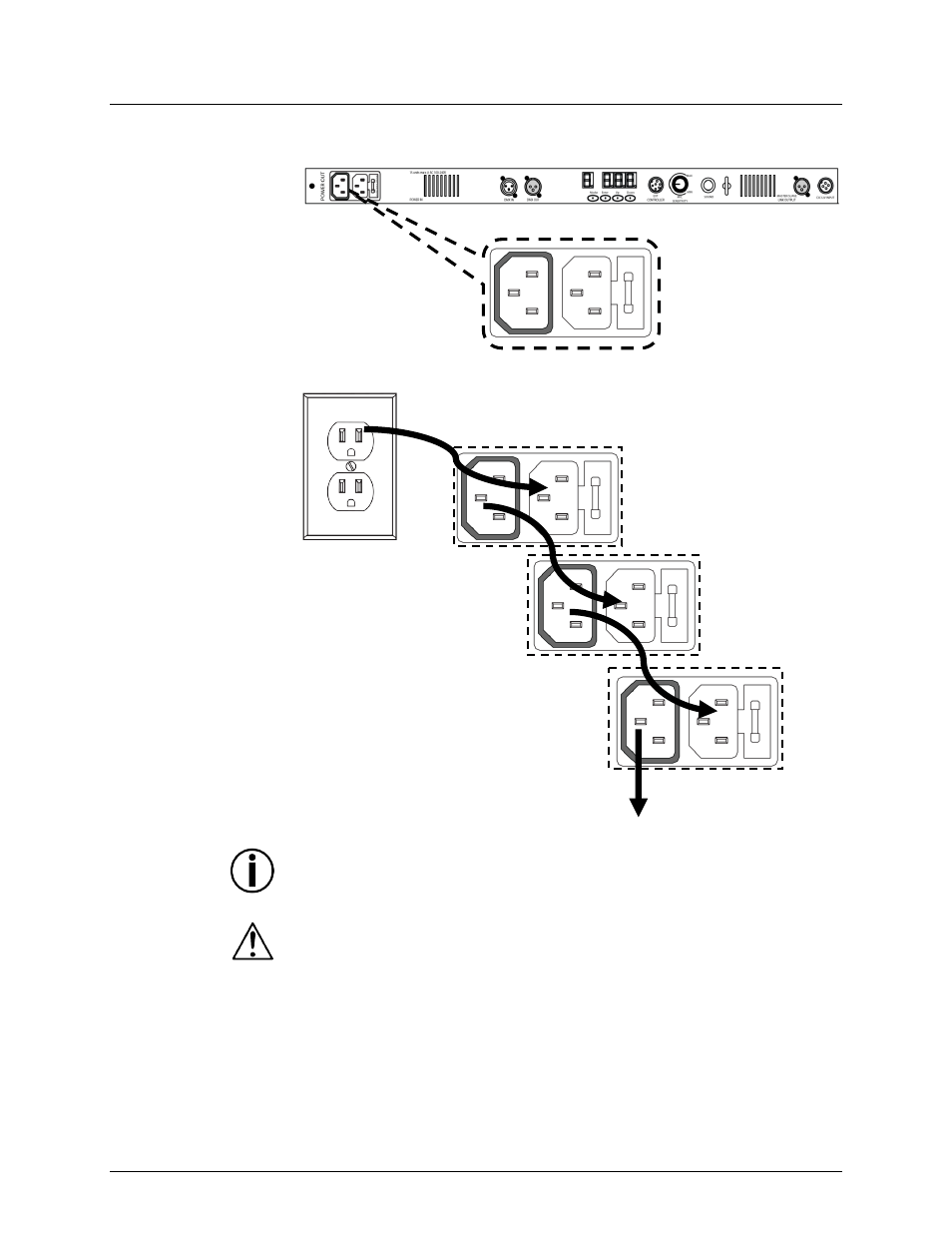

Diagram
You can power link up to 15 COLORstrip™ units on 120 VAC or up to 28
COLORstrip™ units on 230 VAC.
The power linking diagram shown above corresponds to the North American
version of the product ONLY! If using the product in other markets, you must
consult with the local CHAUVET® distributor as power linking connectors and
requirements may differ in your country or region.
1
st
Product
2
nd
Product
3
rd
Product
Other products
