ASSEMBLY
Assembly requires two people. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the two
included alien wrenches, assembly requires a phillips screwdriver
,
an adjustabie
wrench
a rubber mallet
c;
, and pliers

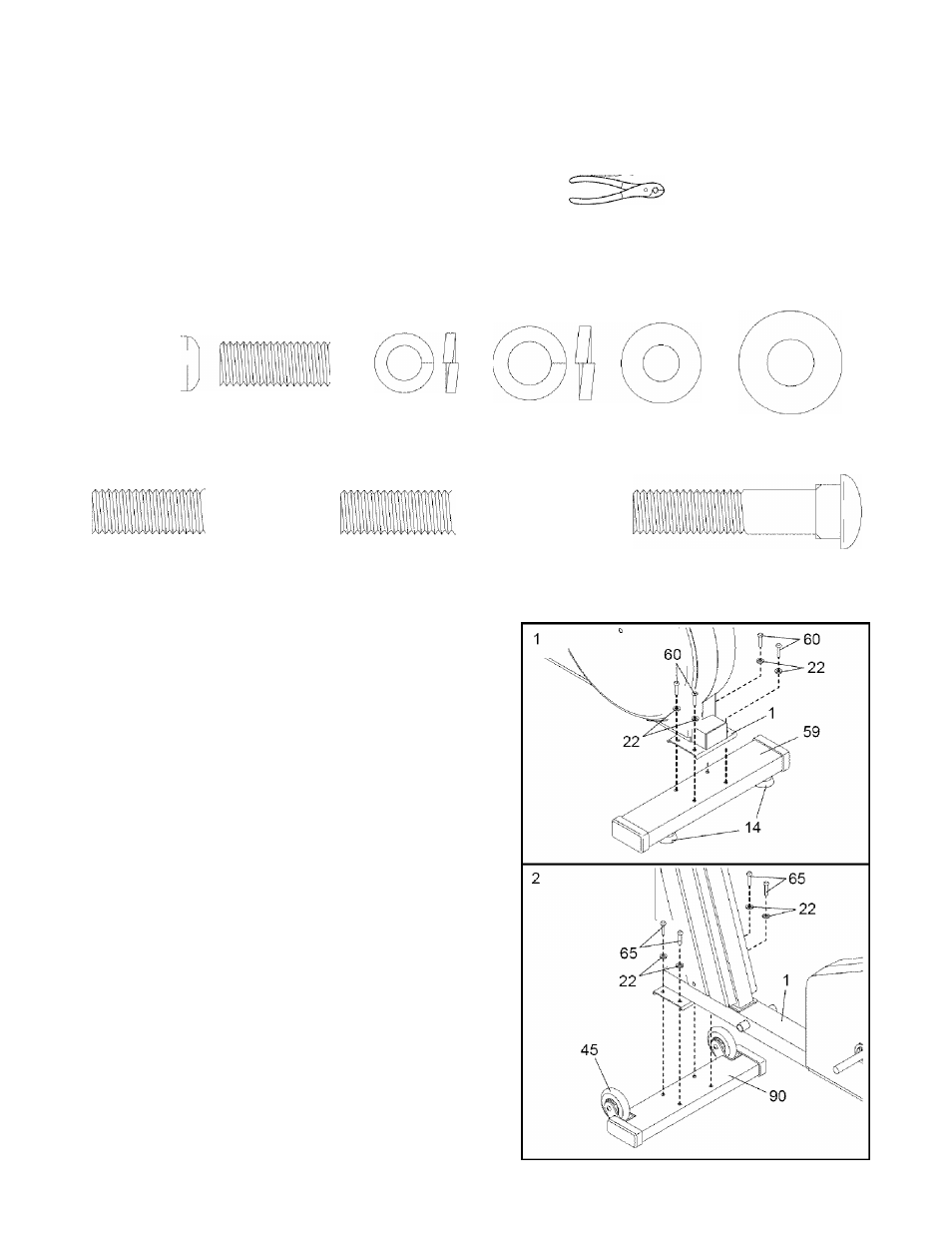

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-attached for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M8 X 19mm
Screw (30)-4
M10 X 25mm
Screw (102)-3
M8 Split
Washer (58)-4
M10 Split
Washer (22)-11
M8 Washer
(33)-4
MIO Washer
(63)-2
MIO
X
43mm Screw (65)-4
MIO
X
56mm Screw (60)-4
Ml 0
X
33mm Carriage Bolt (61 )-2
1. Identify the Rear Stabilizer (59), which has Leveling
Feet (14) threaded into it. Attach the Rear Stabilizer to
the Frame with the four M10 x 56mm Screws (60) and
four M10 Split Washers (22).
2. Attach the Front Stabilizer (90) to the Frame (1) with
the four M10 x 43mm Screws (65) and four MIO Split
Washers (22), Make sure that the Front Stabilizer is
turned so the Wheeis (45) are not touching the
floor.
