ASSFMBLY
Your new tractor has been
To ensure safe and proper
the
correct tools as necessary to insure proper tightness.
^
m a i m E D
for
/
/ (jcl-et >."'<^ri( t
- 1
* «!<
1
t.-.--r. ,iv I- , ir r Tict’ijHi'i
wr, nch -■ f. I .i'-r- !
!
) 7/'f • w » p'Ilf'
(I) ~'c <- r, t .vit'-dri'/feratchci
(
1
) 9/ie“wren*'h
Phillips F‘revdn'f r
( I i/T' wrericheo
im
ji*- ^jaJuG
Utility knife
When right or left hand is mentioned in this manual, it
means when you are in the operating position (seated
behind
the
steering wheel).
TO REMOVE TRACTOR FROM CARTON
UNPACK CARTOw
•
Remove -t'i arcf^isibie loose parts and parts cations
from carton
(See page 5).
•
Cut, from top to bottom, along lines on all four comers
of carton, and lay panels flat.
•
Check for any additional loose parts or cartons and
remove.
BEFORE ROLLING TRACTOR OFFSWD

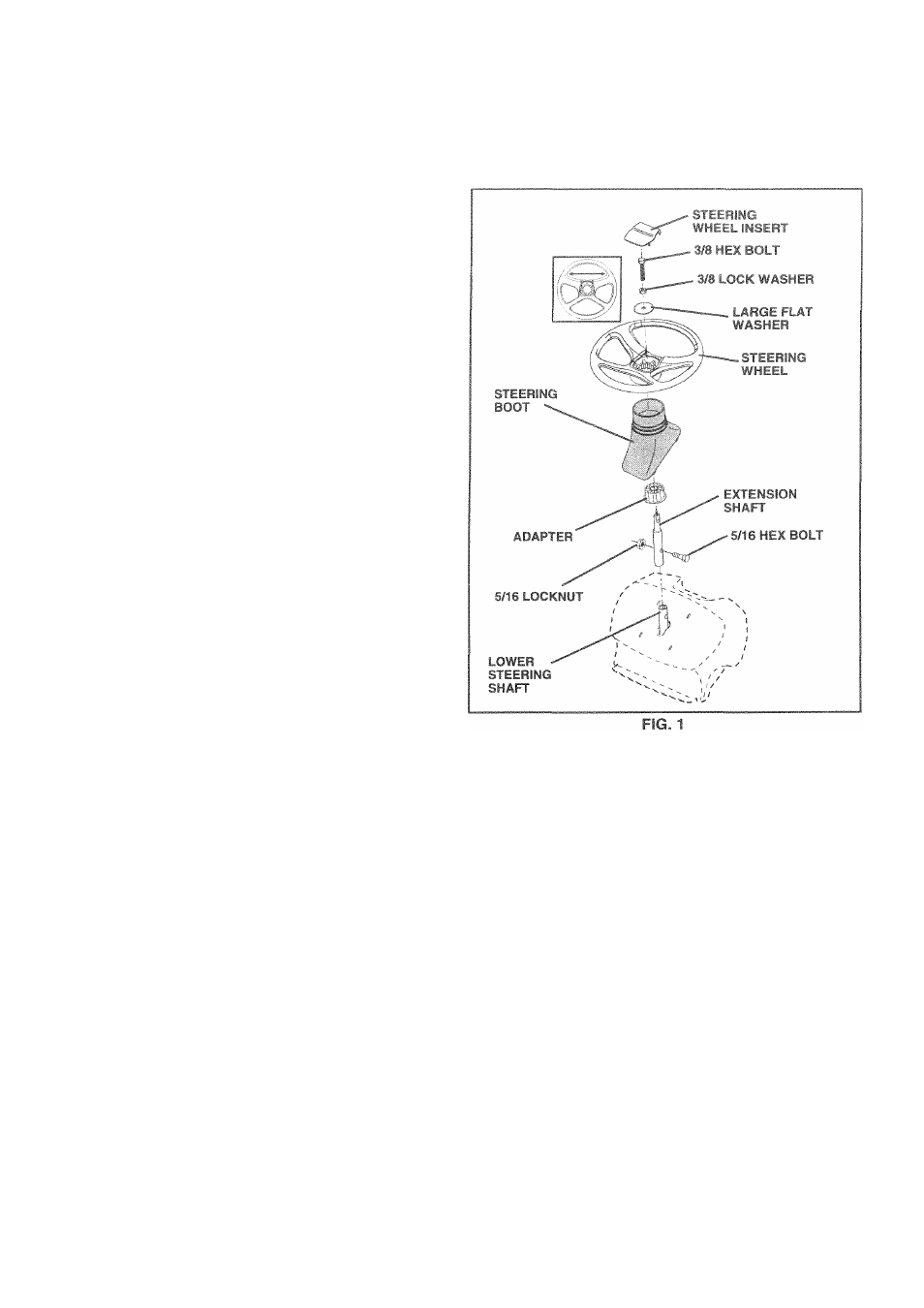

ATTACH STEERING WHEEL (See Fig. 1)
ASSEMBLE EXTENSION SHAFT AND BOOT
•
Slide extension shaft onto lower steering shaft. Align
mounting holes in extension and lower shafts and
install 5/16 hex bolt and locknut. Tighten securely.
IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO
18-22 FT. LBS TORQUE.
•
Place tabs of steering boot over tab slots in dash and
push down to secure.
INSTALL STEERING WHEEL
•
Position front wheels of the tractor so they are pointing
straight forward.
•
Slide steering wheel adapter onto steering shaft exten
sion.
•
Position steering wheel so cross bars are horizontal
(left to right) and slide inside boot and onto adapter.
•
Assemble large flat washer, 3/8 lock washer, 3/8 hex
bolt and tighten securely.
» Snap steering wheel insert into center of steering
wheel.
•
Remove protective materials from tractor hood and
grill.
IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR
IS TO ROLL OFF SKID.
f ■ ii I- i 'i' I •!
.1 I, i i / i c L o i K ' f i OT ihuse parii -eft unassembled for
shipping
purposes.
I Pi ill S ,• '• I't I I
1
» II .arid r,MOW
.ix
'
ku
M
semble must be tightened securely.
Use
TO ROLL TRACTOR OFF SKID (See Operation
section for location and fuoctiors of controls)
•
Press lift lever plunger and raise attachment lift lever to
its highest position.
•
Release parking brake by depressing ciutch/brake
pedal.
•
Place freewheel control in freewheeling position to
disengage transmission (See ‘TO TRANSPORT” in
the Operation section of this manual).
•
Roll tractor backwards off skid.
•
Remove banding holding discharge guard up against
tractor.
