TO ADJUST THROTTLE CONTROL CABLE

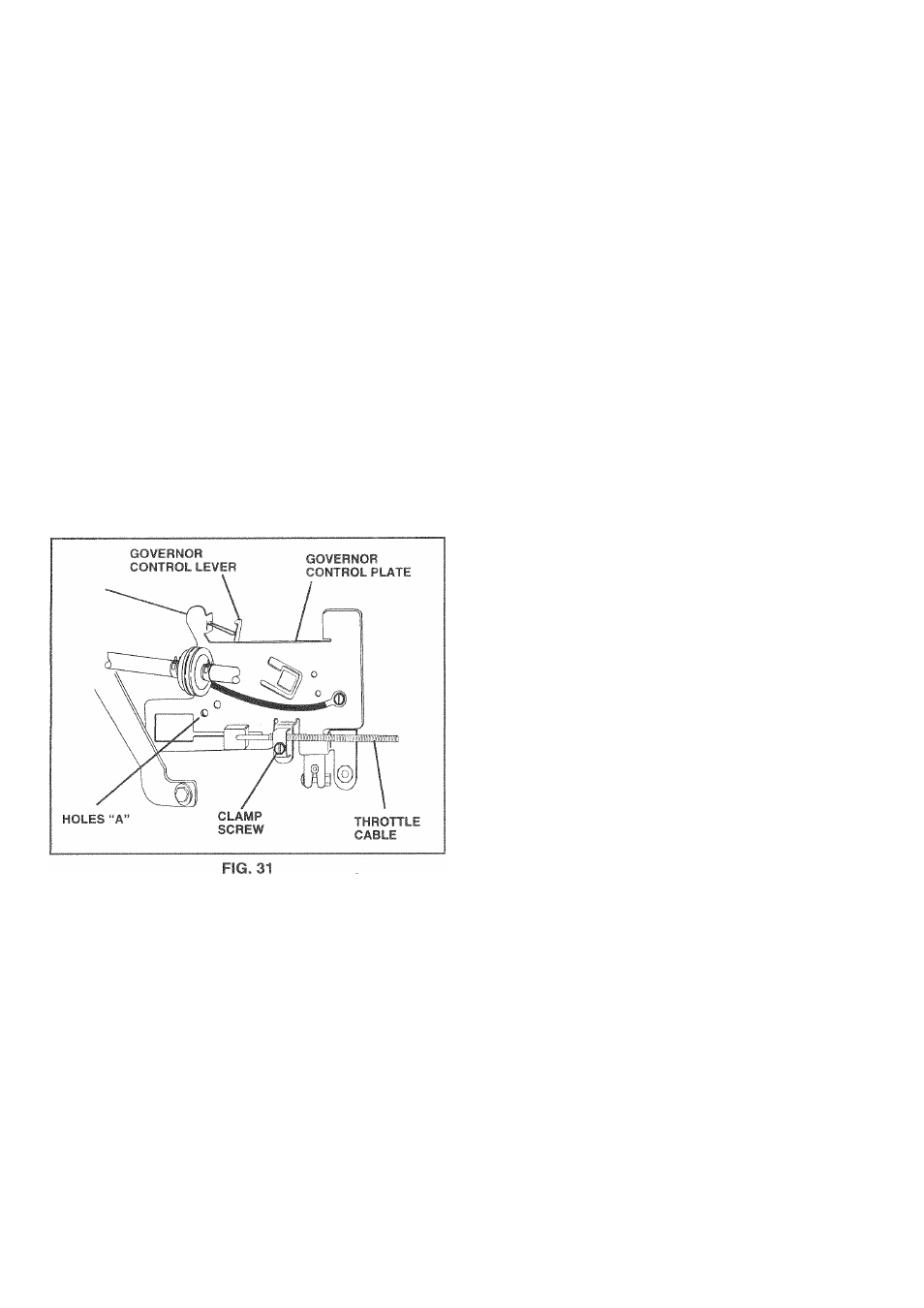

(See Fig. 31)
The throttle control has been
preset
at the factory and
adjustment should not be necessary. Check adjustment as
described below before loosening cable. If adjustment is
necessary, proceed as follows;
•
With engine not running, move throttle control lever
from slow
to choke
position. Slowly move lever from
choke to fast position.
•
Check that holes “A” in governor control lever and hole
in governor plate line-up. If holes “A” are not aligned,
loosen clamp screw and move throttle cable until holes
are
aligned. Tighten clamp screw securely.
