REPAIR PARTS

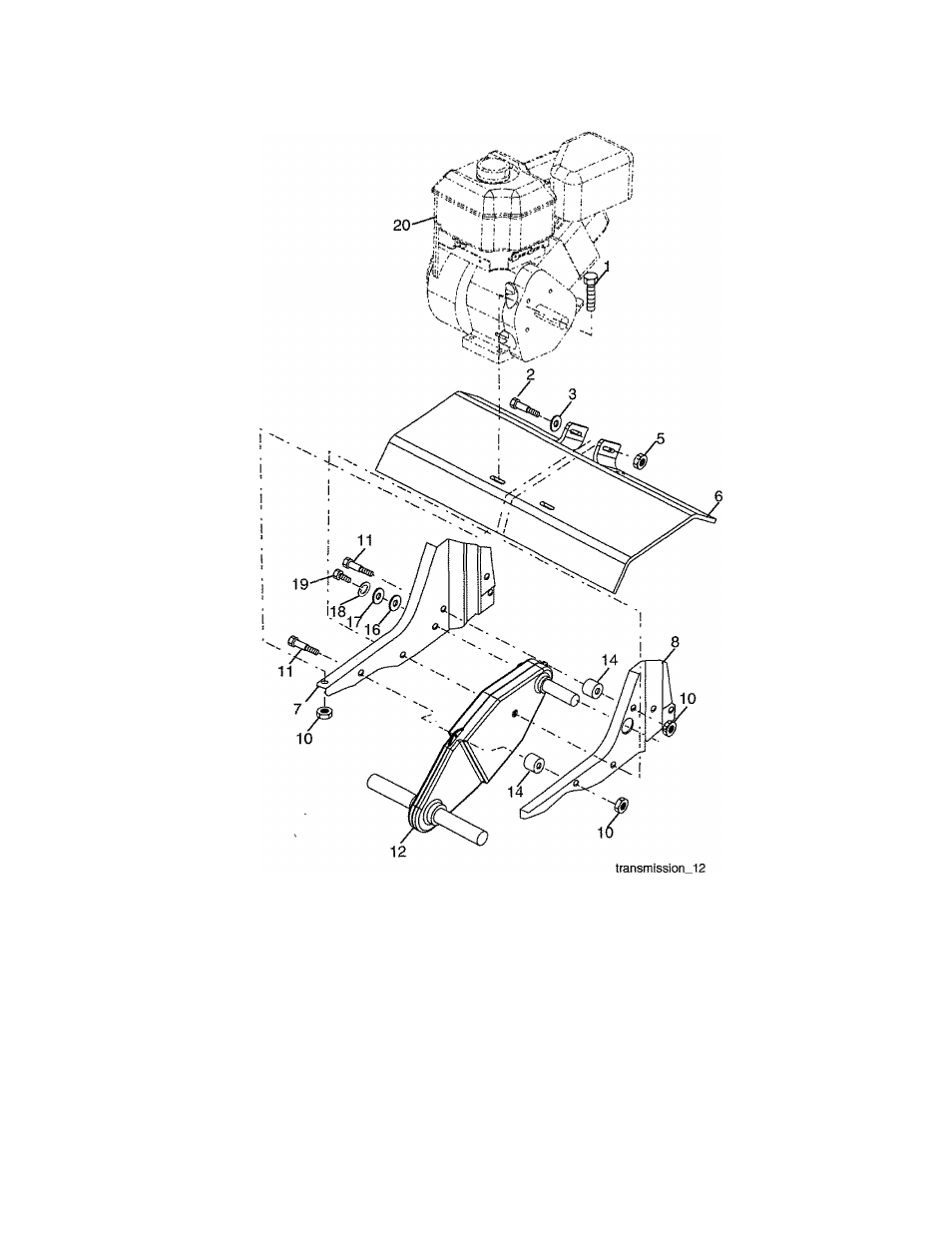

TRANSMISSION
TILLER - - MODEL NUMBER HDF550N
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
74760524
Bolt, Hex 5/16-18
X
1-1/2 Gr. 2
14
9173R
Spacer, Split
2
74780652
Bolt, Hex, Fin 3/8-16x3-1/4
16
19091412
Washer 9/32 x 7/8 x 12 Ga.
3
19131311
Washer 13/32x13/16x11
17
19092016
Washer 9/32 x 1-1/4 x 16 Ga.
5
73900600
Nut Lock Fig 3/8-16 unc
18
10040400
Washer, Lock 1/4
6
9057R428
Shield, Tine
19
74610412
Bolt, Hex 1/4-28
X
3/4 Gr. 5
7
188195
Bracket, Engine, R.H.
20
Engine, Briggs Mode! 126302
8
165834
Bracket, Engine, L.H.
Order parts from engine manufac-
10
73970500
Nut Lock Hex Fig
turer
11
187912
Bolt, Shoulder
NOTE:
All component dimensions given in U.S. inches.
12
176112
Transmission
1 inch = 25.4 mm
