TILLER - - MODEL NUMBER HDF550N

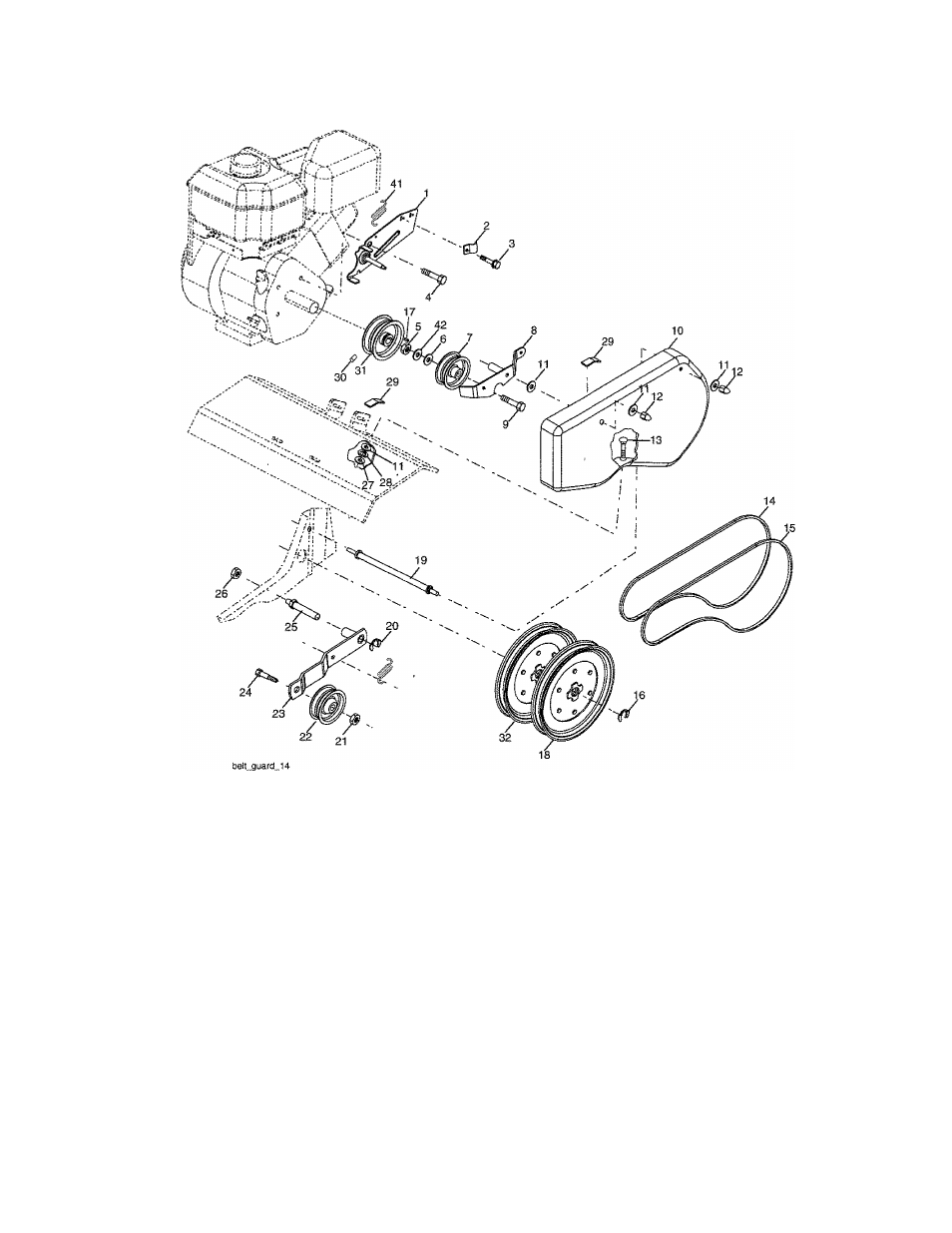

BELT GUARD AND PULLEY ASSEMBLY
REPAIR PARTS
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
180377
Assembly, Bracket, Belt Guard
19
188502
Bolt, Belt Guard
2
9484R
Clip, Cable
20
12000036
Ring, Klip
3
86777
Screw, Hex, Washer Hd., Slotted,
21
73350600
Nut, Hex, Jam 3/8-16
Thd. Cutting #10-24 x 1/2 Type D
22
161806
Pulley, Idler
4
74610812
Bolt, Hex 1/2-20 x 3/4
23
175377
Arm, Idler
5
73680600
Nut, Hex Lock 3/8-16
24
74760620
Bolt, Hex 3/8-16 x M/4
6
19131316
Washer 13/32 x 13/16 x 16 Ga.
25
106968X
Shaft, idler Arm
7
2009J
Pulley, Idler, Reverse
26
73350500
Nut, Hex, Jam 5/16-18
8
180323
Assembly, Arm, Reverse Idler
27
73220400
Nut, Fin Hex 1/4-20
9
74760628
Bolt, Hex 3/8-16x1-3/4
28
10040400
Washer LK Hvy Helical 1/4
10
156705X011
Guard, Belt
29
109227X
Pad, Idler
11
19091016
Washer 9/32 x 5/8 x 16 Ga.
30
23200404
Screw, Set, Socket, Headless
12
104213X
Nut, Cap 1/4-20
C.R 1/4-20x1 /4
13
72140406
Bolt, Carriage 1/4-20 x 3/4
31
101189L
Sheave, Engine
14
133035
V-Belt (Forward Motion)
32
151223
Pulley, V-Groove, Trans.
15
2614J
V-Beit (Reverse)
41
180307
Spring
16
12000028
Ring, Retainer
42
138909
Spacer
17
18
2649M
151236
Key, Square
Pulley, Flat, Trans.
NOTE:
AH component dimensions given in U.S. inc
1 inch = 25.4 mm
19
