SERVICE AND ADJUSTMENTS
A
CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into
contact with plug.
TILLER

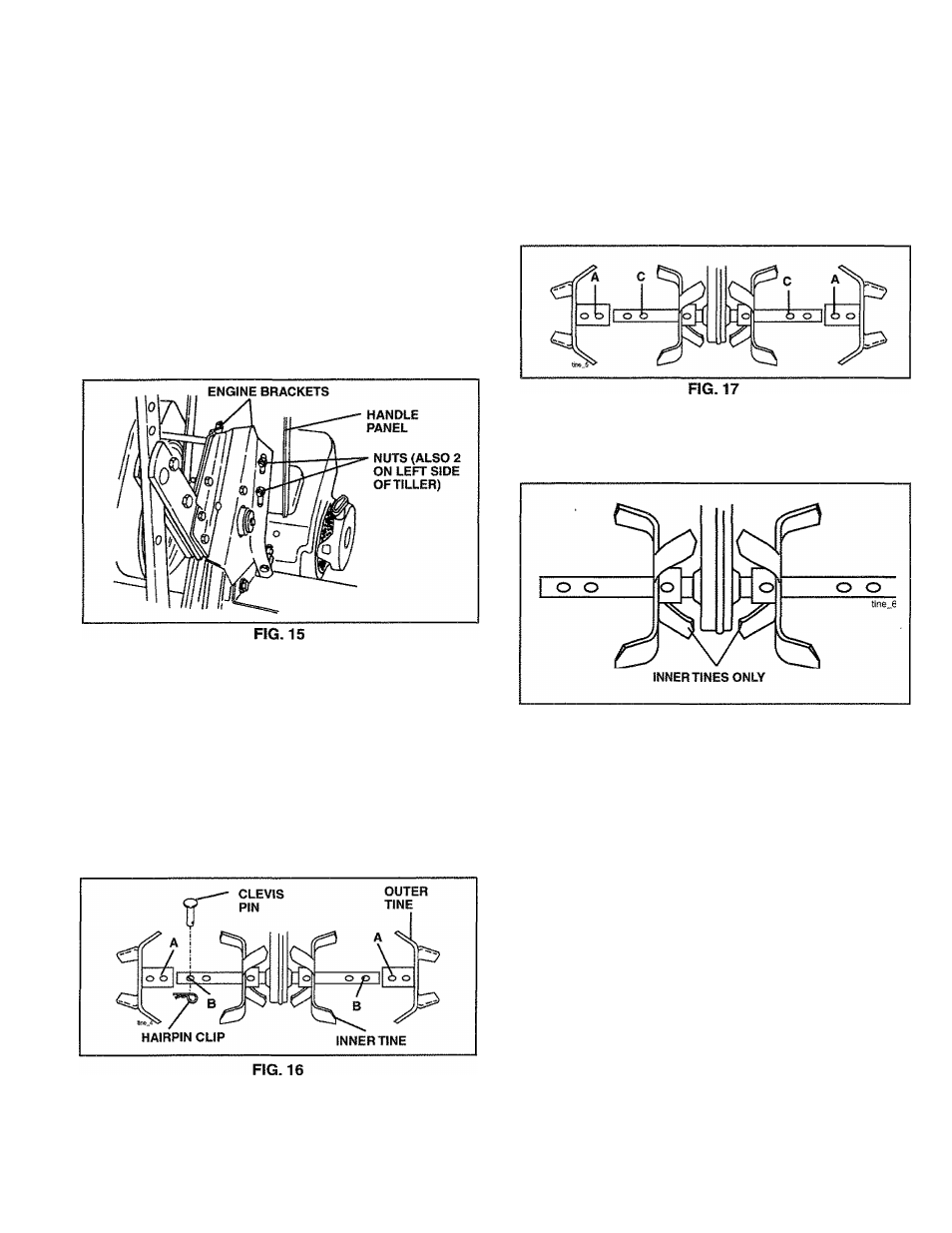

TO ADJUST HANDLE HEIGHT (See Fig. 15)
Factory assembly has provided lowest handle height Select
handle height best suited for your tilling conditions. Handle
height will be different when tiller digs into soil.
*
If a higher handle height is desired, loosen the four
nuts securing handle panel to engine brackets.
*
Slide handle panel to desired location.
*
Tighten the four nuts securely.
TINE ARRANGEMENT
Your outer tines can be assembled in several different ways
to suit your tilling or cultivating needs.
A
CAUTION:
Tines
are
sharp.
Wear
gloves or other protection when han
dling tines.
NORMAL TILLING - 26" PATH (See Fig. 16)
• Assemble holes "A” in tine hubs to holes “B” in tine
shaft.
MID-WIDTH TILLING - 24" PATH (See Fig. 17)
• Assemble holes “A” in tine hubs to holes “C” in tine
shaft.
NARROW TILLING/CULTIVATING - 12-3/4" PATH
(See Fig. 18)
• Remove outer tines.
FIG. 18
NOTE:
When reassembling outer tines, be sure right tine
assembly (marked “R”) and left tine assembly (marked “L”)
are mounted to correct side of tine shaft.
13
