REPAIR PARTS

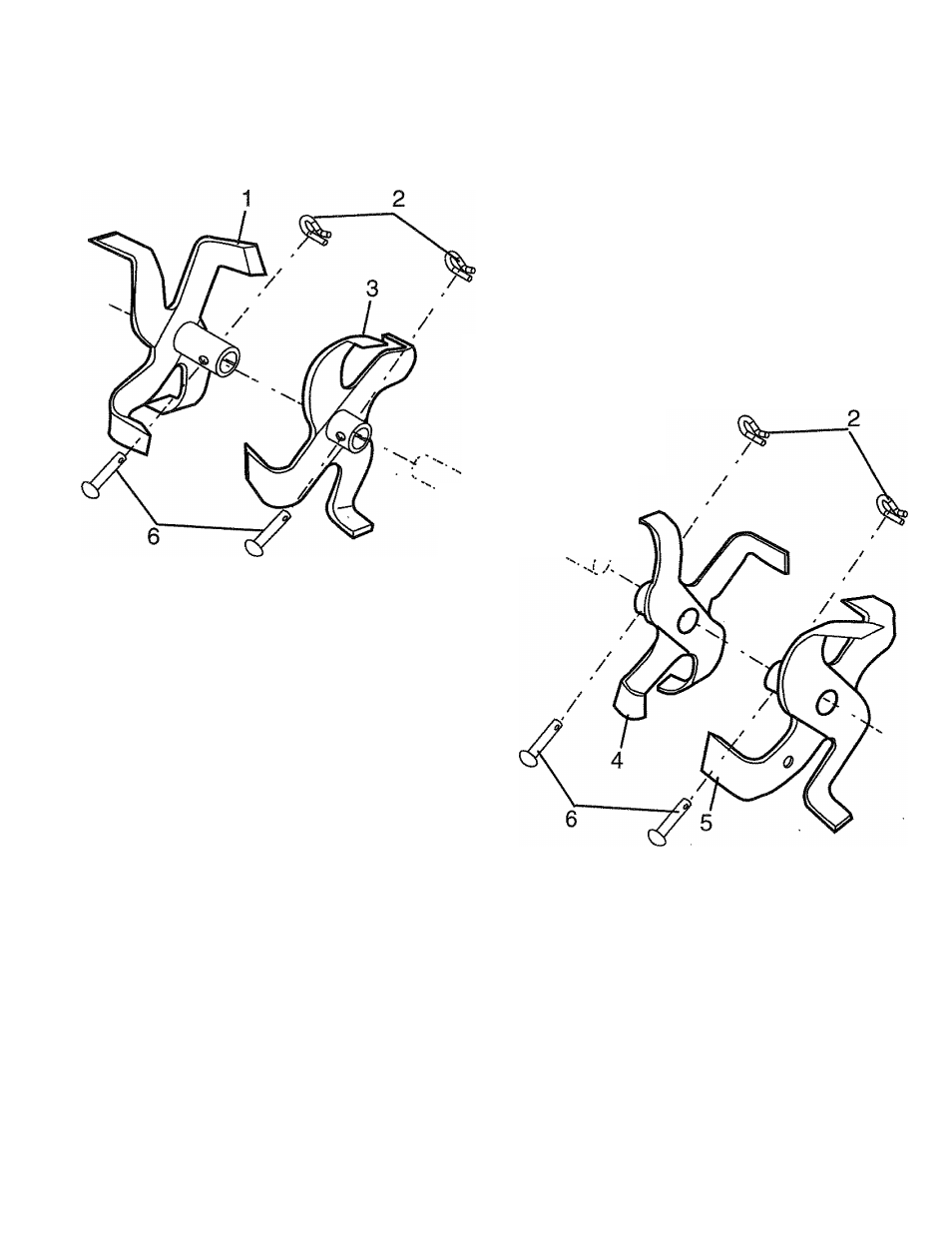

TINE ASSEMBLY

TILLER - - MODEL

NUMBER

HDF550N

‘ '

• .■

j'

*

/''■//

^

/ * ' / y

Sft. //

/ * / ' '

^V\

/

//o'

%/

•-S. ////

i..-! * * '

♦

iji- '■-..

tinejpb_3

KEY
NO.

PART

NO.

DESCRIPTION

KEY
NO.

PART
NO.

DESCRIPTION

1

156934

Tine, Outer, R.H.

4

156931

Tine, Inner, L.H.

2

3146R

Retainer, Spring

5

156933

Tine, Outer, L.H.

3

156932

Tine, Inner, R.H.

6

4929H

Pin, Clevis

21
