REPAIR PARTS

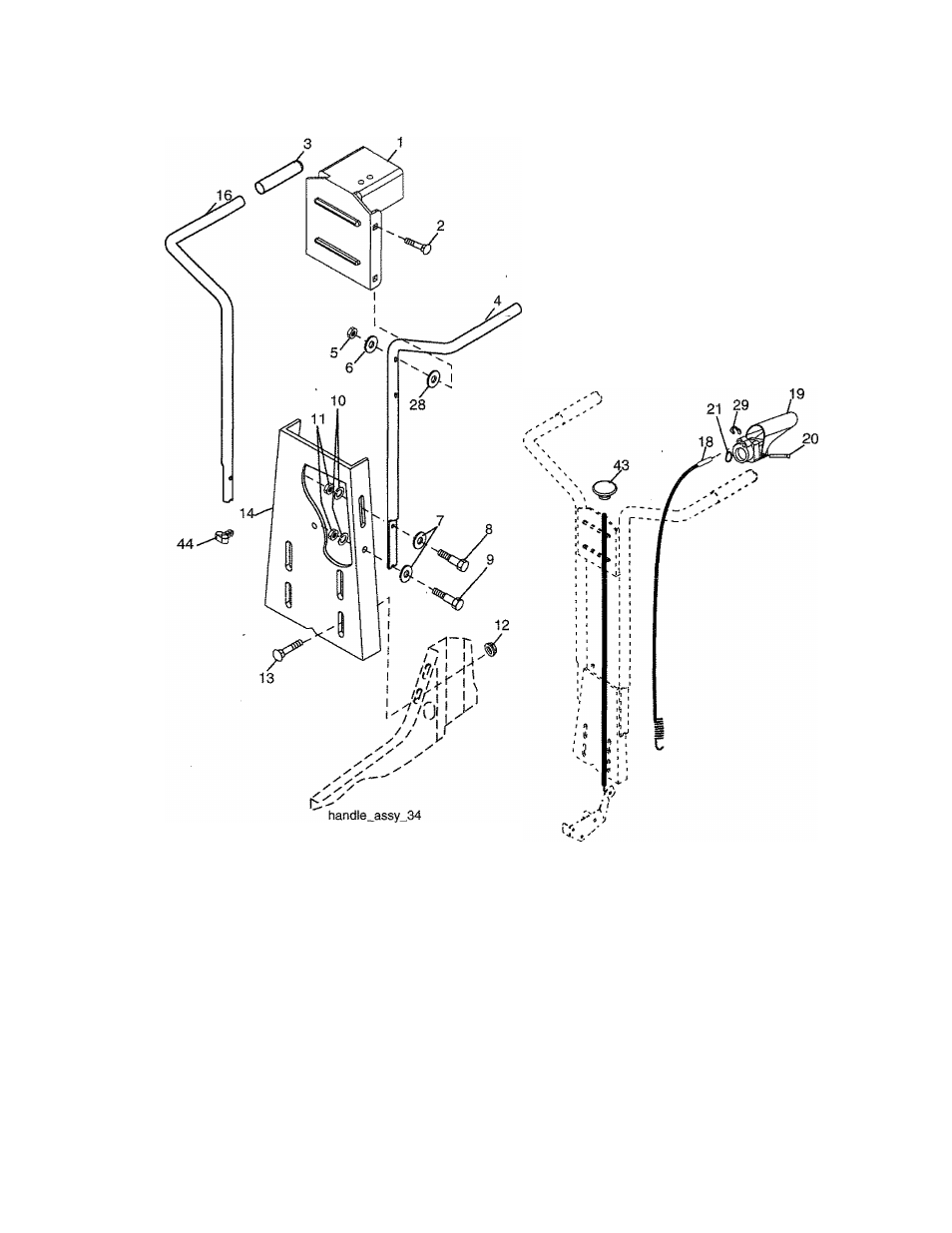

HANDLE ASSEMBLY
TILLER - - MODEL NUMBER HDF550N
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
187820X428
Bracket Handle
14
181452X428
Panel, Handle
2
72140512
Bolt, Carriage 5/16-18 unc x 1-1[2
16
166377
Handle, R.H.
3
9266R
Grip, Handle
18
166868
Cable, Control, Tine
4
166376
Handle, LH.
19
151229
Lever, Control, Tine
5
73680500
Locknut, Crown 5/16-18
20
154805
Pin, Pivot
6
19111116
Washer 11/32 x 11/16 x 16 Ga.
21
12000027
Ring, Klip
7
19121414
Washer 3/8 x 7/8 x 14 Ga.
28
19131312
Washer 13/32 x 13/16 x 12 Ga.
8
74760516
Bolt, Hex Hd. 5/16-18x1
29
12000059
Retaining, Ring
9
74760512
Bolt, HexHd 5/16-18x3/4
43
188177
Cable Assembly, Reverse
10
10040500
Washer, Lock 5/16
44
181580
Clip
11
73220500
Nut, Hex 5/16-18
12
98000129
Nut, Flanged 5/16-18
NOTE:
All component dimensions are given in U.S.
13
180847
Bolt, Carnage 5/16-18 x 3/4 Gr. 5
inches. 1 inch = 25.4 mm
