Section 2 - Operation
PRIMEPACT 70G and 70LP Recreational Vehicle Generators
♦ 1.6.4 ENGINE SPECIFICATIONS_________________
'lype of Engine
PRIMEPACT 70G/70LP........................................... GNG80
Cooling Metliod .................................................... Air-coolcd
Rated Horsepower
PRIMEPACT 70G/70LP .....................................16 at 3600
Displacement
PRIMEPACT 70G/70LP............................................ 480cc
Compression Ratio.......................................................8.6 to 1
Cylinder Block .........................Aluminum w/Cast Iron Sleeve
Type of Governor ............................ Mechanical, Fixed Speed
Engine Governor Speed...........................................2900 rpni
Air Cleaner ....................... Paper Element w/Foam Pi'ecleaner
Starter ........................................................12-volt DC Electric
Ignition System ..................... Solid-state w/Flywheel Magneto
Recommended Spark Plug
Champion.............................................................. RC12YC
AC................................................................................R45S
Fram AutoUte ..................................................................65
Spark Plug Gap....................................... 0.030 inch (0.8 mm)
Recommended Min. Battery........... 400 Cold Cranking Amps
♦ 1.6.5 EMISSIONS COMPLIANCE PERIOD * •
For nonhandled engines the Emissions Compliance
Period referred to on the Emissions Compliance
Label indicates the number of operating hours for
which the engine has been shown to meet Federal
emission requirements.
• For engines less than 225 cc displacement,
Category C=125 hours, B = 250 hours, and A=500
hours.
• For engines of 225 cc or more. Category C = 250
hours, B = 500 hours, and A= 1000 hours.
2.1 GENERATOR CONTROL PANEL
The following features are mouiiied on the generator
control panel (Figure 2,1):
♦ 2.1.1 FUEL PRIMER__________________________
Before starting a cold engine (if it has not been start­
ed in more than two weeks), you must press this
switch for approximately ten seconds to bring fuel
from the tank to the fuel pump. This rocker ty[3C
switch springs back into its original ¡rosition when
you release it.
♦ 2.1.2 START/STOP SWITCH____________________
To crank and start the engine, hold this switch in the
START position. Release the .switcli when the engine
starts. To stop an operating engine, press and hold
the switch in the STOP position until the engine shuts
off. The switch center position is the ItlJN position.
♦ 2.1.5 15 AMP FUSE__________________________
The fuse protects the engine's DC control circaill
against electrical overload. If the fuse element has
melted open due to overloading, the engine cannot be
cranked. If you must replace the fuse, use only an
identical 15 amp replacement fuse.
♦ 2.1.4 LINE BREAKERS
Protects generator’s AC output circiut against
overload, i.e., prevents unit from exceeding
wattage/amperage capacity. This unit has two iiO-ang:)
breakers.

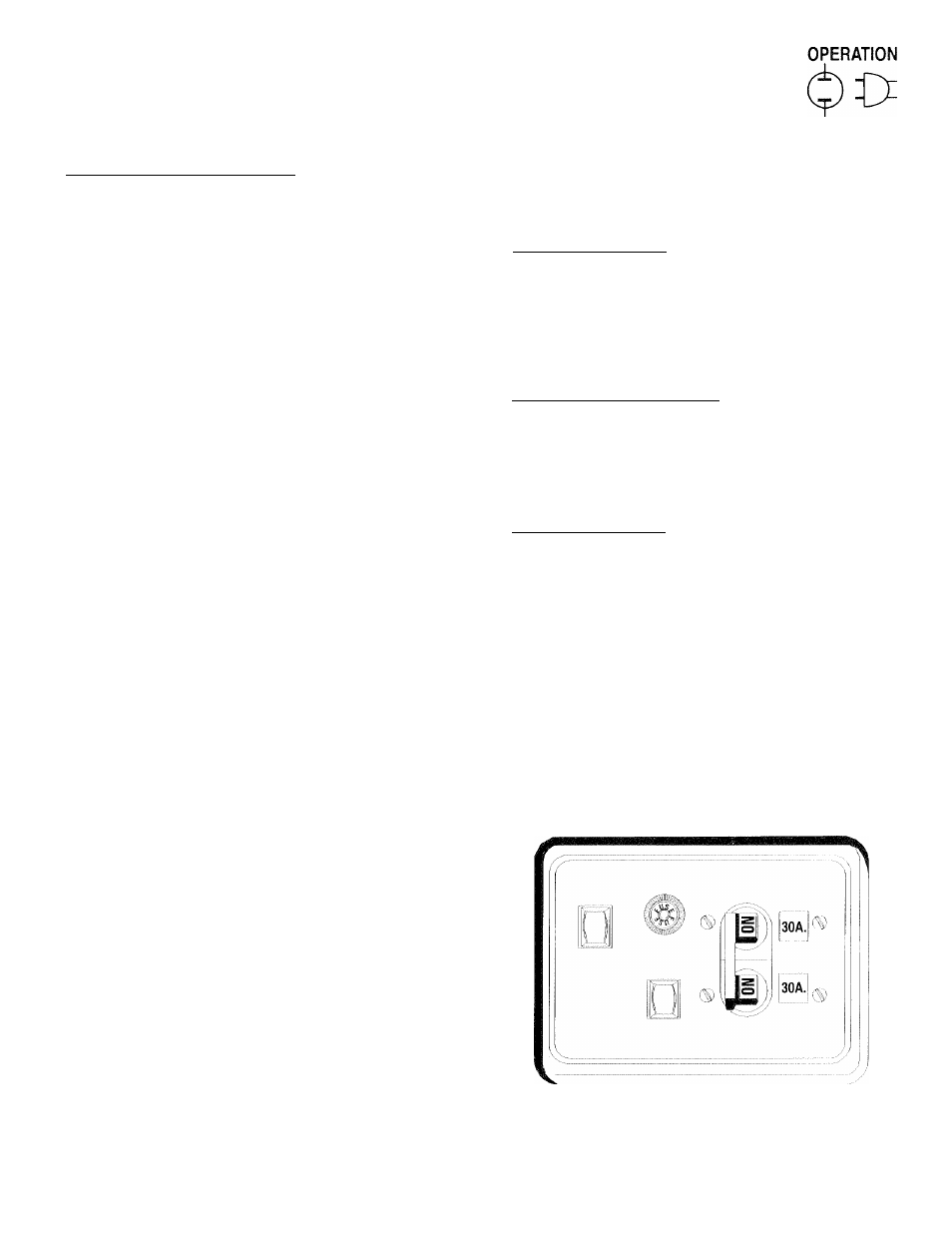

Figure 2.1 - Typical Control Panel
FUSE IVIAIIM
START T 5 A BREAKER
STOP FUEL
PRilVlER
