Section 3 - Maintenance
PRIMEPACT TOG and 70LP Recreational Vehicle Generators
MAINTENANCE
filter must lock into slots on cover.
8. Install the cover, foam precleaner and paper filter.
9. Replace knob to retain the filter in place.

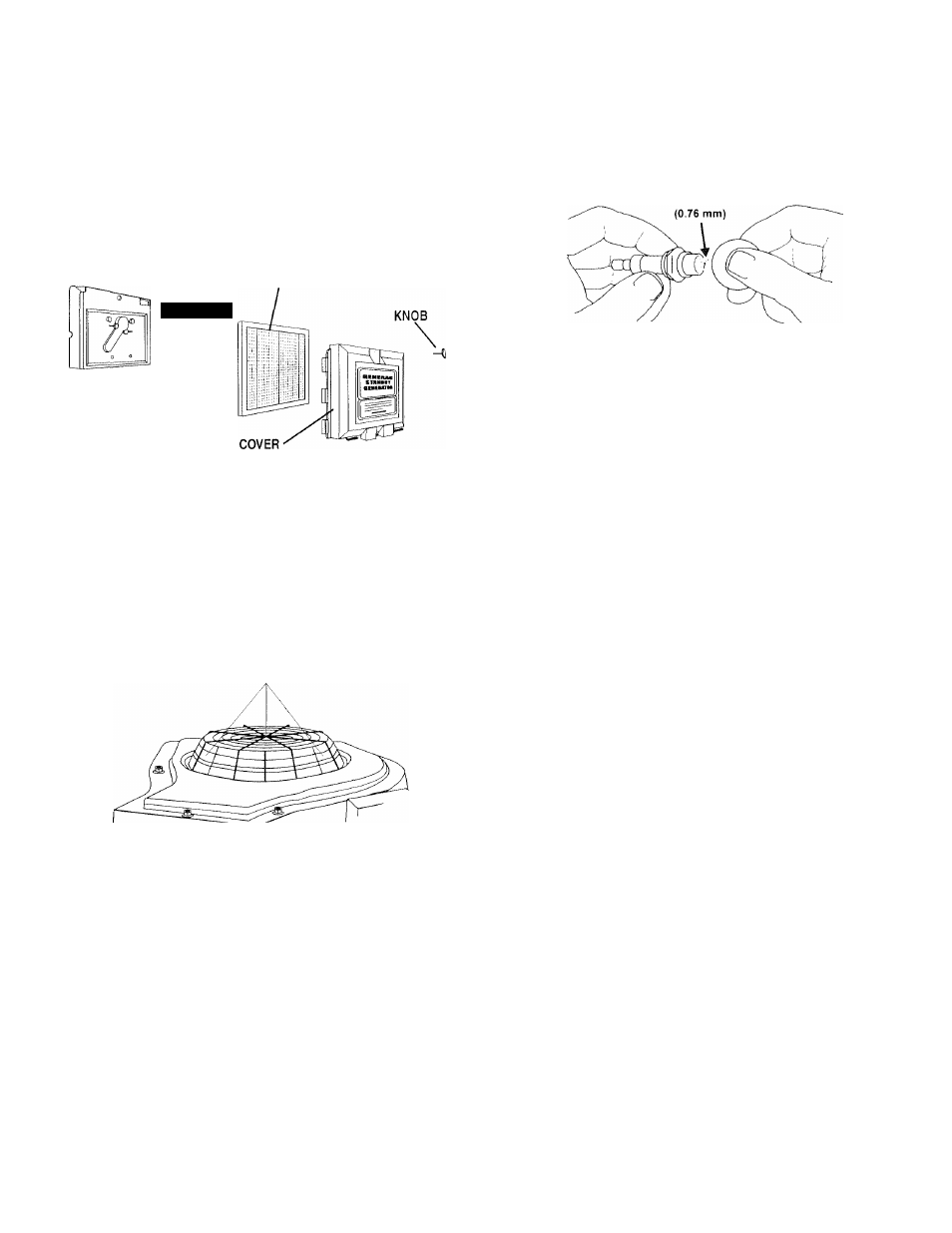

Figure 3.3 - Engine Air Cleaner
Figure 3.5 - Setting the Spark Plug Gap
PAPER
FILTER
FOAM
PRE-CLEANER
3.4 CLEAN AIR INTAKE SCREEN
Clean all foreign material from the air intake screen
(Figure 3.4) at least once every 100 hours of opera­
tion. Clean more often if necessary.
Inspect the area around the generator exhaust muf­
fler periodically and remove all grass, leaves, dirt,
etc., from this area.
Figure 3.4 - Cleaning Air Intake
CLEAN THESE AREAS
3.5 CHECKING THE ENGINE
SPARK PLUG
Clean the spark plug and reset the spark plug gap
every 100 hours of operation.
1. Clean the area around the base of the spark plug
to keep dirt and debris out of the engine. Clean by
scraping or washing using a wire brush and com­
mercial solvent. Do not blast the spark plug to
clean.
2. Remove the spark plug and check the condition.
Replace the spark plug if worn or if reuse is ques­
tionable.
3. Check the spark plug gap using a wire feeler
gauge. Adjust the gap to 0.030 inch (0.76 mm)
by
carefully bending the ground electrode
(Figure 3.5).
-------ik CAUTION Mk ------------
A Sparking can occur if the wire terminal does
not fit firmly on the spark plug terminal end. If
necessary, re-form the wire terminal to obtain a
tight fit.
3.6 FUEL FILTER
( g a so lin e o n ly )
Remove and replace the fuel filter (Figure 3.6)
once each year or every 100 hours of operation,
whichever comes first.
Figure 3.6 - Fuel Filter
FUEL FILTER
TO FUEL PUMP
CUSTOMER FUEL CONNECTION
3.7 SPARK ARRESTOR IVlUFFLER
If the generator is not equipped with a spark arrestor
exhaust muffler and is to be used on any forest cov­
ered, brush
covered or grass covered unimproved
land, you may have to install a spark arrestor. The
spark arrestor must be maintained in effective work­
ing order by the vehicle owner/operator.
For assistance in ordering, installing and maintaining
spark arrestor exhaust mufflers, contact your nearest
Generac Authorized Service Dealer.
Exhaust mufflers supplied by Generac arc spark
arrestor types. Generac exhaust mufflers for recre­
ational
vehicle generators do not have a spark
arrestor screen, but are of the more efficient “toroid"
or “swirl" type. To remove carbon and combustion
deposits from such mufflers, remove the plug from
the muffler and run the engine for approximately 15
minutes. Shut down the engine, let the muffler cool
and install the plug.
Generac® Power Systems, Inc. 1 3
