OPERATiOK

Loader Hydraulic Controls

Loader Hydraulics are activaiad by Engaging

Tractor front P.T.O. The P.T.O. switch is located
on the RH side of the instrument Panel.

The loader Hydraulic Valve Features Single

Lever Control. Refer to figure 5 for reference to
Loader Control Functions.

The Loader Hydraulic Valve Lift Cylinder circuit

incorporates a “Float” position which allows the
loader bucket to follow ground contours. The
“Float” position is engaged by shifting the con

trol lever forward into “Detent”. The Loader

Hydraulic Valve will remain in “Detent” until the

operator pulls the control lever out of the “De
tent” position.

Refer to “Scraping” operation for recommended
use of “Float” position.

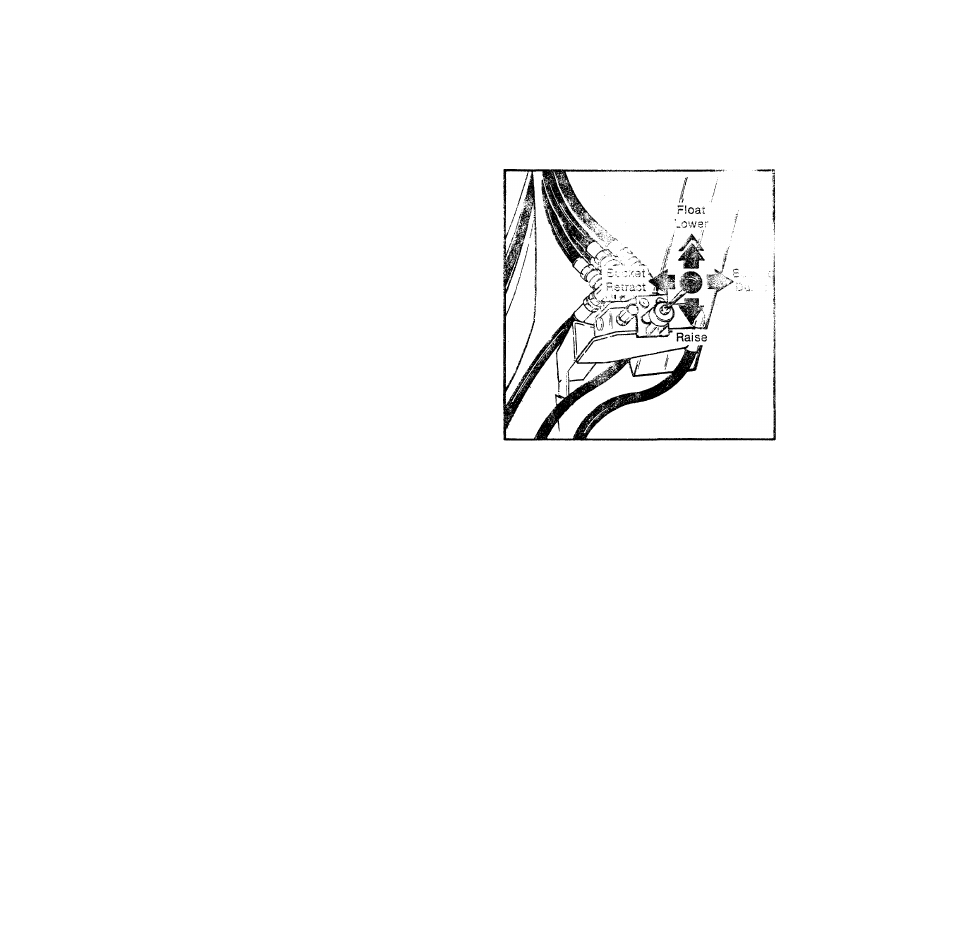

Single Lever Control

Fig. 5
