Section 7 — Exploded View s and Parts Lists
Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators

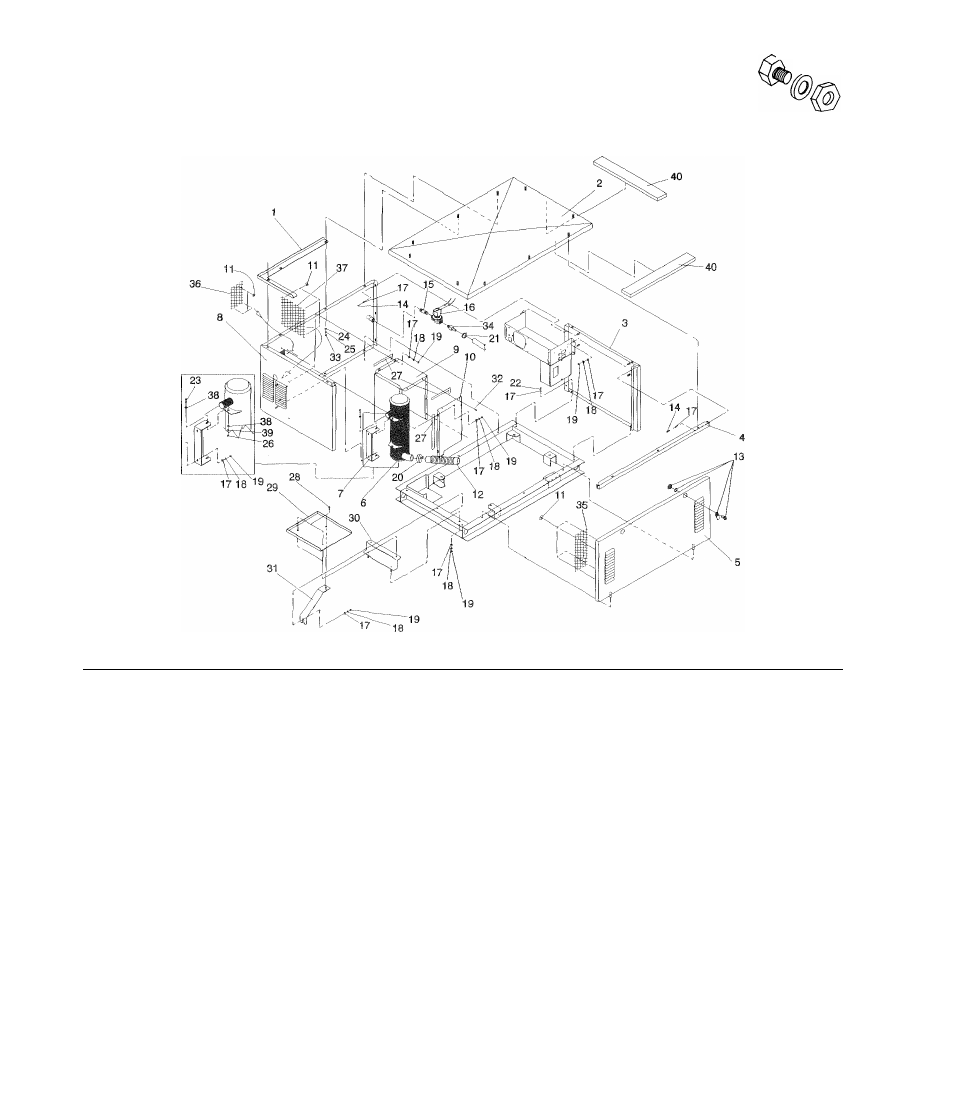

Enclosure - Drawing No. C2370-
..PARTS
LISTS
ITEM PART NO. QTY. DESCRIPTION
ITEM PART NO. QTY. DESCRIPTION
1
A9962
1
PLATE, INTAKE
22
79246
6
M6- 1,0
X
16 HEX HD, & LOCK
2
A9892
1
ENCLOSURE, ROOF
WASHER
3
C1199
1
PANEL, ENCLOSURE-ALT
23
29745
2
3/8"-16
X
1" HEX HEAD
SIDE
24
22145
5
M8 FLAT WASHER
4
A9677
1
RAIL, TOP SUPPORT
25
22129
5
M8 LOCK WASHER
5
A9633
1
ENCLOSURE, DOOR
26
22241
2
3/8"- 16 HEX NUT
6
A9651
1
MUFFLER
27
C2310
1
GASKET, SET-MUFFLER BOX
7
A9897
1
SUPPORT, BRACKET
28
A2393
3
M6 1.0
X
16 FLAT SOCKET HD.
MUFFLER
CAPSCR.
8
A9629
1
SIDE AND BACK ENCLOSURE 29
A9961
1
BATTERY TRAY
9
A9631
1
BOX, MUFFLER
30
A9963
1
BATTERY TRAY SUPPORT
10
A9632
1
COVER, EXHAUST BOX
31
A9964
1
ANGLED BATTERY TRAY
11
78115
15
SELF LOCKING DOME WASHER
SUPPORT
12
A9816
1
FLEX-EXHAUST PIPE
32
56893
5
CRIMPTITE-10-24
X Ya
13
Cl 023
2
DOOR LATCH
33
22259
5
5/16"- 18 HEX NUT
14
A2110
5
74-20
X
1
/
2
" SWAGE FASTENER
34
C2206
1
BARBED FITTING
15
26915
1
%" NPT CLOSE NIPPLE
35
C2506A
2
MESH, DOOR PANEL
16
A2666
1
FUEL SOLENOID
36
C2506B
1
MESH, EXHAUST BOX
17
22473
26
M6 FLAT WASHER
37
C2506C
1
MESH, EXHAUST OUTLET
18
22097
15
M6 LOCK WASHER
38
22131
4
3/8" FLAT WASHER
19
49813
15
M6 -1.0 NUT
39
22237
2
3/8" LOCK WASHER
20
C2866
1
EXHAUST CLAMP-1.25"
40
C2502
1
BARRIER FOAM
21
57822
1
CLAMP #8
Generac* Power Systems, Inc. 39
