MODEL NUMBER HD145H42E

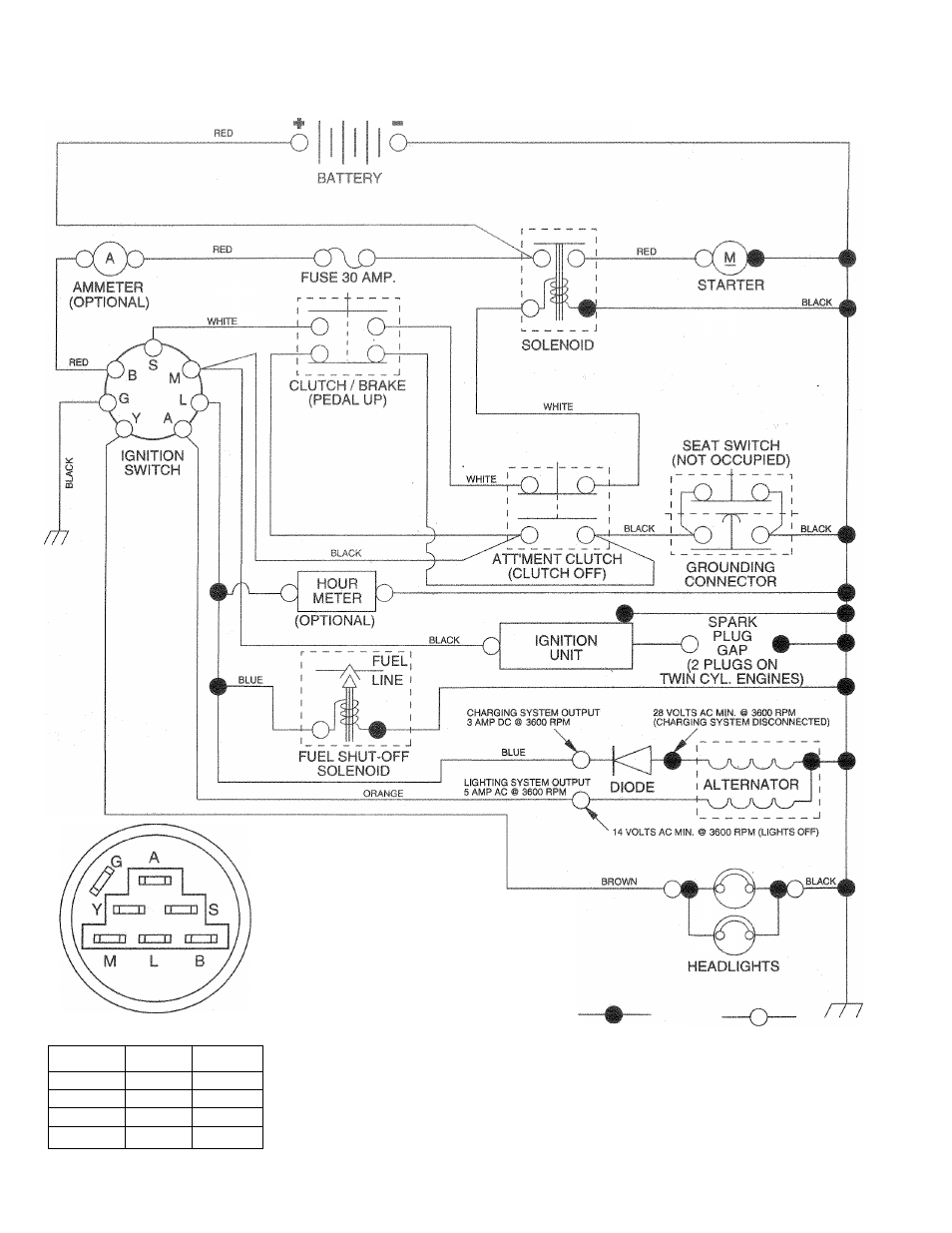

SCHEMATIC

SLACK

IGNITION SWITCH

POSITION CIRCUIT “MAKE”

OFF

G ^ M + L

NONE

RUN/LIGHT

B + L

A +Y

RUN

B + L

NONE

START

B + L+S

NONE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE

BATTERY BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE
SPEED, AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
