CAUTION: BEFORE PERFORMIMG ANY SERYiCE OR ADJUSTMENTS:
•
Depress clutch/brate pedai fylif Sis'm sm. parking brake.
• Place motion control lever in neutral (N) position.
• Place attachment clutch in “DISENC3AC3ED” position.
• Turn ignition key “OFF” and remove key.
® Make sure the blades and all moving parts have completely stopped.
• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug.
TRM - C i P
*^0 hEPGVr I (Om Piif. 1TI
MCWi v ' d i l i ) - i I . . i - f i nil'. r . . ” i l e c t o r .
ittactimc ilute “DiSENG. L‘ u _iiion.
^ Ml c t4idcl-.n< i.tict I' .^,ilMVv''mu lowei ('lowerto its
• Roll belt off engine pulley.
• Disconnect clutch rod from clutch lever by removing
retainer spring.
• Disconnect anti-sway bar from chassis bracket by
removing retainer spring.
® Disconnect suspension arms from rear deck brackets
by removing retainer springs.
• Disconnect front links from deck by removing retainer
springs.
• Raise lift lever to raise suspension arms. Slide mower
' out from under tractor.
IMPORTANT: I F AN ATTACHMENT OTHER THAN THE
MOWER IS TO BE MOUNTED TO THE TRACTOR, THE
R.H. AND L.H. SUSPENSION ARMS MUST BE REMOVED
FROM TRACTOR.
TO INSTALL MOWER (See Fig. 17)
• Raise attachment lift lever to its highest position.
• Slide mower undertractorwith discharge guard to right
side of tractor.
• Lower lift lever to its lowest position.
• Install mower in reverse order of removal instructions.

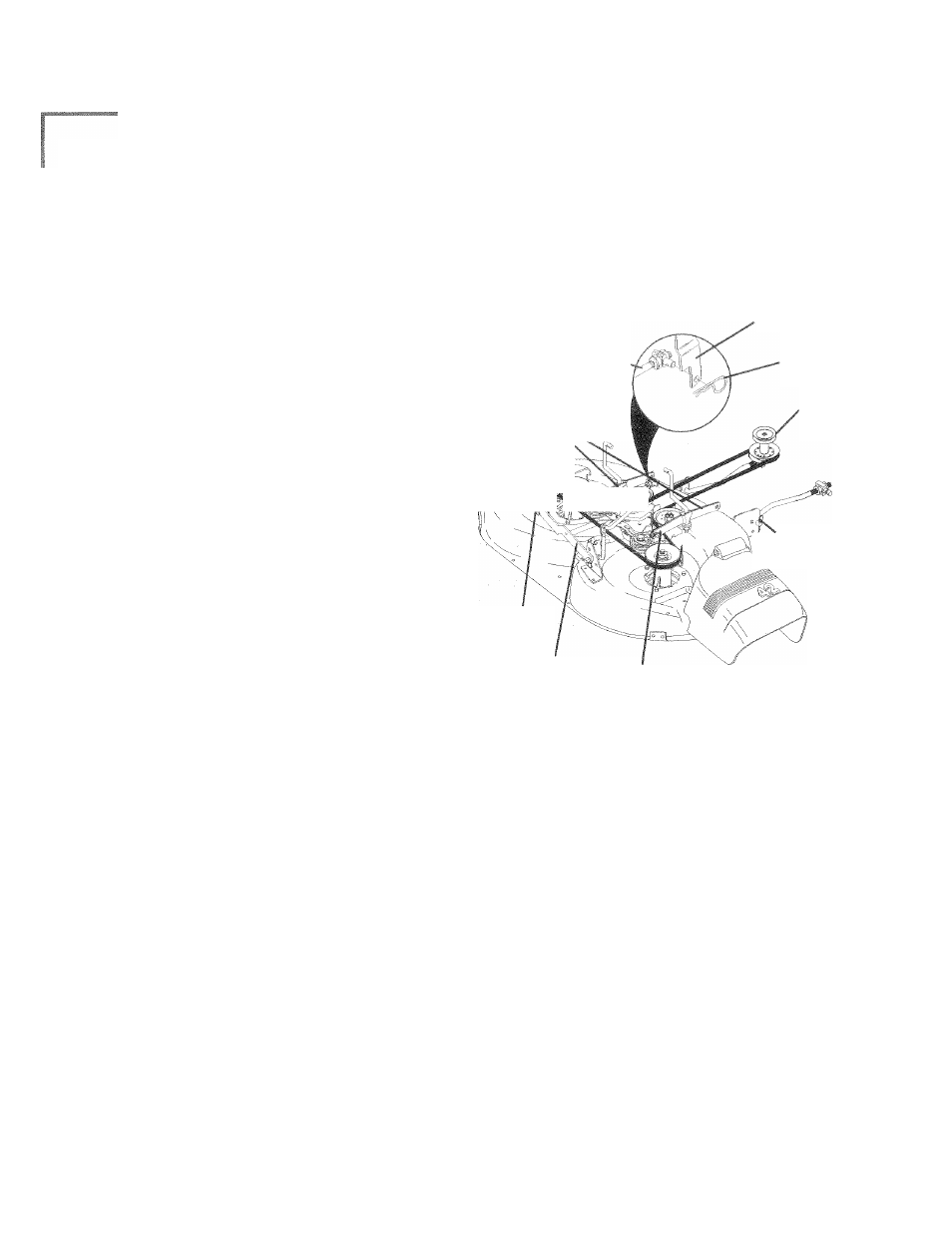

CLUTCH ROD
SUSPENSION
A R M S ^
CLUTCH LEVER
RETAINER
SPRING
ENGINE
PULLEY
RETAINER
SPRINGS
(BOTH SIDES)
RETAINER
SPRING
ANTI-SWAY BAR
RETAINER
SPRINGS
(BOTH SIDES)
FIG. 17
