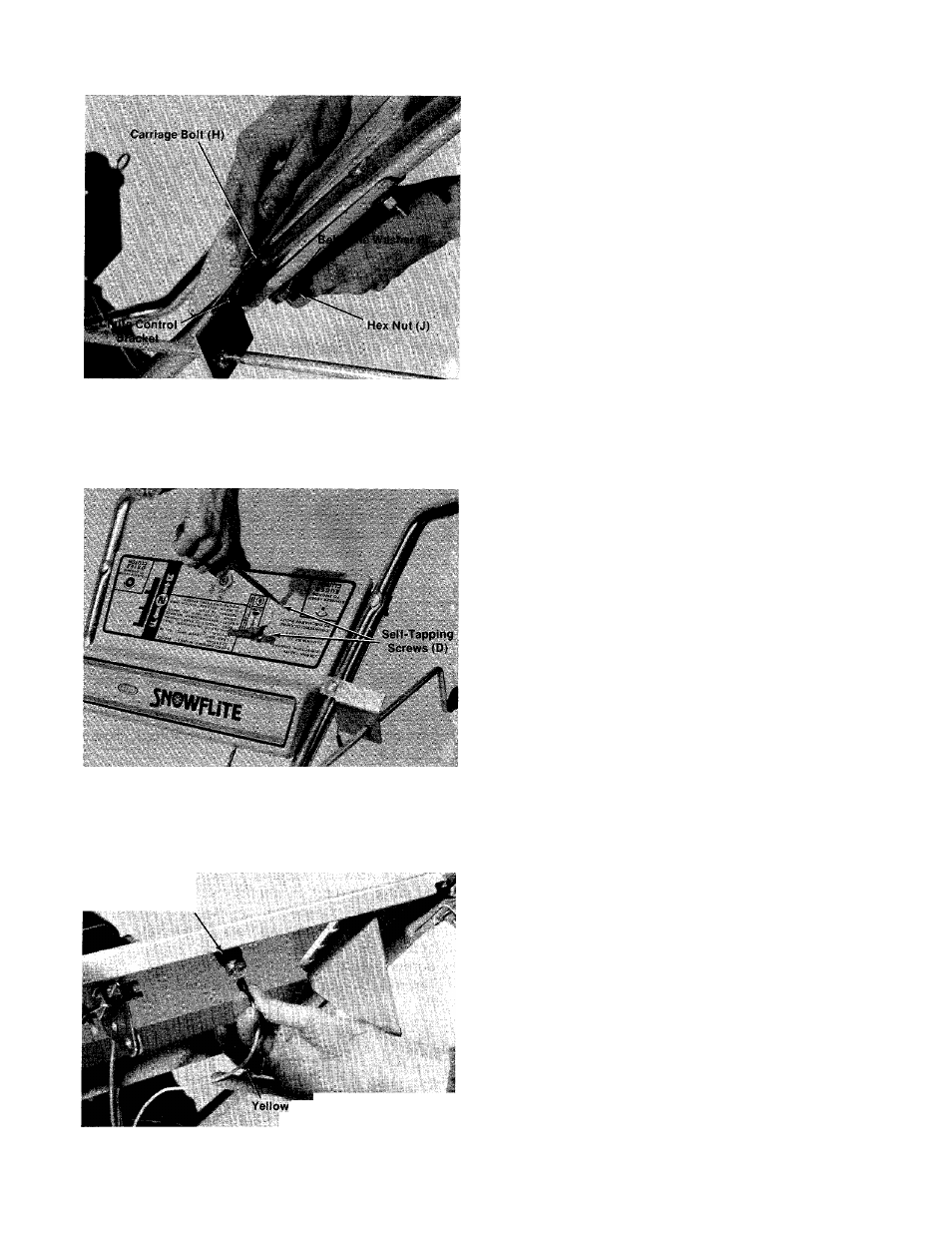

5.-- Attach chute crank assembly to unit. Line up
hole in chute control bracket with hole in
handle. Secure with carriage bolt (H),
belleville washer (I) and hex nut (J) as shown
---- in figures.
6. At this point, tighten secureiy all nuts and
bolts.
FIGURES.
7.
Hold throttle control underneath handle
panel. Bring throttle control knob through the
slot in handle panel. Line up the two holes in
the throttle control with the two holes in
handle panel. Secure with self-tapping screws
(D). A screwdriver is required. See figure 7.
FIGURE 7.
Safety
Switch
Electric
Wire
8.
Plug yellow electric wire into safety switch
— beneath handie panei. See figure 8.
FIGURES.
