AUGER CHAIN ADJUSTMENT

If the drive chain to the auger is loose, it may be

adjusted using a 9/16” wrench. Loosen the hex

nut on the outside of the chain guard on the left
hand side of the unit. Slide the bolt down as
necessary. Tighten the hex nut securely. See

figure 33.

Loosen the two hex nuts at the wheel axle on the
right hand side of snow thrower housing. Lift up

on the right wheel to take the slack out of the
chain as you retighten the nuts. See figure 34.

SHIFTING ROD ADJUSTMENT

To adjust the shifting rod, refer to step number 13

under assembly instructions.

DRIVE CLUTCH CONTROL ADJUSTMENT

To adjust the drive clutch control, refer to step

number 18 underassembly instructions.

Hex Nut

AUGER CLUTCH CONTROL ADJUSTMENT

To adjust the auger clutch control, refer to step
number 22 under assembly instructions.

Chain Guard

FIGURE 33.
REAR AXLE CHAIN ADJUSTMENT

To adjust the rear axle chain, first tip the snow
thrower forward so it rests on the auger housing
and drift cutters.

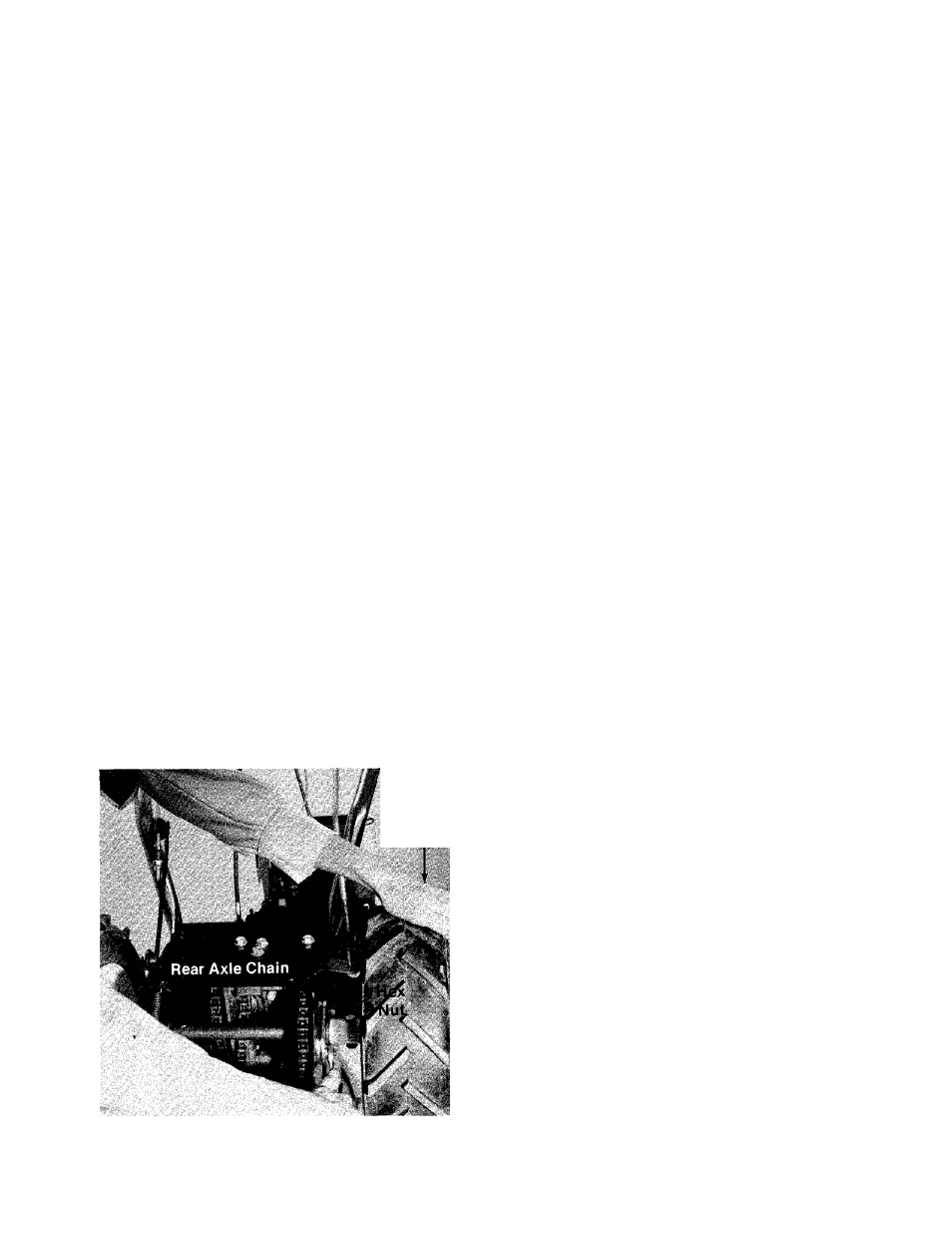

FIGURE 34.

Lift Right

Hand Wheel
