Operation, Ft 0 1 – MTD 310-430A User Manual

Page 11

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

background image

Throttle Control

Cable

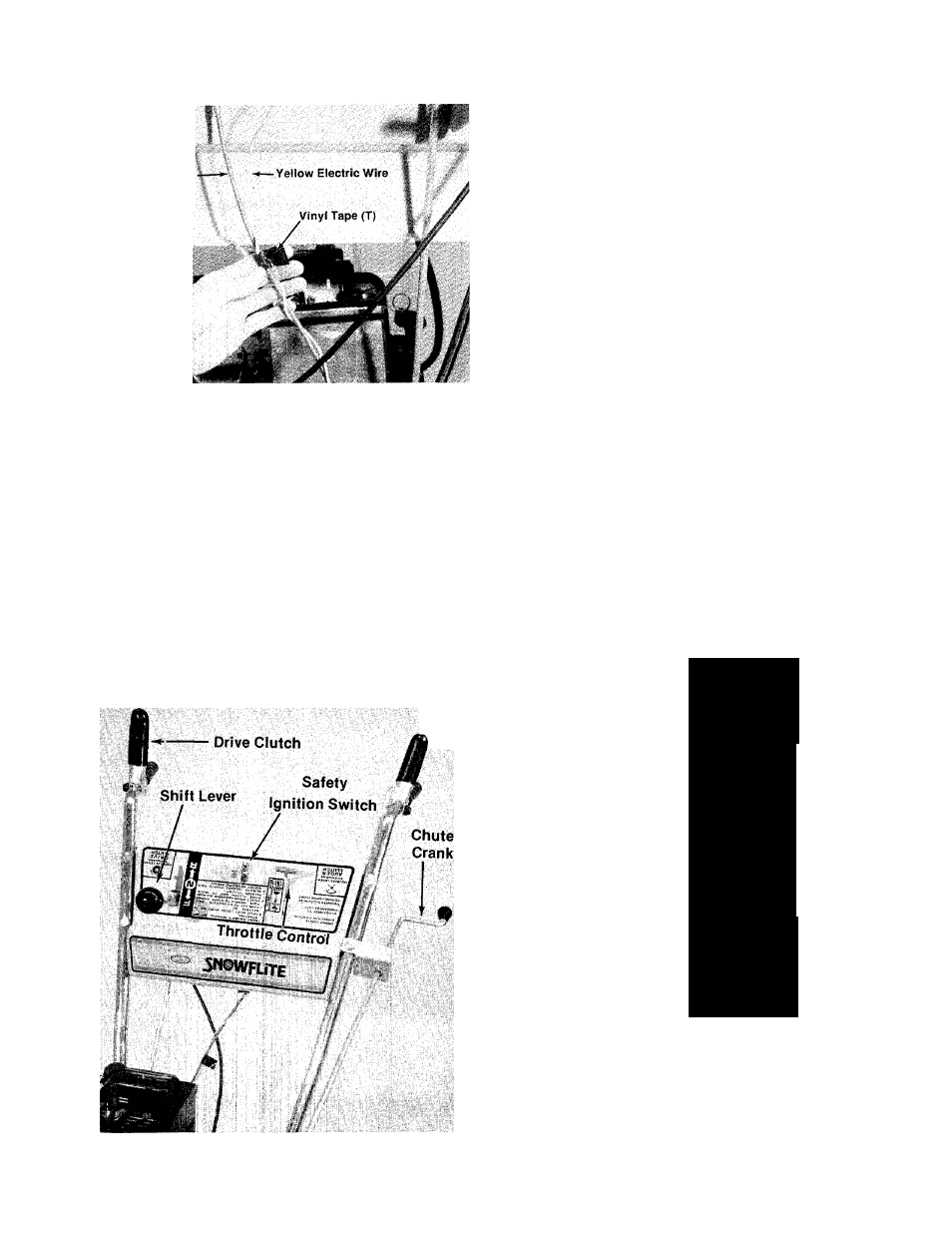

FIGURE 21.

29. Secure yellow electric wire to throttle control

•cable with the vinyl tape (T) provided. See

figure 21.

OPERATION

CONTROLS

Shift Lever (See Figures 22 and 23)

The shift lever is located on the right hand side of
the handle panel. The shift lever may be moved

into forward, neutral or reverse position.

A. Center Position (N) is Neutral.

B. Forward Position (F) is Forward.
C. Rear Position (R) is Reverse.

Auger Clutch

i

FIGURE 22.

F

t

0

1

FIGURE 23.

11
