CAUTION

The snow thrower is shipped with

out gas or oil. See operating section

of this manual after assembly.

NOTE

Reference to right hand or left hand
side of machine are observed from

the operating position.

ASSEMBLY

INSTRUCTIONS

Tools Required for Assembly

9/16” Wrench

1/2” Wrench

7/16” Wrench or

or One Adjustable Wrench

Screwdriver
Hammer

Block of Wood

Snow Thrower

Remove from Carton

1. Remove snow thrower and all parts from the

carton. Make certain that all loose parts and

literature have been removed before the

---- carton is discarded.

Extend throttle control assembly which is

attached to engine at rear of the snow thrower
and place on floor.

CAUTION

Do not bend or kink control wire.

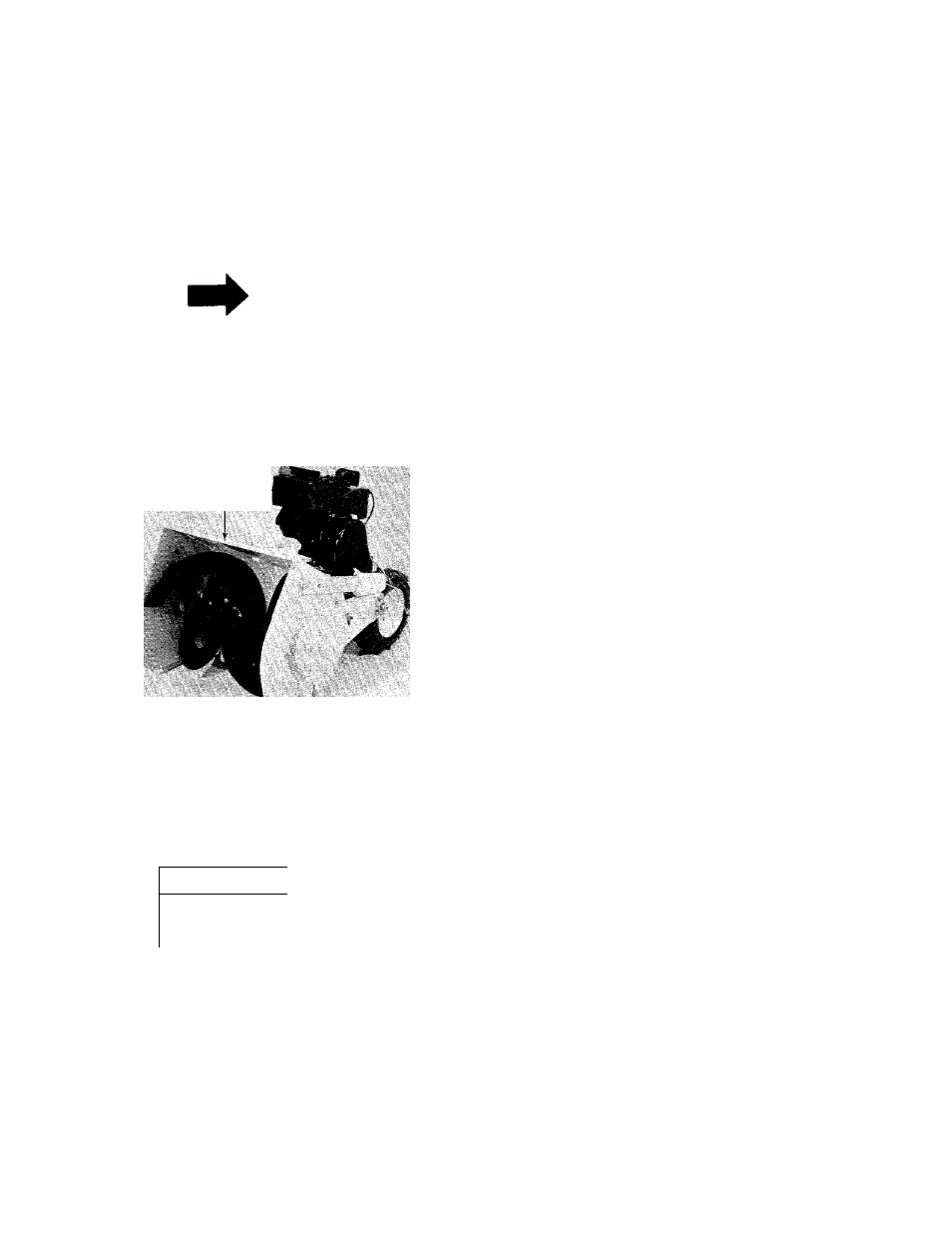

FIGURE 1.

~^lli

Loose

J ■■■ f.

(1)
(1)

Chute- Assombly

Hiindlp

Assembly

(1)

(1) Chute Crank Assembly
(1) Shifting Rod
(1) Clutch Rod Assembly

R.irtr. T.ipnd

Together

FIGURE 2.
