liex Lock Nuts (C) V
Chute Flange
Keeper (B) Beneath Lip *

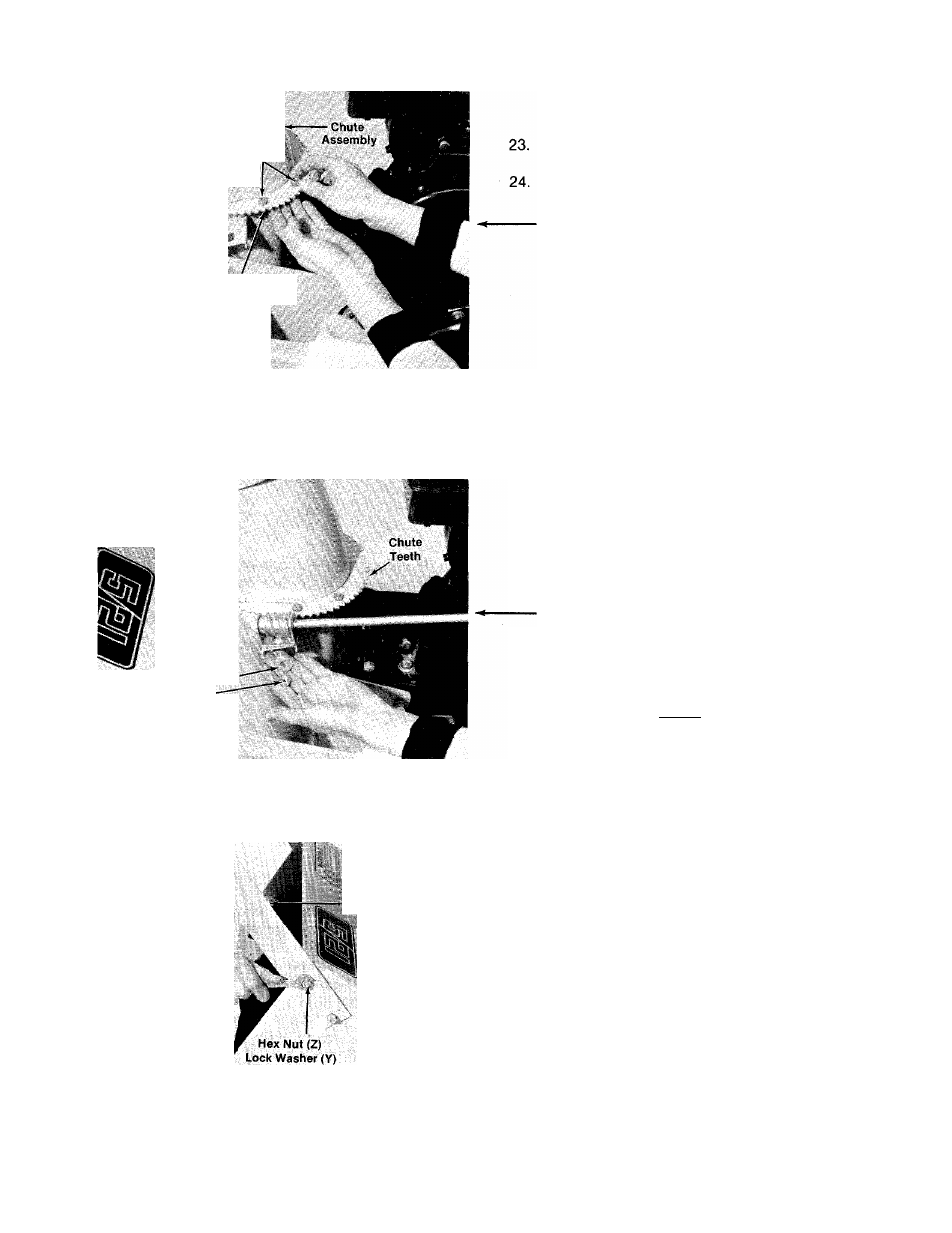

Grease the chute opening.
Place chute assembly over chute opening.
Place chute flange keepers (B) beneath lip of
chute assembly. Secure with hex lock nuts
(C) as shown in figure 18. Tighten with a
7/16” wrench, then back off 1/4 turn to allow
easier movement.
FIGUREIS.
j
Belleville Washer (F)
Hex Nut (G)
FIGURE 19.
25. Grease the teeth on the chute assembly.
26. Place the end of chute crank assembly into
slot provided. Slide worm and bracket on
chute crank assembly into teeth on chute
assembly. Fasten in position with belleville
washer (F) (cupped side up) and hex nut (G).
See figure 19. Tighten finger tight.
27. Turn chute crank to see that chute moves
freely. If adjustment is necessary, slide worm
and bracket in or out. Then tighten hex nut
securely with a|HB|wrench.
'A"
Drift Cutli r
■
\
■
28. Loosen hex nut holding drift cutter to unit.
Pivot into position. Insert carriage bolt (X)
------through snow thrower housing and drift cutter
with head to the inside of housing. Secure
with lock washer (Y) and hex nut (Z). Tighten
securely. See figure 20.
FIGURE 20.
10
