The control handle has three positions:
FORWARD—Push the controi handie down for verticai
operation, push it forward for horizontai operation—
Splitting wedge moves toward the end piate. Controi
handie wiil return to neutral position as soon as han­
dle is released.
NEUTRAL (Middle position)—Spiitting wedge stops in
piace.
REVERSE—Push the control handle upward for ver­
tical operation, push it toward the rear for horizontai
operation—Splitting wedge returns. The control
handle will lock in the reverse position, and wiil
return to neutral automatically when the reverse
stroke is complete.
Splitting
Wedgi
Reservoir
Tank
TO OPERATE LOG SPLITTER:
1. Set throttle at maximum speed.
2. Place the log upright, on top of end plate for verti­
cal operation, and on top of beam for horizontal
operation.
3. Push the control handle in forward position until
the splitting wedge just contacts the log. Release
the control handle.
4.
5.
Step behind the reservoir tank (see figures 13 or
14) and push the control handle in forward posi­
tion until the log is split.
Move the control handle to reverse position to
return the splitting wedge.
A
End Plate

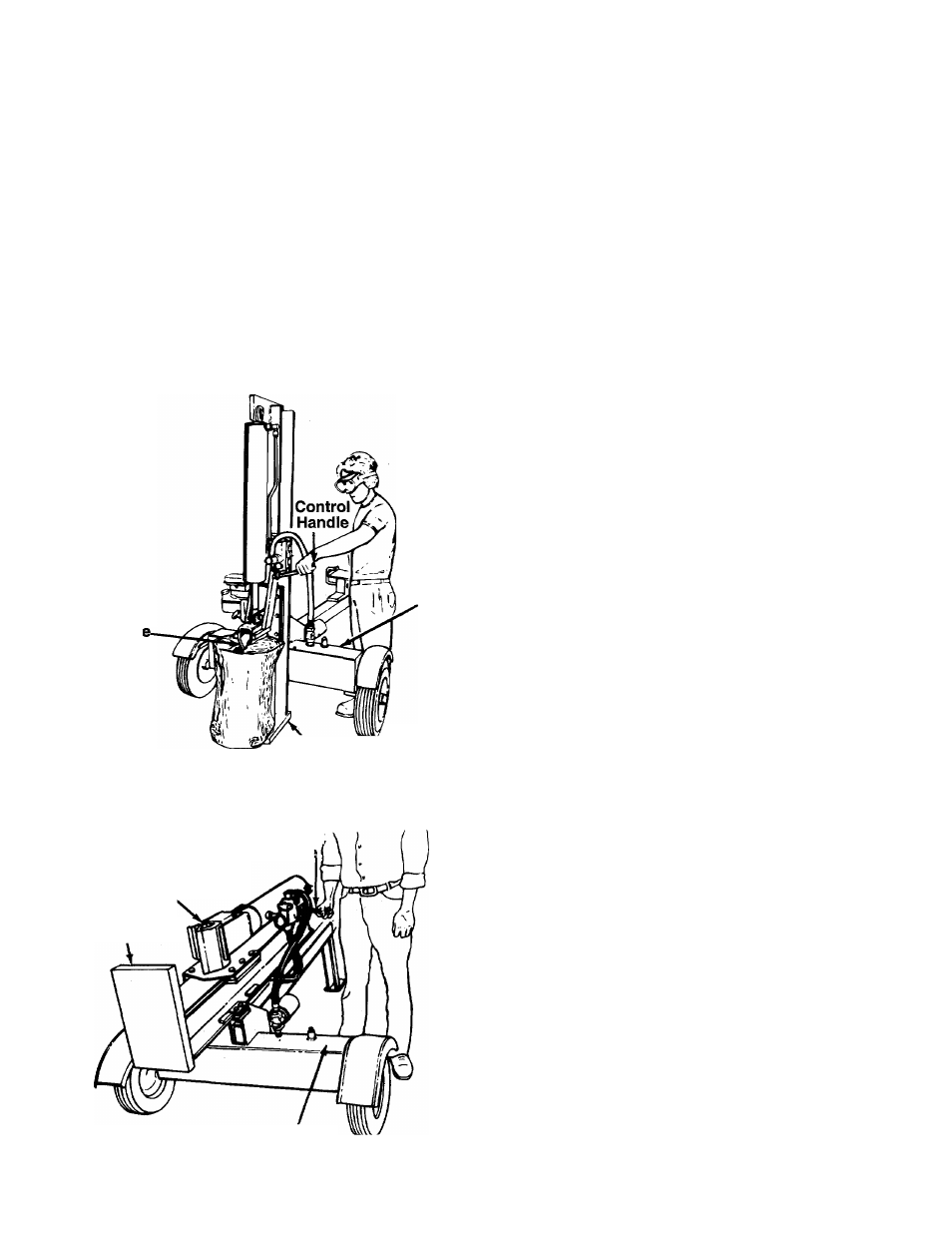

FIGURE 13.—Vertical Position
WARNING: If the fluid becomes exces­
sively hot at any time during operation,
stop the unit and allow the fluid to cool
down. Maximum performance will not be
obtained from your log splitter if the fluid
is too hot. Use extreme caution as con­
tacting hot fluid could result in serious
personal injury.
TO TRANSPORT LOG SPLITTER
1. Lower the beam to its horizontal position. Make
certain the beam is latched securely with the lock­
ing rod.
2. Remove the quick release pin which secures the
jack stand. Support the tongue, and pivot the jack
stand up against the tongue. Secure with the
quick release pin.
3. Attach the hitch to a towing vehicle, making cer­
tain to latch securely. Attach the safety chains to
the towing vehicle.
Control (
Handle
Splitting
Wedge
End Plate
Reservoir Tank
FIGURE 14.—Horizontal Position
ADJUSTMENTS
A
WARNING: Always stop the engine and
disconnect the spark plug wire before
performing any adjustments.
SPLITTING WEDGE
As normal wear occurs, periodically adjust the bolts
on the side of the wedge plate as follows to eliminate
the excess space between the wedge plate and the
beam. See figure 15.
1. Loosen the three hex bolts on top of the wedge
plate (beneath the splitting wedge).
2. Loosen the lock nuts on the two adjustment bolts
on the side of the gib plate, located beneath the
splitting wedge. Turn the adjustment bolts in until
snug, then back them off slowly until the wedge
assembly wiil slide on the beam.
