ASSEMBLY

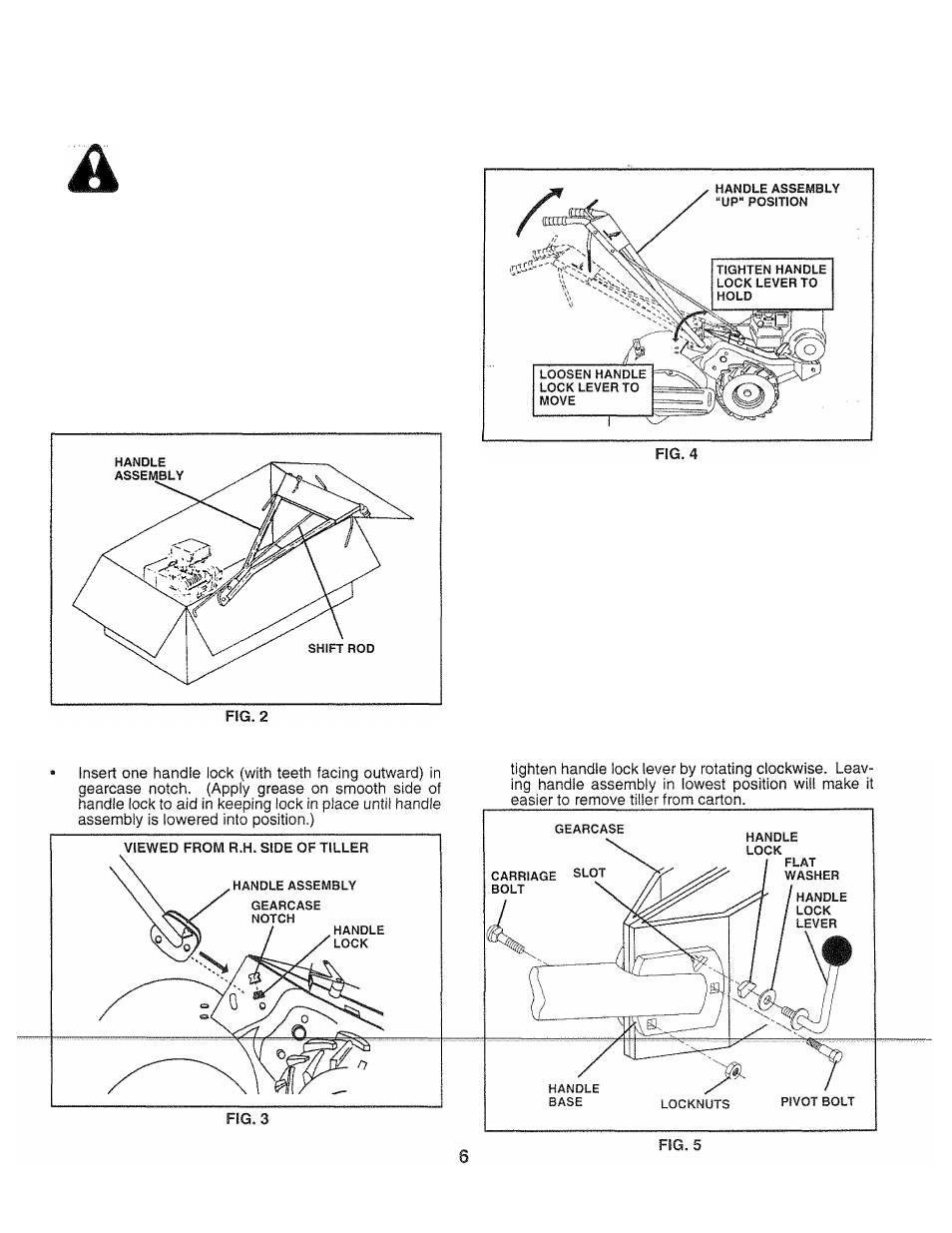

UNPACKING CARTON (See Fig. 2)
CAUTION: Be carefui of exposed
staples when handling or disposing of
cartoning material.
Grasp handle assembly. Hold in “up” position. Be sure
handle lock remains in gearcase notch. Slide handle
assembly inid position.
IMPORTANT; WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLES.
• While holding handle assembly, cut cable ties securing
handle assembly to top frame. Lei handle assembly
rest on tiller.
» Remove top frame of carton.
« Slowly ease handle assembly up and place on top of
carton.
« Cut down right hand front and right hand rear corners
of carton, lay side carton wall down.
® Remove packing material from handle assembly.
INSTALL HANDLE (See Figs. 3, 4, and 5)
Rotate handle assembly down, insert rear carriage bolt
first, with bolt head on L.H. side of tiller and loosely
assemble locknut (See Fig. 5).
Insert pivot bolt in front part of plate and tighten.
Cut down remaining corners of carton and lay panels
flat.
Lower the handle assembly. Tighten nut on carriage
bolt bolt so handle moves with some resistance. This
will allow for easier adjustment.
Place flat washer on threaded end of handle lock lever.
Insert handle lock lever through handle base and
gearcase. Screw in handle lock lever just enough to
hold lever in place.
Insert second handle lock (with teeth inward) in the slot.
of the handle base (just inside of washer).
With handle assembly in lowest position, securely
