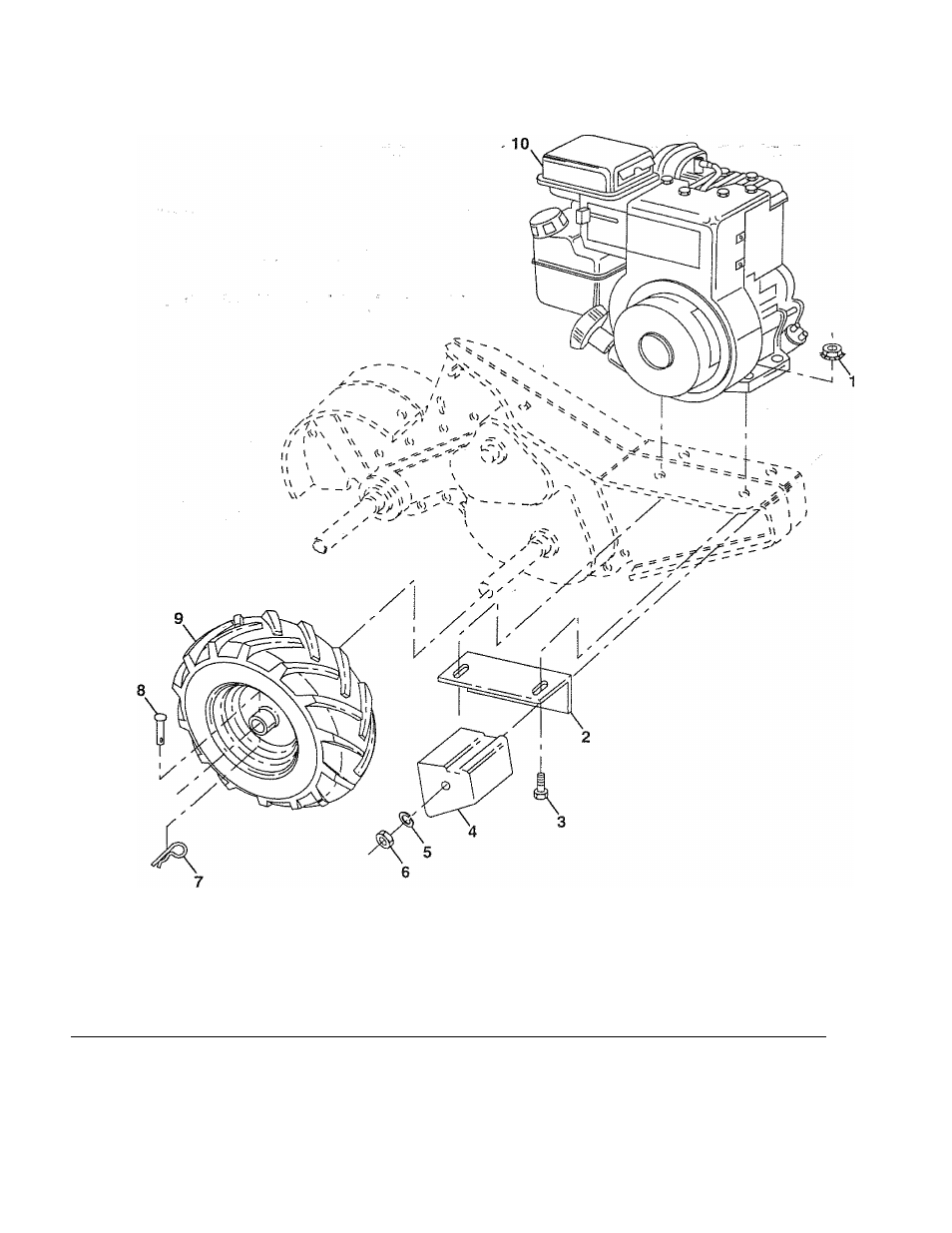

REPAIR PARTS

; TILLER- » yODEL NUMBER HDR500E

MAINFRAME, RÌGHT SiDE

KEY

PART

DESCRIPTION

KEY PART

DESCRIPTION

NO.

NO.

NO. NO.

1

73510500

Nut, Keps 5/16-18

9 102190X

Tire

2

102332X

Bracket, Reinforcement

150750

Rim

3

74760524

Bolt, Hex 5/16-18 X 1-1/2

795R

Tire Valve

4

102173X

Counter Weight, R.H.

10 ..................

Engine, Briggs & Stratton

-reO406GO^

r,bock3/8............................."

ModeiNo;.. T3/2D2...... '..

6

73220600

Nut, Hex 3/8-16

7

4497H

Clip, Hairpin

NOTE; All component dimensions given in U

8

126875X

Rivet, Drilled

1 inch = 25.4 mm
