REPAIR PARTS

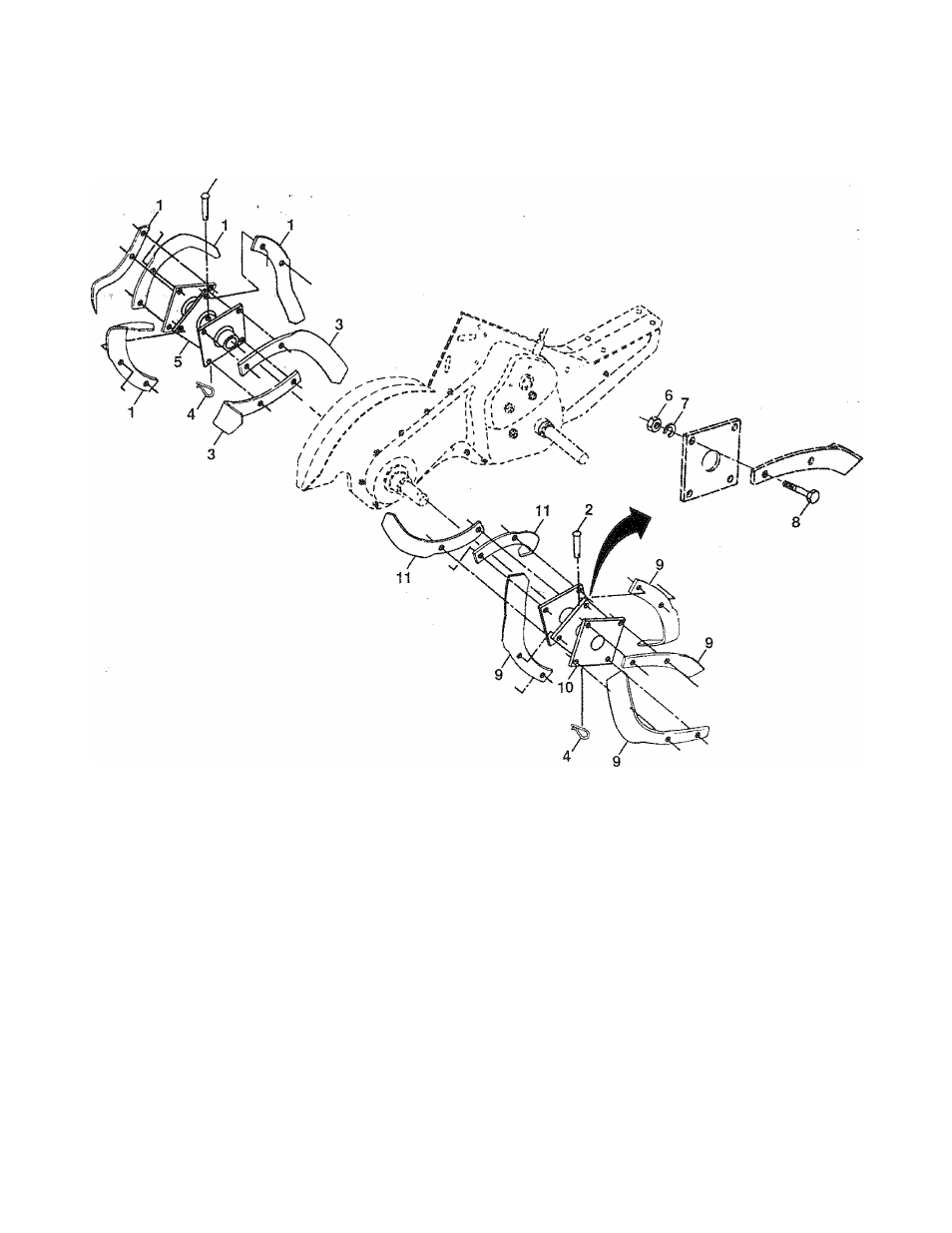

TINE ASSEMBLY

TILLER - »MODEL NUMBER HDR500E

KEY
NO.

PART
NO,

DESCRIPTION

KEY

NO.

PART
NO,

DESCRIPTION

1

4459J

Tine, Outer, L.H.

8

74610616

Bolt, Hex 3/8-24 x 1

2

132673

Clevis Pin

9

4460J

Tine, Outer, R.H.

3

6554J

Tine, Inner, L.H.

10

132728

Assembly, Hub and Plate, R.H.

4
5

3146R

132727

Clip, Hairpin

Assembly, Hub and Plate, L.H.

11

6555J

Tine, Inner, R.H.

6

7

73610600

10040600

Nut, Hex 3/8-24

Washer, Lock 3/8

NOTE: All component dimensions given in U.S. inc

1 inch = 25.4 mm

26
