REPAIR PARTS

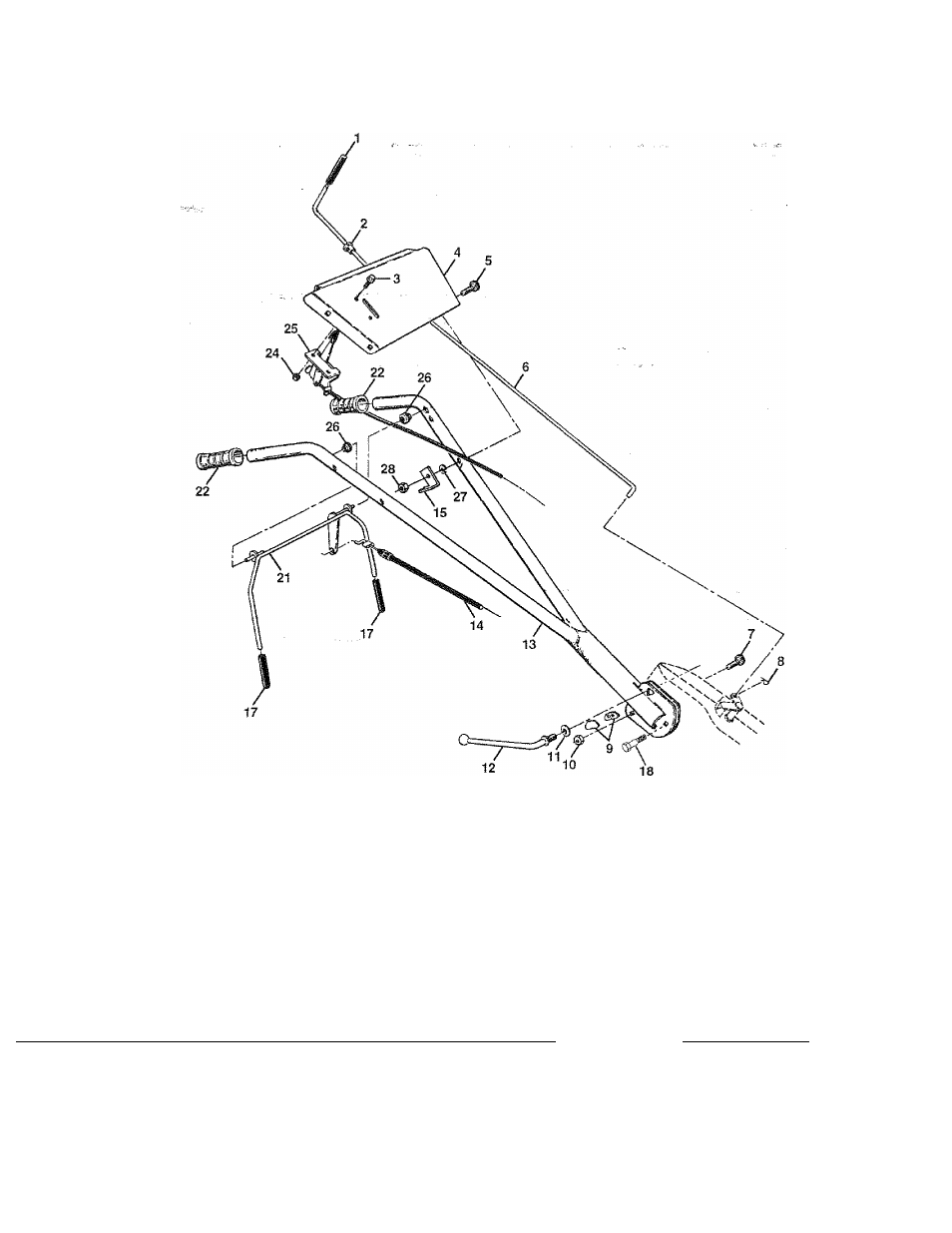

HANDLE ASSEMBLY
TILLER - » f\^ODEL NUMBER HDR500E
KEY
PART
DESCRIPTION
KEY
PART
DESCRIPTION
NO.
NO.
NO.
NO.
1
8389J
Grip, Handle
14
145820
Cable, Clutch
2
121248X
Bushing, Snap
15
145821
Bracket, Clutch Cable
3
71191008
Screw, Pan Hd. #10-24
17
102604X
Grip, Bar Control
4
126949X428
Bracket, Handle
18
150696
Bolt, Pivot
5
72110514
Bolt, Carriage 5/16-18x1-3/4
21
145829
Bar, Controi
6
108281X
Rod, Shift
22
150744
Grip, Handle
7
72110608
Bolt, Carriage 3/8-16 x 1 Gr. 5
24
73731000
Nut, Keps #10-24 UNC
8
4497H
Clip, Hairpin
25
127012X
Control, Throttle
9
109229X
Lock, Handle
26
146480
Grommet, Handle
10
73930600
Nut 3/8-16
27
10040500
Washer, Lock 5/16
11
19131611
Washer 13/32x1 x11 Ga.
28
73800500
Locknut 5/16-18
12
109228X
Lever, Lock, Handle
13
150217
Handle
------ ,,,,-N0XE:,:::,,:A:li,,::CQ:mpO.ne:nt,::::d.imenS.i
1 inch = 25,4 mm
