4.15 REAR WHEEL AND HYDRO DRIVE
When the unit is turned off and the parking brake is
engaged, the unit should not roll, If the unit rolls, the
parking brake should be adjusted.
4.16 ADJUST PARKING BRAKE
1. Hair Pin
2. Clevis Pin
€

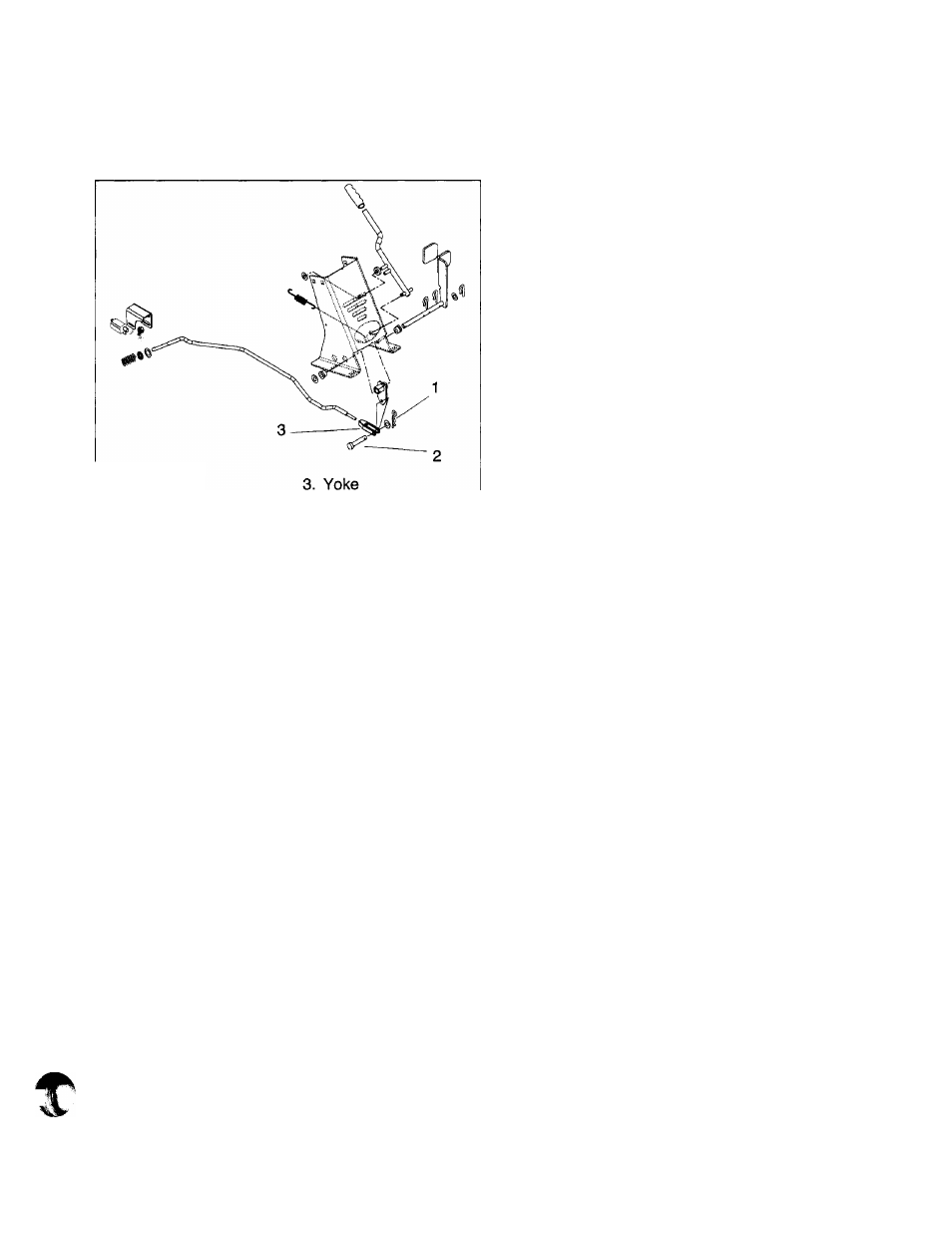

Figure 17
To Adjust Brake: (Figure 17)
1. Puli hair pin.
2. Remove clevis pin and lower the yoke.
3. Screw the yoke further onto the linkage rod.
4. Reattach the yoke and test the brake.
