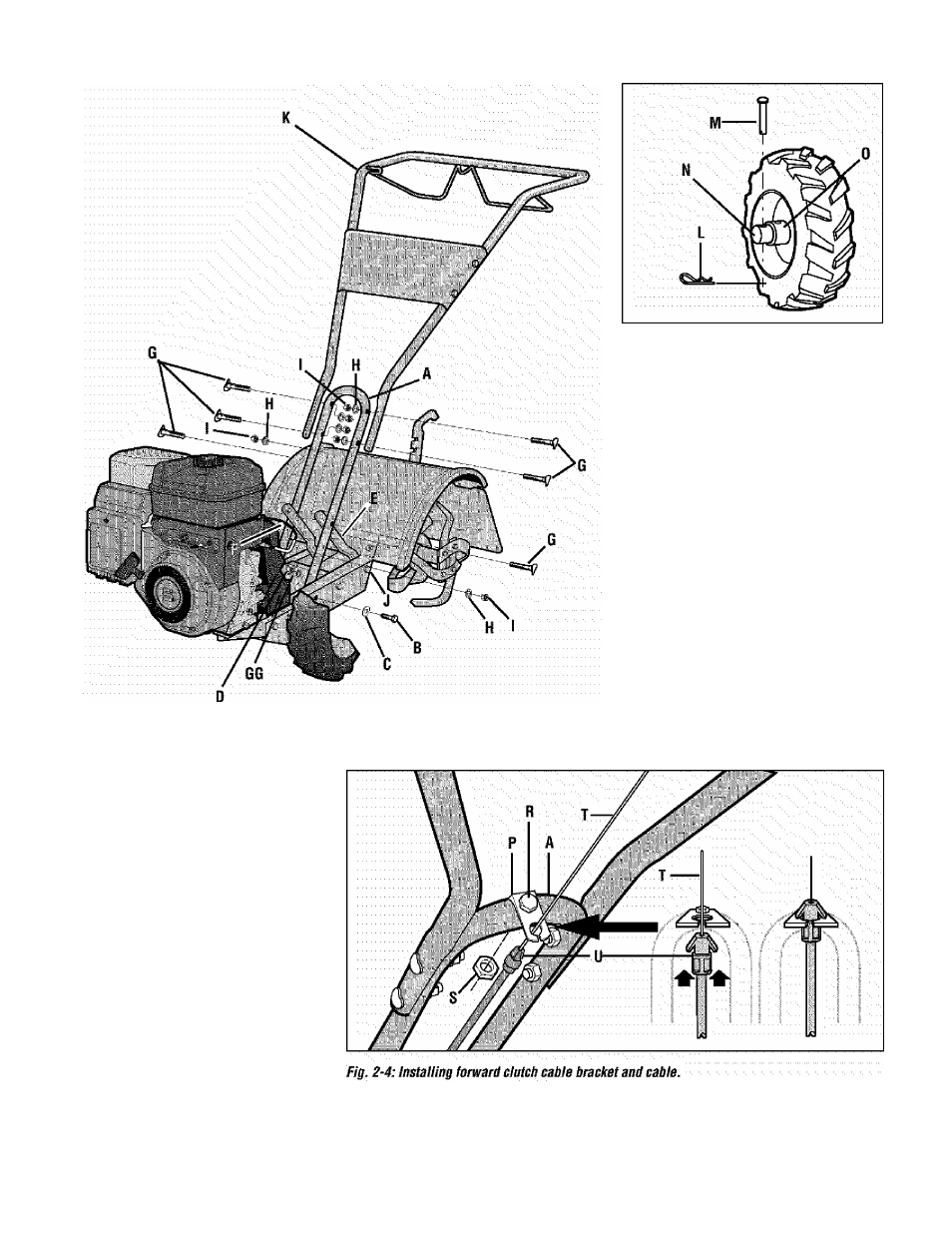

Fig. 2.2: Attach hantllebar (S.SHPMoitelshown).
2. Remove the hairpin cotter (L, Fig. 2-3)
and wheel drive pin (M) from the wheei
hub (0) and wheel shaft (N). v ' ; : : :
3. Slide the wheel fully inward on the wheel
shaft (N, Fig. 2-3). Reinstall the wheel
drive pin (M) through the wheel shaft only
(not through the wheel hub). Secure the
wheel drive pin with the hairpin cotter (L),
pushing the hairpin cotter in as far as It will
go. The wheel should now spin freely
(freewheel) on the wheel shaft. Repeat
with the other wheels : :.
4. Use the handlebar to roll the tiller to a
flat area. :
IMPORTANT: Before starting the engine,
the wheels must be placed in the WHEEL
DRIVE position (pins through wheei hubs
and wheel shaft). This procedure is
described in idthee/ Drive Pins in Section 3.
Fig. 2-3: Wheel In FREEWHEEL position
STEP 4: INSTALL FORWARD
CLUTCH CABLE
1. Attach the forward clutch cable bracket
(P, Fig. 2-4) to the handlebar support (A)
with a 1/4“-20 X1-1/4“ hex hd. screw (R)
and 1/4"-20 hex locknut (S). Tighten se-
c u r e i y . L \ L \ ? : T T T v . ' . L ' ' ' ■ L T L
2. Carefully unwrap the forward clutch ca­
ble (cable without an attached knob) from
its shipping position and slide the thin ca­
ble wire (T, Fig. 2-4) into the slot in the ca­
ble bracket. Push the cable connector (U,
Fig. 2-4) up through the hole in the bracket
until the groove In the connector snaps
into place. : V : : : L
3. Insert the #10-24 x 2" slotted hd. screw
(V, Fig. 2-5) down through the hooked end
of the cable spring (W) until the screw
threads extend through the spring.^
