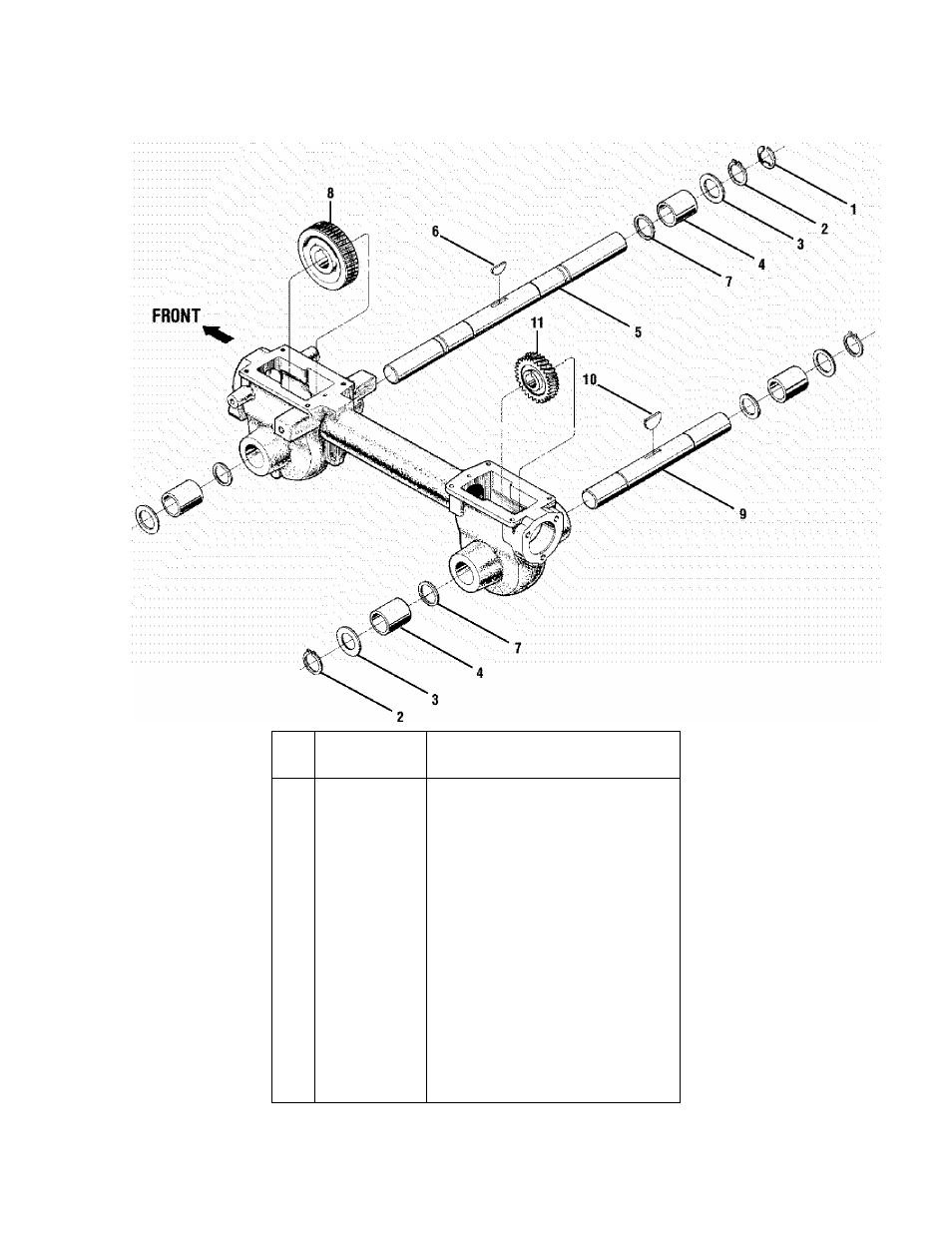

MODELS 63QC, 634F & 634B
(A)
For Model 630C
(B)
For Model 634F
(C)
For Model 634B
REF
NO.
PART NO.
DESCRIPTION
1
GW-9512
Retainer, Snap Ring, “E” Type
2
1909950
Retainer, Snap Ring
3
GW-1166-r
Shim, 0.062" thick
GW-1166-2*
Shim, 0.030" thick
GW-1166-3*
Shim, 0.015" thick
GW-1166-4*
Shim, 0.010" thick
GW-1166-5*
Shim, 0.005" thick
4
GW-1086
Bronze Bushing
5
1916741
Wheei Shaft
(B){C)
GW-55004
Wheei Shaft
(A)
6
GW-9305
Key, Hi-Pro, 1/4x1
7
GW-1132-2
Spacer
8
1904278
Worm Gear, Wheei Shaft
9
1915074
Tilier Shaft
10
GW-1104
Woodruff Key
11
1904279
Worm Gear, Tiller Shaft
Use as required to obtain between .005’’ and .030" allowable end-play.
27
