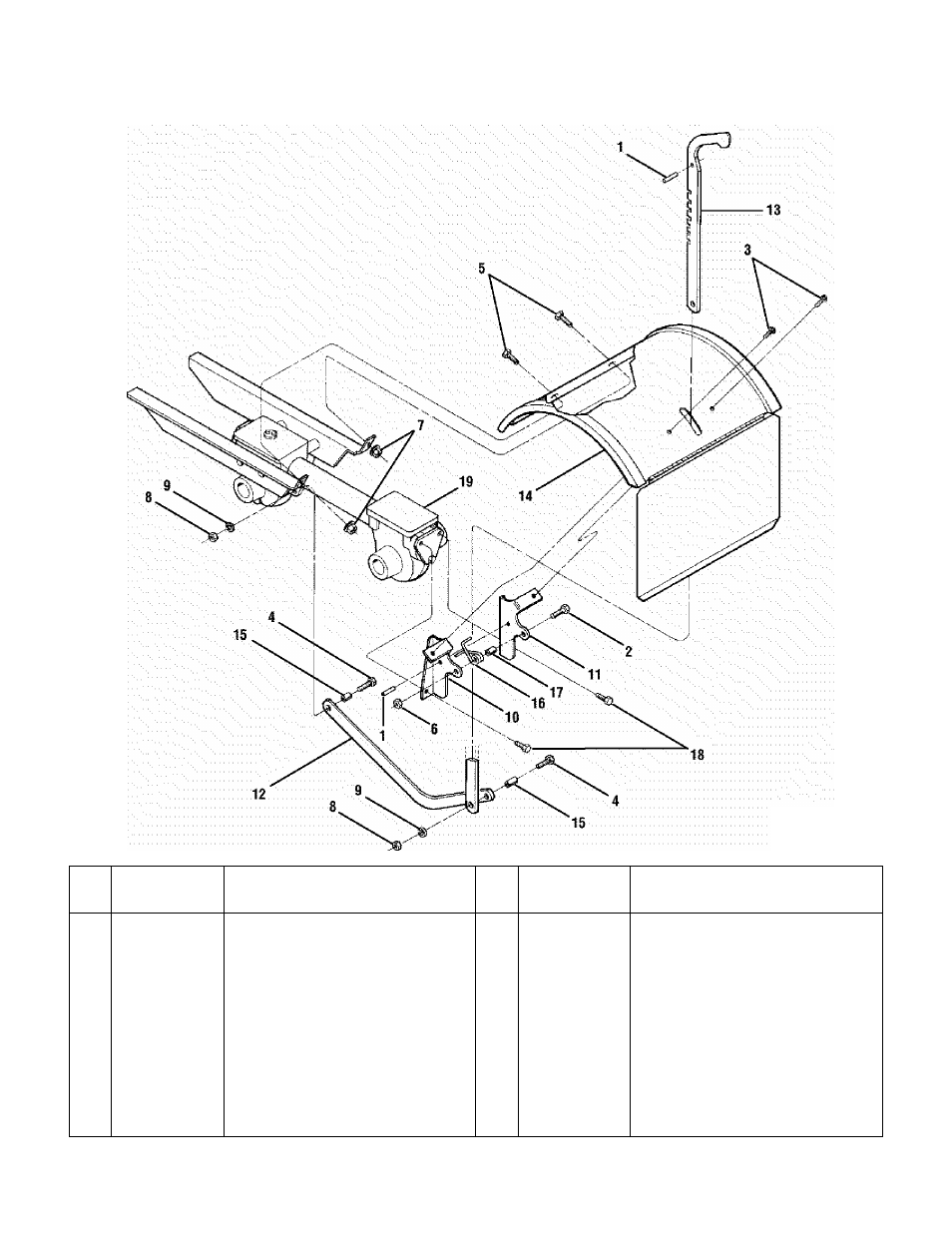

SECTION 6: MODELS 630C, 634F & 634B PARTS LIST
(A)
For Model 630C
(B)
For Model 634F
(C) For Model 634B
REF
NO.
PART NO.
DESCRIPTION
REF
NO.
PART NO.
DESCRIPTION
1
1185469
Spirot Pin
12
GW-55015
Drag Bar
2
710-0597
Flex Fid. Screw, 1/4-20 x 1
13
GW-55018
Depth Regulator Lever
3
710-0599
Screw, Self-Tapping, 1/4-20 x 1/2
14
1916623
Tine Hood Assembly
(B) (C)
4
710-0874
HexHd.Screw,5/16-18x1-1/4
GW-55024
Tine Hood Assembly
(A)
5
710-3039
Hex Hd.Screw, 5/16-18x1/2
15
GW-55088
Bushing
6
712-0291
Hex Lock Nut, 1/4-20
16
GW-9384
Spring, Depth Regulator
7
712-3004A
Hex Flange Lock Nut, 5/16-18
17
GW-9534
Spacer
8
712-3009
Hex Nut, 5/16-18
18
1186331
Hex Hd. Flange Screw, 5/16-18x1
9
736-0119
Lock Washer, 5/16
19
618-04000
Transmission Assembly
(B)(C)
10
11
GW-55013-1
GW-55013-2
Hood Bracket, Left Hand
Hood Bracket, Right Hand
618-04001
Transmission Assembly
(A)
