A WARNING
KEEP AWAY FROM ROTATING TINEG.
ROTATING TINES WILL CAUSE INJURY.
Stopping the Engine and Tiiler
1. To stop the wheels and tines, release the
Forward Clutch Bail (all models) or the Re­
verse Clutch Control (Models 634F and
634B) — whichever control Is in use.
2. To stop the engine, put the ignition
switch and/or the throttle control lever in
the “OFF" or “STOP" position.
OPERATING THE TILLER
The following operating instructions pro­
vide guidelines to using your tiller effec­
tively and safely. Be sure to read Tilling
Tips & Techniques in this Section before
actually putting the tines into the soil.
NOTE: This is a traditional “Standard-Ro-
tating-Tine” (SRT) tiiler with forward ro­
tating tines, it operates completely
differently from “Counter-Rotating-Tine"
(CRT) tillers or from front-tine tillers.
1. Follow the Pre-Start Checklist at the
beginning of this Section. Be sure that the
wheels are in the WHEEL DRIVE position.
2. Move the Depth Regulator Lever ail the
way down, so that the tines clear the
ground. Use this position when practicing
with the tiller and when traveling between
tilling sites. Before actually tilling, move
the lever to the desired depth setting (see
Tilling Tips & Techniques).
3. Start engine and allow it to warm up.
Then put throttle in “FAST” setting.
4. For forward motm of the wheels and
tines:
(a) Pull Forward Clutch Bail (Fig. 4-1) up
against handlebar. Release bail to stop for­
ward motion of wheels and tines.
(b) When tilling, relax and let the wheels
pull the unit while the tines dig. Walk be­
hind and a little to one side of the unit. Use
one hand, yet keep a light—-but secure—
grip on the handlebar (while keeping your
arm loose). See Fig. 4-2. Let the unit
move at its own pace and do not push
down on the handlebars to try and force
the tines to dig deeper—this takes weight
off the wheels, reduces traction, and caus­
es the tines to try and propel the tiller.
WARNING: Do not push
down on the handlebars to try
to make the tiller till more
deeply. This prevents the
wheels from holding the tiller
back and can allow the tines to
rapidly propel the tiller forward,
which could result in loss of
control, property damage, or
personal injury.
5. For reverse motion of the wheels and
tines (Models 634F/634B only):
(a) Look behind and exercise caution when
operating in reverse. Do not till while In
reverse.
(b) Stop all forward motion. Lift handle­
bar with one hand until tines are off the
ground and then pull Reverse Clutch Con­
trol knob out (see Fig 4-3) To stop revers­
ing, let go of Reverse Clutch Control knoo.
A
(b) Swing the handlebar to the left so the
right wheel takes a “step" backward. Next
swing the handlebar to the right so the left
wheel “steps” backward. Repeat as needed.
(c) If longer distances need to be covered
in reverse, shut off the engine, then place
the two wheels in FREEWHEEL
7. To Turn the Tiller Around:
(a) Practice turning the tiller in a level,
open area. Be very careful to keep your
feet and legs away from the tines.
(b) To begin a turn, lift the handlebars until
the tines are out of the ground and the engine
and tines are balanced over the wheels (Fig.
4-4).
(c) With tiller balanced, push sideways on
handlebar to steer in direction of turn (Fig.
4-5). After turning, slowly lower tines into
soil to resume tilling.

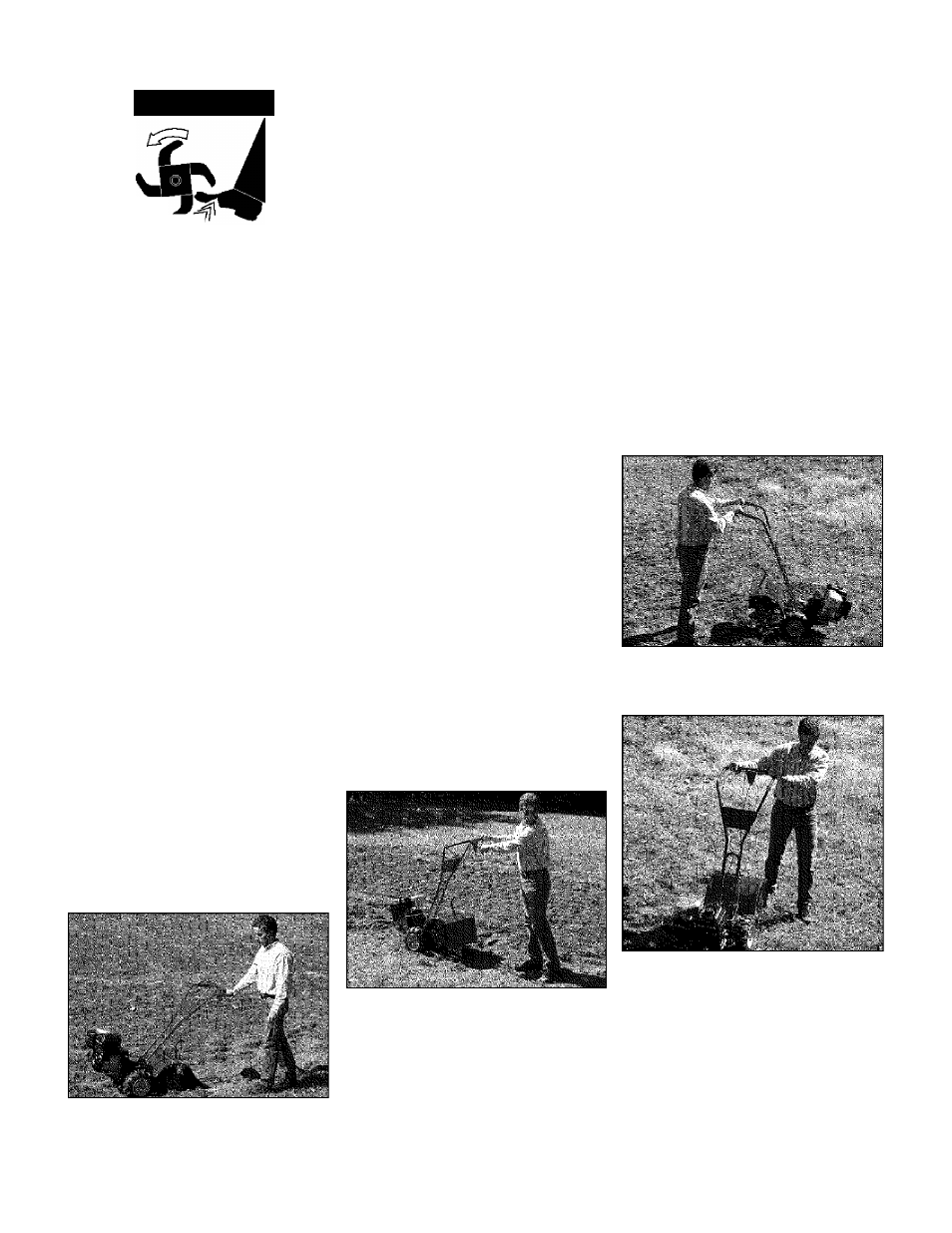

Fig. 4-4: To begin turn, Hit handiebars until
tines are out of ground and unit is balanced.
Fig. 4-2: Use one band to guide tiller when
moving forward.
..........................................
Fig. 4-5; With tines out of ground, push han­
dlebars sideways to turn tiller. .....................
Fig. 4-3: Raise tines off ground and look Stopping the Tiller and Engine
behind when moving in reverse. ........ ........... jq g^gp ;^f^gg|g (¡pgg^ release
6. TO move the Model 630C in reverse lor H* f»™" C“* fall
short distances: S?' I““".®'® “''f ““
(a) Release forward Clutch Bail. Then lift „ ^ * ^k ■ * *k ■
handlebar until tines are off the nround
^ ■ switch andDr the throttle control lever in
the “OFF” or “STOP” position.
