Models 12214 and 12193
PARTS LIST

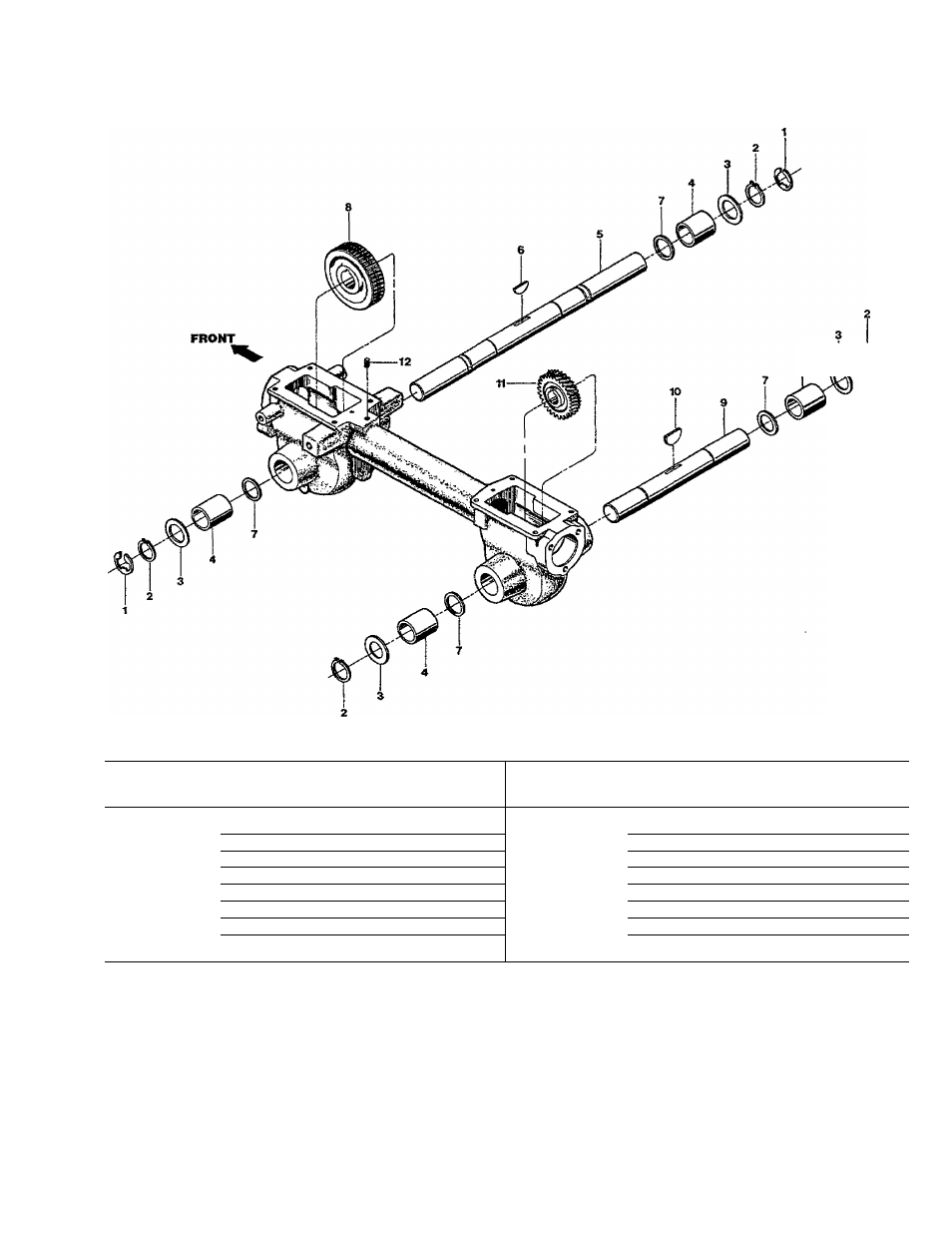

WHEEL AND TILLER SHAFT ASSEMBLIES
I
REF.
No. PART
No. DESCRIPTION QTY.
REF.
No.
PART
No. DESCRIPTION QTY.
1 9512 Retainer, Snap Ring, “E” Type.... 2 5 1916741 Wheel Shaft.......................... 1
2 9511 Retainer, Snap Ring.................. .... 4 6 9305 Hi-Pro Key, 1/4x1.................. 1
3 1166-1 Shim, 0.062” Thick.................... .... A/R 7 1132-2 Spacer.................................. 4
1166-2 Shim, 0.030” Thick.................... .... A/R 8 1904278 Worm Gear, Wheel Shaft........ 1
1166-3 Shim, 0.015” Thick.................... .... A/R 9 1915074 Tiller Shaft............................ ..... 1
1166-4 Shim, 0.010” Thick.................... .... A/R 10 1104 Woodruff Key........................ 1
1166-5 Shim, 0.005” Thick.................... .... A/R 11 1916542 Worm Gear............................ 1
4 1086 Bushing. Bronze........................ 4
A/R-As Required
