Models 12214 and 12193
PARTS LIST

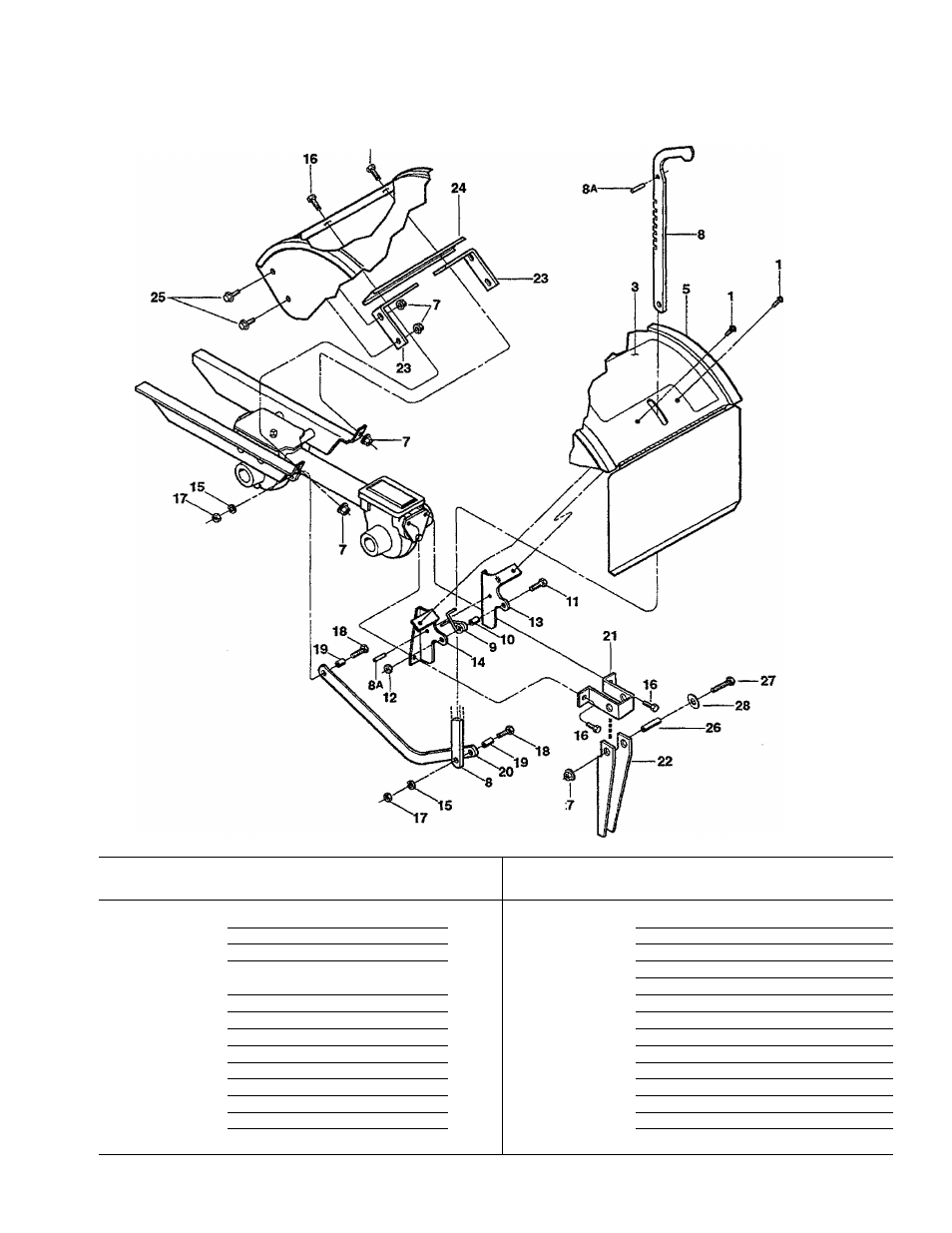

TINE HOOD, DEPTH REGULATOR LEVER AND DRAG STAKE
16
REF.
No. PART
No. DESCRIPTION ÛTY.
REF.
No. PART
No. DESCRIPTION QTY
1 9552 Range Screw, Self-Tapping............ 16 1186331 Flange Hd. Screw, 5/16-18x1...... .... 4
1/4-20x1/2................................ 2 17 1186230 Hex Nut, 5/16-18........................ .... 2
3 1917536 Decal, Hood.................................. 1 18 1100808 Hex Hd. Screw, 5/16-18x1-1/4.... .... 2
5 1917120 Tine Hood (incl. tine flap and Ref. 3). 1 19 55088 Bushing..................................... .... 2
7 1186391 Range Lock Nut, 5/16-18............... 9 20 1916121001 Drag Bar.................................... .... 1
8 1916118001 Depth Regulator Lever................... 1 21 1916569001 Bracket, Stop............................. .... 1
8A 9308 Spiro! Pin...................................... 2 22 1916570001 Reverse Arm (Drag Stake)............... 1
g 9384 Spring, Depth Regulator................ 1 23 1916708001 Bracket, Hood Support................ .... 2
10 9534 Spacer............. ............................ 1 24 1916707001 Bracket, Support Channel............ .... 1
11 1100069 Hex Hd. Screw, 1/4-20 x 1............. 1 25 1186328 Hex Hd. Screw, 5/16-18 x 5/8..... .... 6
12 9811 Hex Lock Nut, 1/4-20..................... 1 26 1916771 Spacer....................................... .... 1
13 1916119001 Hood Bracket, Right Hand.............. 1 27 1111607 Hex Hd. Screw, 5/16-18 x 2-1/4.. .... 1
14 1916120001 Hood Bracket, Left Hand................ 1 28 1107382 Washer, 5/161.D........................ .... 1
15 1100242 Lockwasher, 5/16.......................... 2
