PARTS LIST
IViodels 12214 and 12193

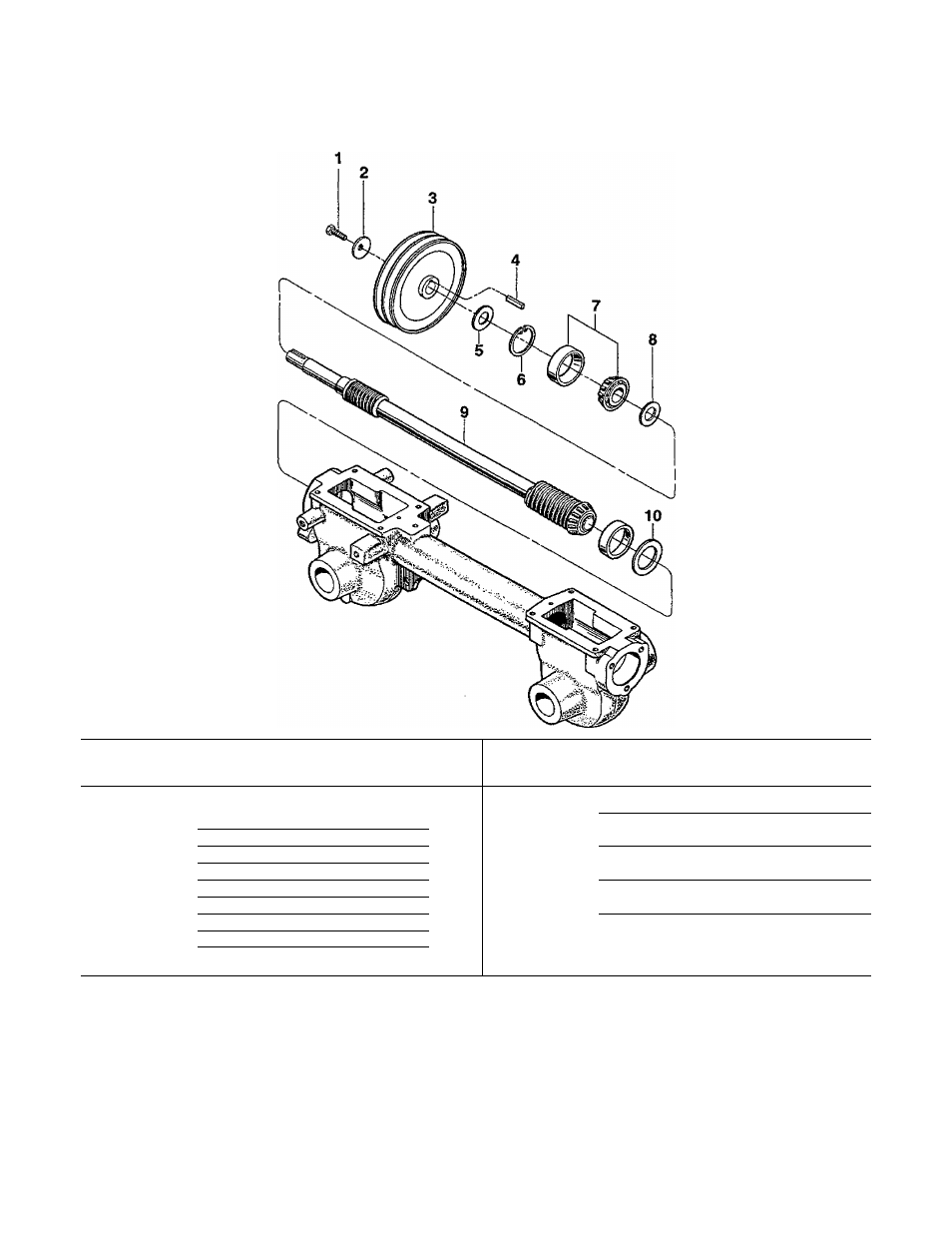

DRIVE SHAFT ASSEMBLY
REF.
No.
PART
No. DESCRIPTION QTY.
REF.
No. PART
No. DESCRIPTION QTY
1 1100005 Screw, Hex Hd., 5/16-24 x 1, 10 1224-1 Shim, Rear Bearing Cap, .010“ thick... .. A/R
Grade 5..................................... 1 1224-2 Shim, same as above, except
2 9944 Belleville Washer............................ 1 .030" thick................................. .. A/R
3 1916532 Transmission Pulley, Double Groove.... 1 1224-3 Shim, same as above, except
4 9301 Key, 3/16x1................................... .005" thick................................. .. A/R
5 50027 Support Washer, Front.................... 1 1224-4 Shim, Same as above except
6 9517 Sneq) Ring..................................... 1 .062" thick................................ .. A/R
7 1714 Bearing, Tapered Roller {with race). 2 1325C Shim Set (Incl. the following shims;
8 50043 Support Washer, Rear..................... 1 two #1224-1, two #1224-2,
9 1916936 Drive Shaft Assembly...................... 1 one #1224-3 and one #1224-4). .. A/R
A/R - As Required
