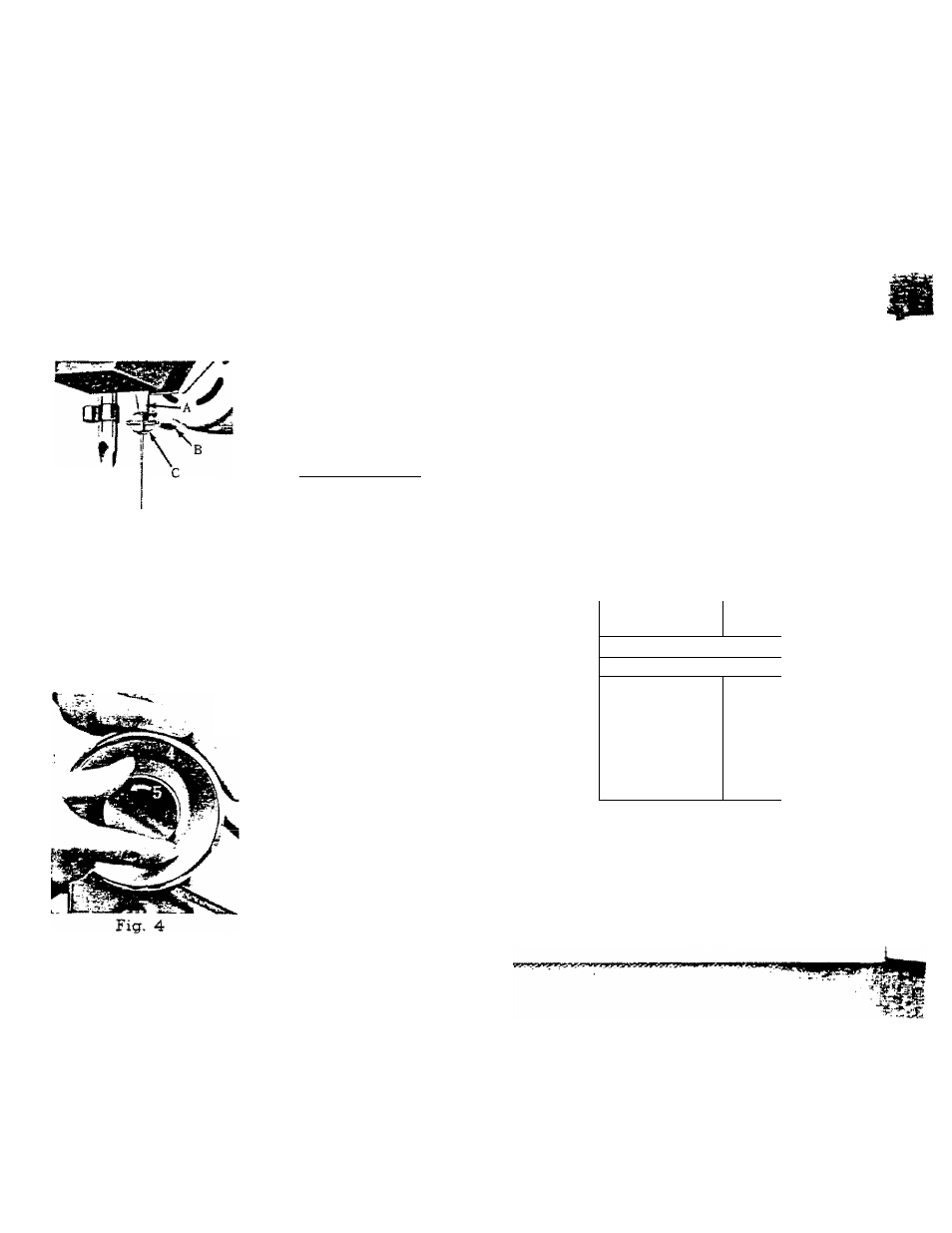

Fig. 3

SETTING THE NEEDLE

See Fig. 3. Raise the needle bar A to its

highest point, turning wheel toward you by hand.

Then loosen the needle clamp screw B and

the needle can be inserted into clamp C. place
needle (Hat side to right) in the needle clamp

qrqove

and push it upward as tar as it will go into the SIDE

needle clamp hole, tightening the needle clamp

screw sectirely with a screw driver.

After changing neadle make on© complete revolution

of balance wheel by hand to be sure the needis is in the
correct position.

HOW TO WIND THE BOBBIN

FLAT

'SURFACED

SIDE

Disengage the hand wheel (4, Fig. 4) from the stitching

mechanism by turning the clutch 5 toward you or counterclock-

Place a spool

of thread on one of the spool pins, lead

' thread through the upper thread guides

on the arm, eind down through the

tension disc (B, Fig. 5) at the base of
the machine. Run end of thread through

a hole in the bobbin edge and place

bobbin C on spindle of bobbin winder

E, fitting the notch on bobbin over small
pin on spindle. Push bobbin winder

pulley against hand wheel. Hold thread

end loosely and start machine slowly.

Bobbin will stop winding when it is filled. Turn clutch away from

you until sewing mechanism is again engaged so that needle moves
when you turn the hand wheel.

Break off loose thread end used to start the winding.

-^-^-1

CjinjgBiiii ......... M

Fig. 5
