26
4. Clean the shuttle race, the shuttle, and shuttle race cover by removing all threads, lint, etc.
5. Apply a drop of oil with finger tip to outer edge of shuttle.
When the cleaning has been completed, proceed as follows to replace the shuttle assembly:
1. Turn the balance wheel until the needle reaches its highest position.
2
.
3.
4.
5.
Place shuttle body, (D), against shuttle driver and adjust into position.
Replace shuttle race cover,..(C), fitting pin at lower edge into notch, and lock into
position with shuttle race cover clamps, (B), making certain the clamps have been
snapped securely into position.
Put bobbin into the bobbin case.
Put the bobbin case into the shuttle race, fitting tongue into notch E of race cover.
M 6
? 9 ^
E
12
7 8
10
13 ^ 14

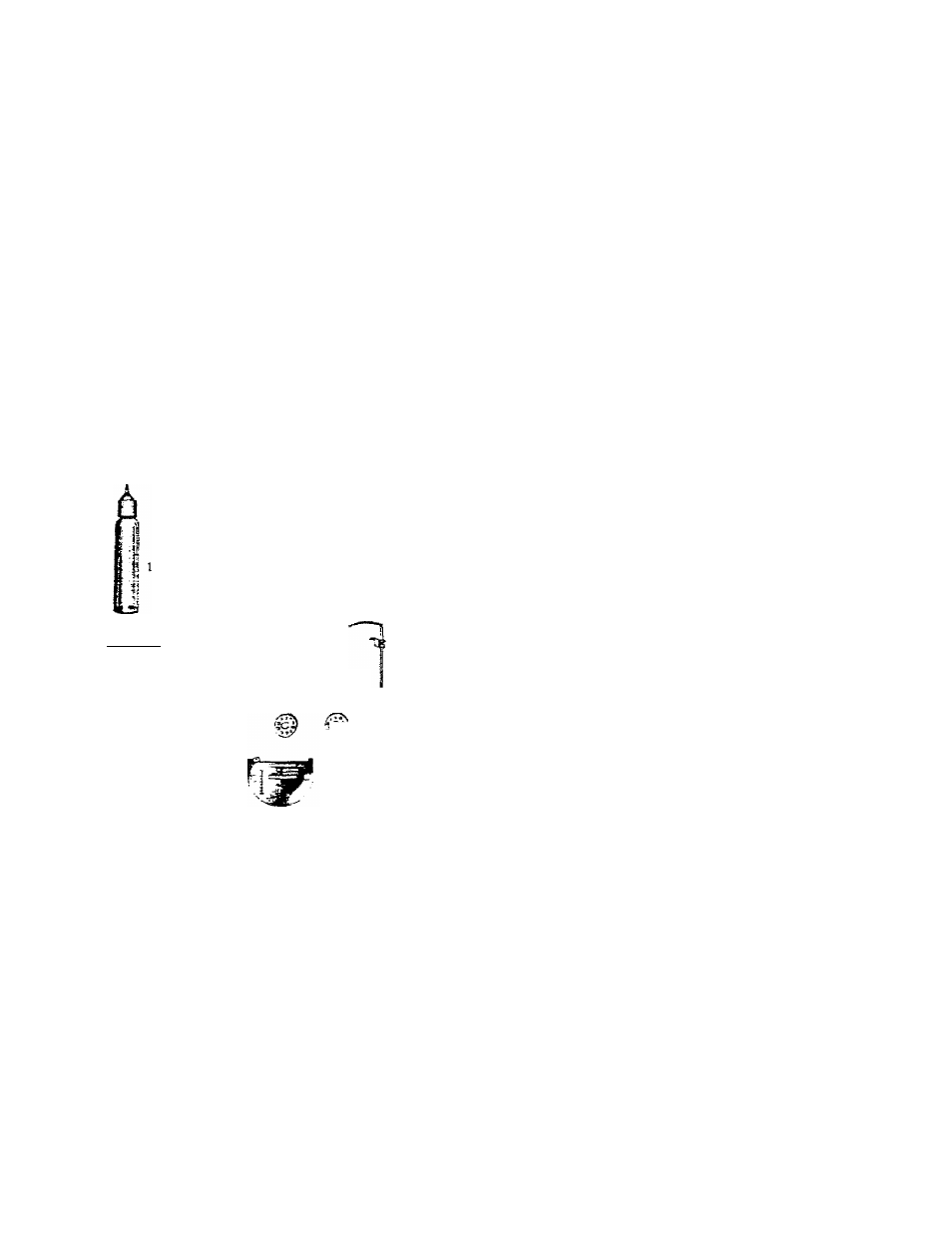

ACCESSORIES
1
2
3
4
5
6
7
8
9
Plastic Oiler 10
Large Screw Driver 11
Small Screw Driver
Package of needles ' 12
Cloth Guide
Buttonhole Foot 13
Small Hemmer Foot
Quilter Guide 14
Thumb Screw
Bobbins (3)
Felt Washers
(for spool pins)
Presser Foot for
Straight Sewing
Needle Plate for
Straight Sewing
Button Sewing Foot
