Fig. 4

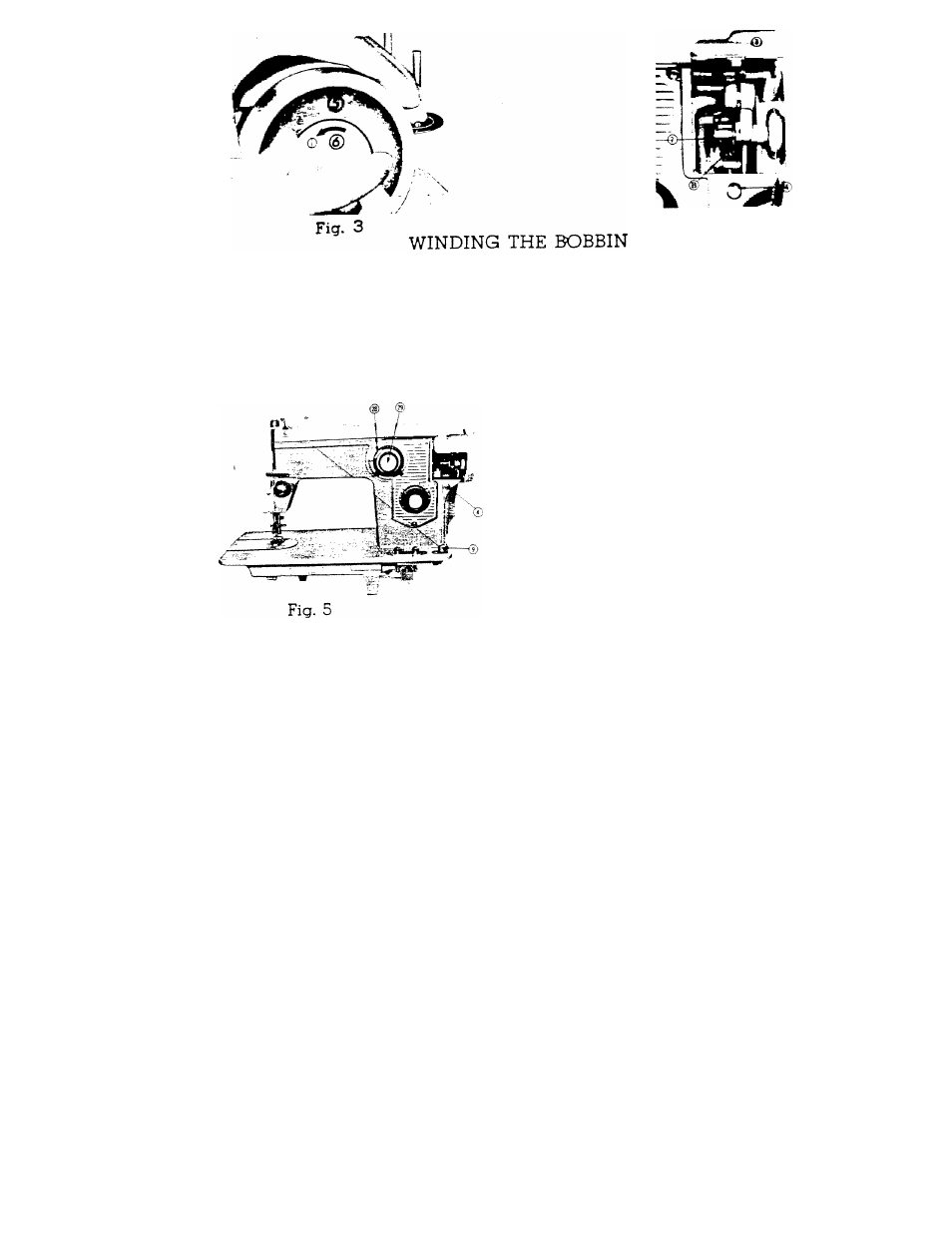

Disengage hand wheel 5, Fig. 3, from the stitching mechanism by turning clutch
6
toward
you or counterclockwise.
Push latch 4 (Fig. 4) to spring open cover 3
Place a spool of thread on one of the spool pins.
and down through tension disc 9, Fig. 5, at base of machine. Run end of thread
of the recessed winder
Lead thread through the upper thread
guide on arm
through a hole in bobbin edge (left flange
and from inside out) and place bobbin B
on spindle of bobbin winder 7, Fig. 4, fitting
the notch bobbin over small pin on spin
dle.
Push
bobbin
winder
against
hand
wheel. Hold thread end loosely and start
machine slowly.
Bobbin will stop winding when it is
filled. Turn clutch away from you until
sewing
mechanism
is
again
engaged
so
that needle moves when you turn the hand
wheel.
Break off loose thread end used to
start
the
winding
and
thread
bobbin as
stated on Page
6
.
