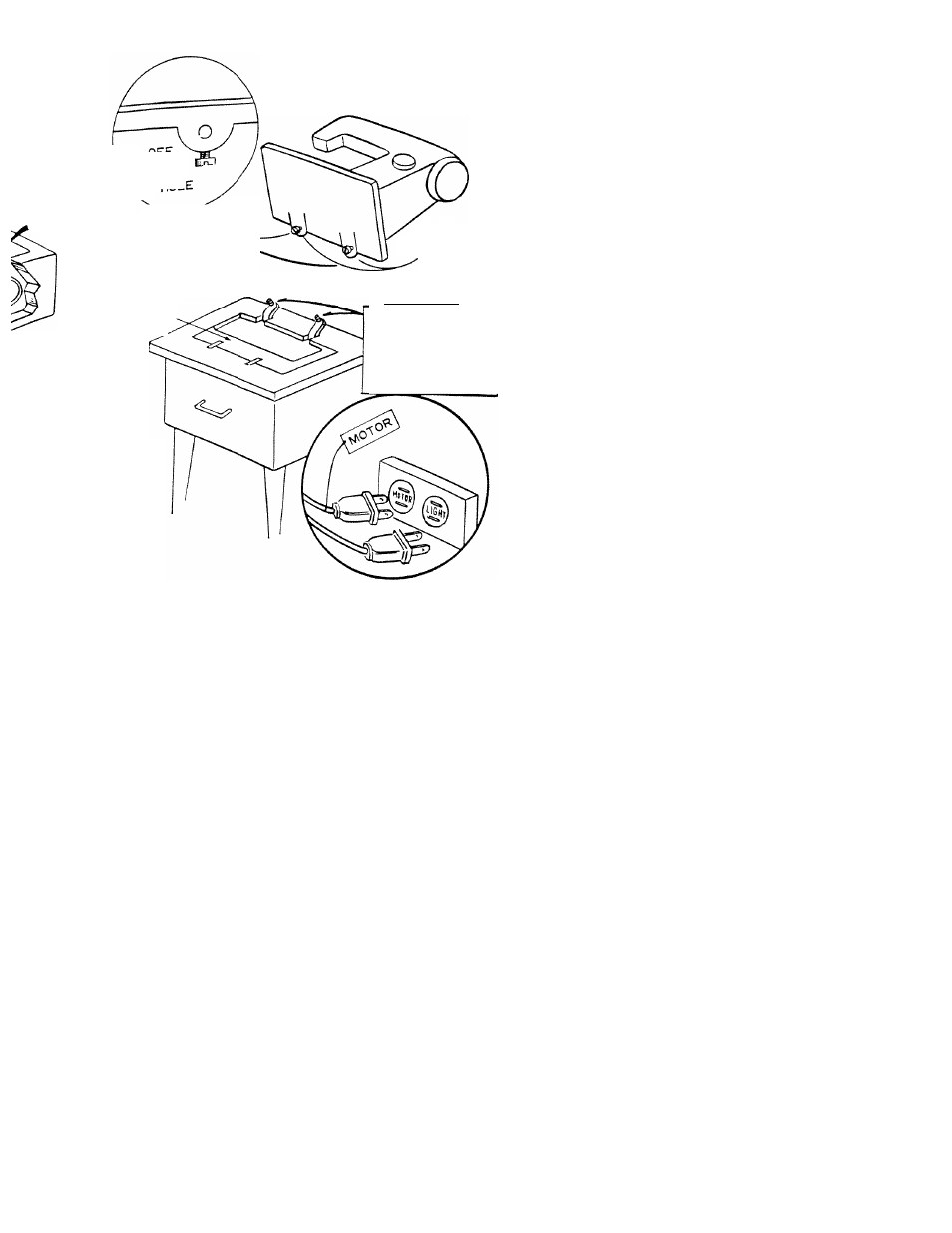

INSTALLING SEWING HEAD IN CABINET
^sfr
s'iREW
TO
clear
HINGE
OTOR-LIGH
t
plugs
^
lift
flap
TO LOWER
HEAD INTO
CABINET
IGHT
HEAD HINGE
HOLES
HEAD HINGES
t««T: STRETCH
A RUBBER BAND
ACROSS THE TWO
HINQES TO HELP
HOLD THEM UP
RIGHT WHILE
MOUNTING THE
SEWING HEAD.
2
.
3.
Loosen both head hinge set screws
until head hinge hole is clear.
Tilt head hinge
fingers
up and back
as far as they will go.
Carefully slip head onto head hinges
- - making sure
fingers
are inserted
as far as they can go into head hinge
holes.
4.
Allow the head to rest in its tilted-
back position.
5.
Tighten both set screws securely with
screw driver.
6.
Plug electrical leads into sockets lo
cated inside cabinet. Cord identified
with "motor" tag must be plugged
into
socket
marked
"motor".
Un
tagged cord goes to "light" socket.
